R 53 SVW (961410058-00) - Husqvarna Walk-Behind Mower (2006-01) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

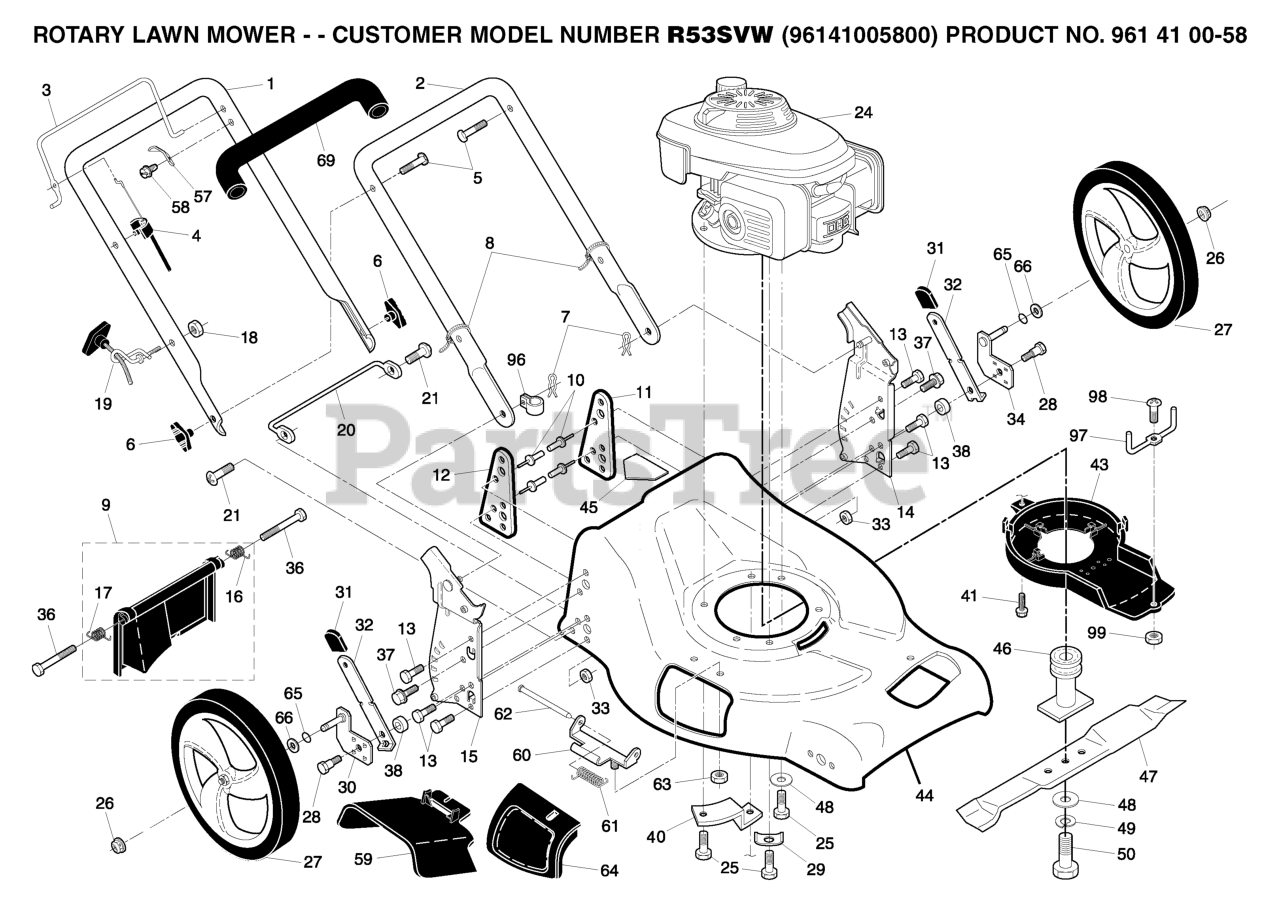

FRAME & ENGINE Parts Diagram

  • Title

- -

Husqvarna 532400120

NEEDS DESCRIPTION

$

$

Currently unavailable

58

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

6

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

21

Husqvarna 532054583

SCREW

$

$

Not available

- -

Husqvarna 532400121

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 532180479

KIT.DOOR.RR.ASM.21.FWGD

$40.99

$

Usually ships in 3-10 days

0

38

Husqvarna 819112206

WASHER.FLAT.34X1.38X22

$5.99

$

In Stock, Qty 5

0

62

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

59

Husqvarna 532185582

DEFLECTOR.CLIPPIN.21.FGD
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532182538

SUPPORT BRACKET LH

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532402572

ARM.ASM.AXLE.H/W.LR.BZ

$

$

Not available

10

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532197019

BAIL.DSTRT.FL.AW.CREAS.ORANGE

$

$

Not available

24

000000000

Note: HONDA GCV160-AOS3H2 FOR PARTS & SERVICE 1-800-426-7701

$

$

Not available

28

Husqvarna 532160828

SHOULDER BOLT

$

$

Not available

63

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 532153418

LOWER HANDLE
(Superseded to 532175245)

$

$

Not available

57

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

61

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

97

Husqvarna 532197162

KEEPER.BELT.FGD

$

$

Not available

44

Husqvarna 532400727

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 532196036

BRKT.ASM.HNDL.21FGD
(Superseded to 532434512)

$14.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

47

Husqvarna 532199377

BLADE.21.PUSH

$27.99

$

In Stock, only 2 left!

0

64

Husqvarna 532185576

DOOR.MULCH.21.REAR.FWGD

$14.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532198910

DEBRIS SHIELD
(Superseded to 532443950)

$

$

Not available

4

Husqvarna 532183567

CABLE.ENGINE BRAKE.MZR

$17.99

$

In Stock, only 2 left!

0

27

Husqvarna 532402595

NEEDS DESCRIPTION

$

$

Not available

16

Husqvarna 532180071

SPRING LH

$

$

Not available

20

Husqvarna 532179205

NEEDS DESCRIPTION

$

$

Not available

12

Husqvarna 532182539

SUPPORT BRACKET RH
(Superseded to 532421560)

$20.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532184193

BOLT

$

$

Not available

98

Husqvarna 532182227

SCREW.#8.MACH

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

1

Husqvarna 532196403

RP HANDLE.ASM.UPPER.W/GRI
(Superseded to 532427658)

$60.99

$

In Stock, only 1 left!

0

13

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532180072

SPRING.REAR.DOOR.EZ.21

$7.49

$

In Stock, only 1 left!

0

60

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

8

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

14

Husqvarna 532196037

BRKT.ASM.HNDL.21FGD.EZ
(Superseded to 532434513)

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532402571

ARM.ASM.AXLE.H/W,RR.BZ

$

$

Not available

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

40

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532197752

Blade Adapter / Pulley

$

$

Not available

41

Husqvarna 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532190157

SPRING.SELECTOR.21.FWG.ZINC

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

99

Husqvarna 532182228

NUT.HEX.#8

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

7

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0
