R 53 (961310023-12) - Husqvarna Walk-Behind Mower (2012-01) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

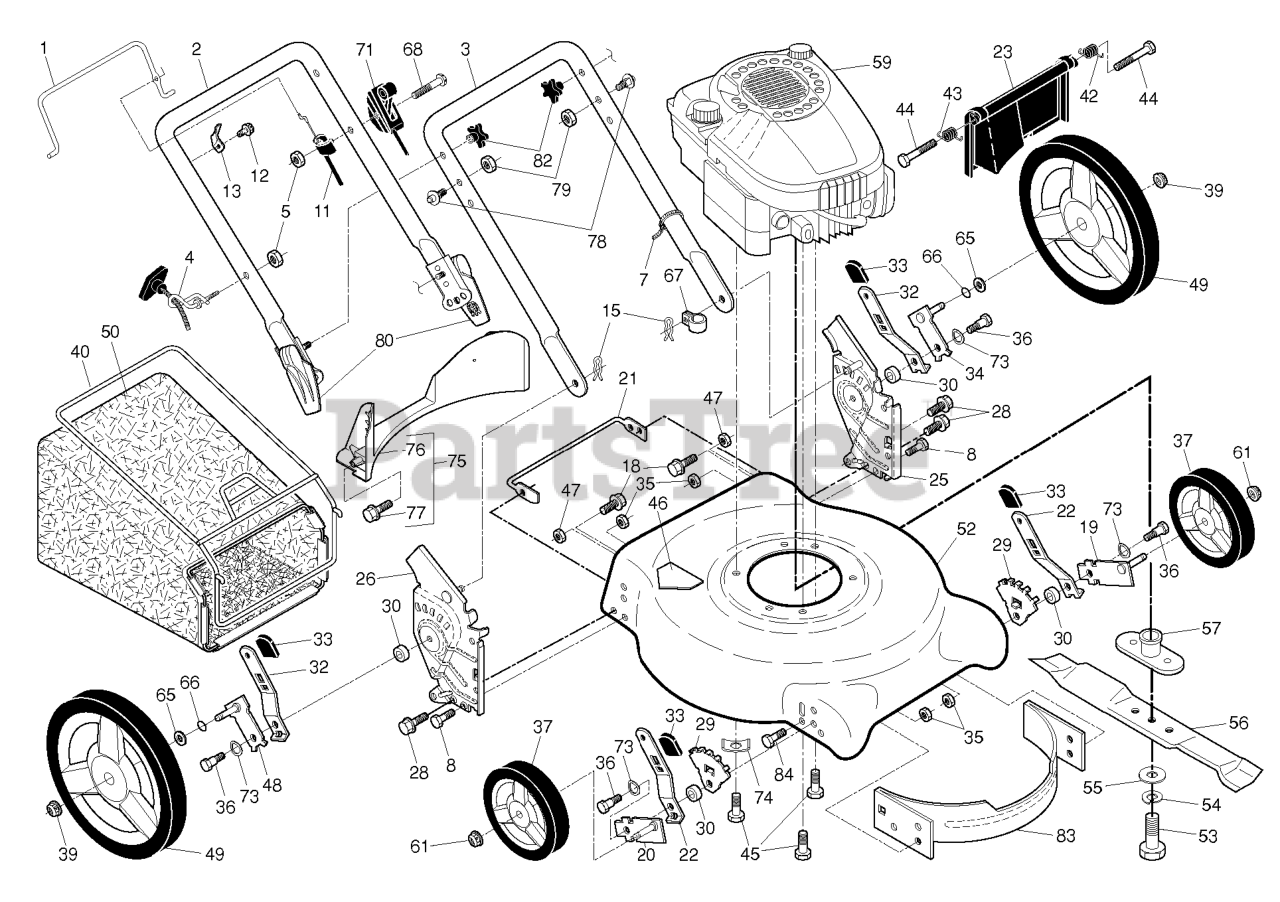

FRAME & ENGINE Parts Diagram

  • Title

77

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532410601

AXLE ARM ASSY REAR RH
(Superseded to 532401177)

$

$

Not available

42

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, only 3 left!

0

40

Husqvarna 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

83

Husqvarna 532428501

BAFFLE.FRONT.21.DOME.US

$20.99

$

In Stock, Qty 5

0

23

Husqvarna 532410603

REAR DOOR ASSY
(Superseded to 532401814)

$13.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$13.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532420829

$

$

Currently unavailable

57

Husqvarna 532418373

ADAPTER.BLADE.W/KEY.25MM.CE

$11.99

$

In Stock, Qty 20+

0

78

Husqvarna 532199255

STUD.QUICK.ADJUST

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532410600

AXLE ARM ASSY REAR LH
(Superseded to 532401176)

$6.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532417031

HANDLE.LOWER.ECON.PNT

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

Husqvarna 532182191

DECAL.INTERN.4.SYMBOL.CURVED

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

19

Husqvarna 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: FRONT, LEFT

$

$

Not available

71

Husqvarna 532420612

NEEDS DESCRIPTION

$

$

Currently unavailable

67

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

52

Husqvarna 532441982

KIT.HSG.21RD.DOME.ORG.CE
(Superseded to 583561901)

$113.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532184193

BOLT

$

$

Not available

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

Note: NOT SHOWN

$14.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

73

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 14

0

37

Husqvarna 532413183

WHEEL AND TIRE ASSY, REAR
(Superseded to 532401272)

$31.99

$

In Stock, only 4 left!

0

32

Husqvarna 532410595

SPRING.SEL.EXT.21.DOMED.12/14
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

1

Husqvarna 532402949

BAIL.MZR.STD.ORANGE

$14.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532430679

QUICK.ASM.RELEASE.BLACK

$15.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

66

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 3 left!

0

36

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, only 4 left!

0

8

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 532446560

RP BRACKET.ASM.HND.HW.21.LT.
(Superseded to 580915605)

Note: LH

$17.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, only 4 left!

0

84

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

74

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532436119

FOOT.GUARD.21.DOM/FGD.CE.10

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: FRONT, RIGHT

$6.99

$

In Stock, only 3 left!

0

56

Husqvarna 532199377

BLADE.21.PUSH

$27.99

$

In Stock, only 2 left!

0

50

Husqvarna 532400070

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 532446562

RP BRACKET.ASM.HAND.HW.21.RT.O

Note: RH

$24.99

$

Usually ships in 3-10 days

0

28

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 3 left!

0

82

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

33

Husqvarna 532087877

KNOB

$6.49

$

In Stock, only 1 left!

0

47

Husqvarna 873751153

$

$

Not available

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 532413693

KIT.BAFFLE.REAR.PLASTIC.21.RD

$30.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

11

Husqvarna 532131994

CABLE.MZR.B&S.45.LT.PUSH

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 580334501

WHEEL.12X1.75H.3.SPOKE.RADIAL
(Superseded to 585911002)

$22.99

$

In Stock, only 2 left!

0

59

000000000

Note: B&S 122T02-0230-H1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

61

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

79

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0
