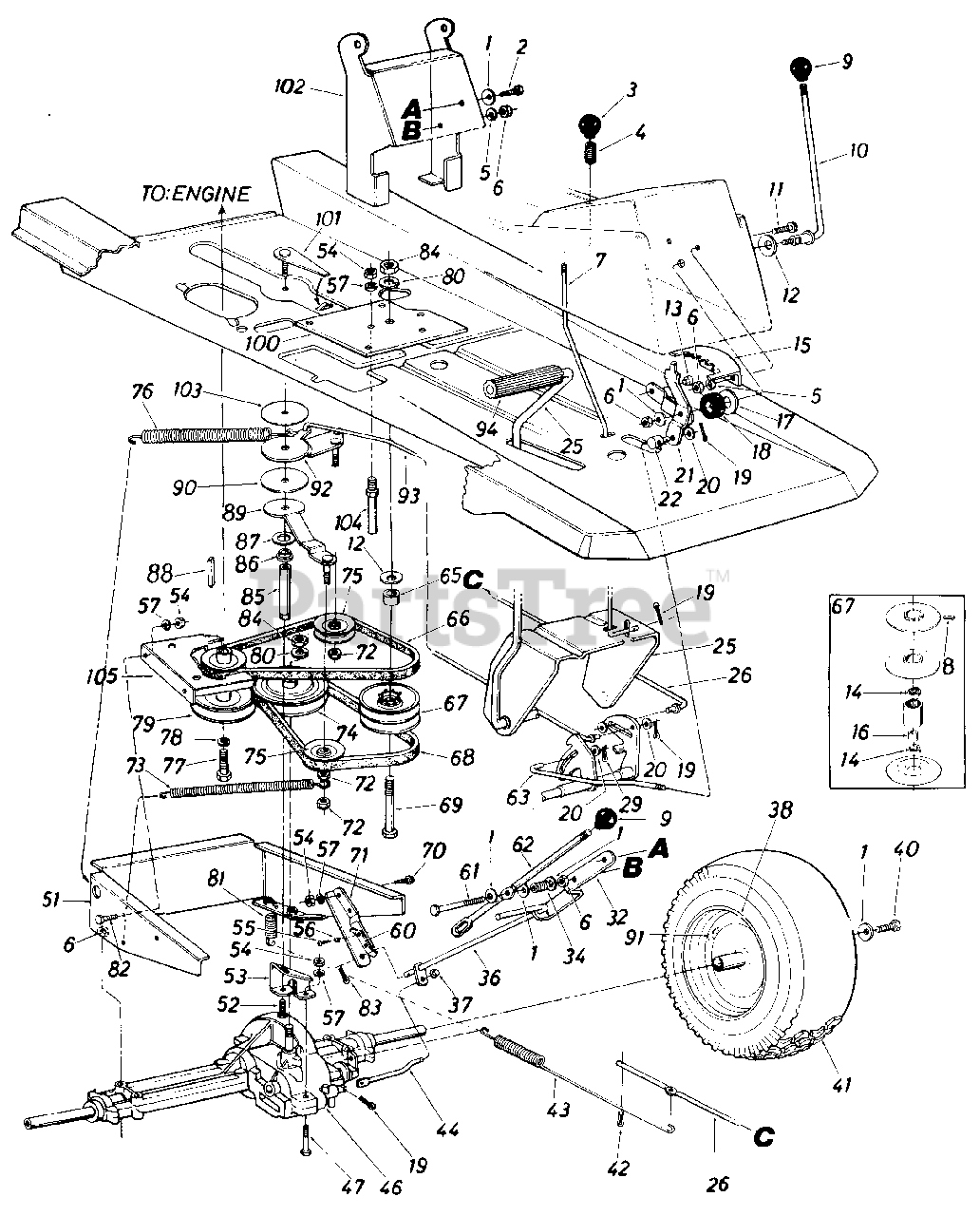

R-53 (135-511-190) - White Outdoor 26" Rear-Engine Riding Mower (1985) Drive Assembly Parts Diagram

26" Rear-Engine Riding Mower

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 736-0242

Bell-Wash..345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 720-0187

Ball Knob

$10.99

$

Usually ships in 3-6 days

0

4

White Outdoor 732-0437

Compression Spring

$10.99

$

In Stock, only 1 left!

0

5

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

7

White Outdoor 747-0450

Brake Locking Rod

$

$

Not available

8

White Outdoor 715-0124

Spring Pin Spir. 5/32" Dia. x.62" Lg.

$

$

Not available

9

White Outdoor 720-0165

Gear Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

10

White Outdoor 747-0424

Speed Control Lever

$

$

Not available

11

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.99

$

In Stock, only 2 left!

0

12

White Outdoor 736-0253

Bell-Wash. .505" I.D. x 1.00"

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 731-0493

Cap

$

$

Not available

14

White Outdoor 741-0139

Ball Brg. .50" I.D. x 1.38"

$

$

Not available

15

White Outdoor 15581

Index Bracket

$

$

Not available

16

White Outdoor 750-0516

Spacer.50" I.D. x .69" O.D. x 1.38" Lg.

$

$

Not available

17

White Outdoor 736-0154

Fl-Wash. 1/2" I.D. x 1.50"

$

$

Not available

18

White Outdoor 735-0219

Rubber Wash. .50" I.D. x 1.25" O.D.

$

$

Not available

19

White Outdoor 714-0115

Cotter Pin 1/8 x 1.00" Lg.*

$3.99

$

Usually ships in 3-6 days

0

20

White Outdoor 736-0275

Fl-Wash. .344" I.D. x .688"

$6.99

$

Usually ships in 3-6 days

0

21

15582

Speed Control Lever Brkt. Ass'y.

$

$

Not available

22

White Outdoor 711-0677

Ferrule Engagement
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

25

White Outdoor 15562

Clutch-Brake Pedal Ass'y.

$

$

Not available

26

White Outdoor 747-0431

Brake Rod

$

$

Not available

29

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

32

15659

Shift Lever Brkt.

$

$

Not available

34

White Outdoor 732-0369

Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

36

White Outdoor 15637

Shift Lever Ass'y.

$

$

Not available

37

White Outdoor 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

38

Rear Wheel Rim Only

$

$

Not available

White Outdoor 734-0594

Rim Only 16 x 6.50
(Superseded to 634-0138)

Note: (514)

Variations

White Outdoor 734-0594-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$67.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0594-0629

RIM-WHEEL 8 X 5 - SILVER FLAKE (0629)

$67.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0594-0662

RIM-WHEEL 8 X 5 - OYSTER GRAY (0662)

$67.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0594-0674

RIM-WHEEL 8 X 5 - YARDMAN YELLOW (0674)

$

$

Not available

$141.99

$

Usually ships in 3-6 days

0

734-0517

Rim Only 13 x 5.0

Note: (511)

$

$

Not available

40

710-0275

Hex L-Bolt 5/16-24 x .75" Lg.

$

$

Not available

41

Rear Wheel Ass'y. Comp.

$

$

Not available

White Outdoor 734-0591

Wheel Ass'y. Comp. 16 x 6.50
(Superseded to 634-0139)

Note: (514)

Variations

White Outdoor 734-0591-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$319.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0591-0912

Wheel Assembly, Gray - Dico Gray (0912)

$319.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0591-0932

Wheel Assembly, Gray - Dico Beige (0932)

$319.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0591-0931

WHEEL ASS'Y-COMP - Carlisle Beige (0931)

$319.99

$

Usually ships in 3-6 days

0

$259.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0523

Wheel Ass'y. Comp. 13 x 5.0

Note: (511)

$

$

Not available

42

White Outdoor 714-0470

Cot-Pin 1/8" Dia. x 1.25

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 732-0389

Ext. Spring .75" O.D. x 17.0" Lg.

$

$

Not available

44

747-0421

Shift Rod

$

$

Not available

46

White Outdoor 717-0775

Transaxle Comp.
(Superseded to 753-0537)

$

$

Not available

47

White Outdoor 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.*

$3.99

$

In Stock, only 2 left!

0

51

White Outdoor 15552

Transaxle Support Ass'y.

Variations

White Outdoor 15552-0637

No Longer Available SUPPORT ASSY-TRANS - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 710-0180

Hex Bolt 3/8-24 x .75" Lg.*

$6.99

$

In Stock, only 3 left!

0

53

White Outdoor 15564

Torque Rod Bracket
(Superseded to 15564A-0637)

$

$

Not available

54

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

55

710-0789

C-Sink AB S-Tap Scr. #8 x .50"

$

$

Not available

56

726-0206

Push-In Nut #10

$

$

Not available

57

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

60

White Outdoor 732-0420

Spring Switch

$

$

Not available

61

White Outdoor 710-0395

Hex Bolt 5/16-18 x 2.25" Lg.*

$4.99

$

In Stock, only 1 left!

0

62

747-0430

Upper Shift Lever

$

$

Not available

63

White Outdoor 747-0451

Speed Control Rod

$

$

Not available

65

White Outdoor 750-0333

Spacer.501" I.D. x .750" O.D. x .775

$20.99

$

Usually ships in 3-6 days

0

66

White Outdoor 754-0241

"V"-Belt 5/8" L x 35" Lg.
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 14

0

67

White Outdoor 717-0473

Variable Speed Pulley Ass'y.

$

$

Not available

68

White Outdoor 754-0240

"V"-Belt 5/8" L x 38" Lg.
(Superseded to 954-0240)

$37.99

$

In Stock, only 1 left!

0

69

White Outdoor 710-0786

Hex Bolt 1/2-13 x 4.0" Lg.*

$16.99

$

Usually ships in 3-6 days

0

70

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

71

15624

Shift Lever Support

$

$

Not available

72

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

73

White Outdoor 732-0308

Extension Spring
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

74

White Outdoor 756-0390

5/8" V-Pulley 6.0" O.D.

$

$

Not available

75

White Outdoor 756-0116

"V"-Belt Idler 3.06" O.D.
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

76

White Outdoor 732-0436

Extension Spring .99" O.D. x 8.0" Lg.
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

77

White Outdoor 710-0314

Hex Bolt 7/16-20 x 1.0" Lg.*

$4.49

$

In Stock, only 3 left!

0

78

White Outdoor 736-0171

L-Wash. 7/16" I.D.*

$4.49

$

In Stock, only 4 left!

0

79

White Outdoor 756-0391

Engine Pulley

$157.99

$

Usually ships in 3-6 days

0

80

White Outdoor 736-0921

L-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 5

0

81

White Outdoor 732-0303

Brake Return Ext. Spring
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

82

White Outdoor 710-0352

Hex Bolt 1/4-20 x .75" Lg.*

$4.99

$

Usually ships in 3-6 days

0

83

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x .75" Lg.

$4.99

$

In Stock, Qty 13

0

84

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

85

White Outdoor 711-0676

Torque Rod 3.835" Lg.

$

$

Not available

86

White Outdoor 748-0294

Flange Bearing .378

$

$

Not available

87

White Outdoor 736-0187

Fl-Wash. .640" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 714-0114

Sq. Key 1/4" x 2.00" Lg.*
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

89

White Outdoor 15569

Idler Bracket Ass'y.
(Superseded to 15569B)

$

$

Not available

90

White Outdoor 736-0283

Thrust Wash. .635" I.D. x 3.50" O.D.

$

$

Not available

91

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

92

White Outdoor 15585

Idler Bracket Ass'y.

$

$

Not available

93

White Outdoor 747-0422

Clutch Rod

$

$

Not available

94

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

100

15588

Mounting Bracket Variable Speed Pulley

$

$

Not available

101

White Outdoor 15642

Weld Scr. Brkt. Ass'y.

Variations

White Outdoor 15642-0637

No Longer Available BRACKET ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

102

White Outdoor 15605

Front Seat Bracket

$

$

Not available

103

White Outdoor 736-0284

Thrust Wash. .385" I.D. x 3.50" O.D.

$

$

Not available

104

White Outdoor 711-0747

Belt Guard Pin 1/4" Dia. x 1.68" Lg.

$10.99

$

Usually ships in 3-6 days

0

105

White Outdoor 15623

Upper Engine Belt Guard
(Superseded to 95623)

$

$

Not available

White Outdoor 734-0542

Hub Cap

Note: (Not Shown)

$

$

Not available
