R-53 (135-511-190) - White Outdoor 26" Rear-Engine Riding Mower (1985) Deck Lift Assembly Parts Diagram

26" Rear-Engine Riding Mower

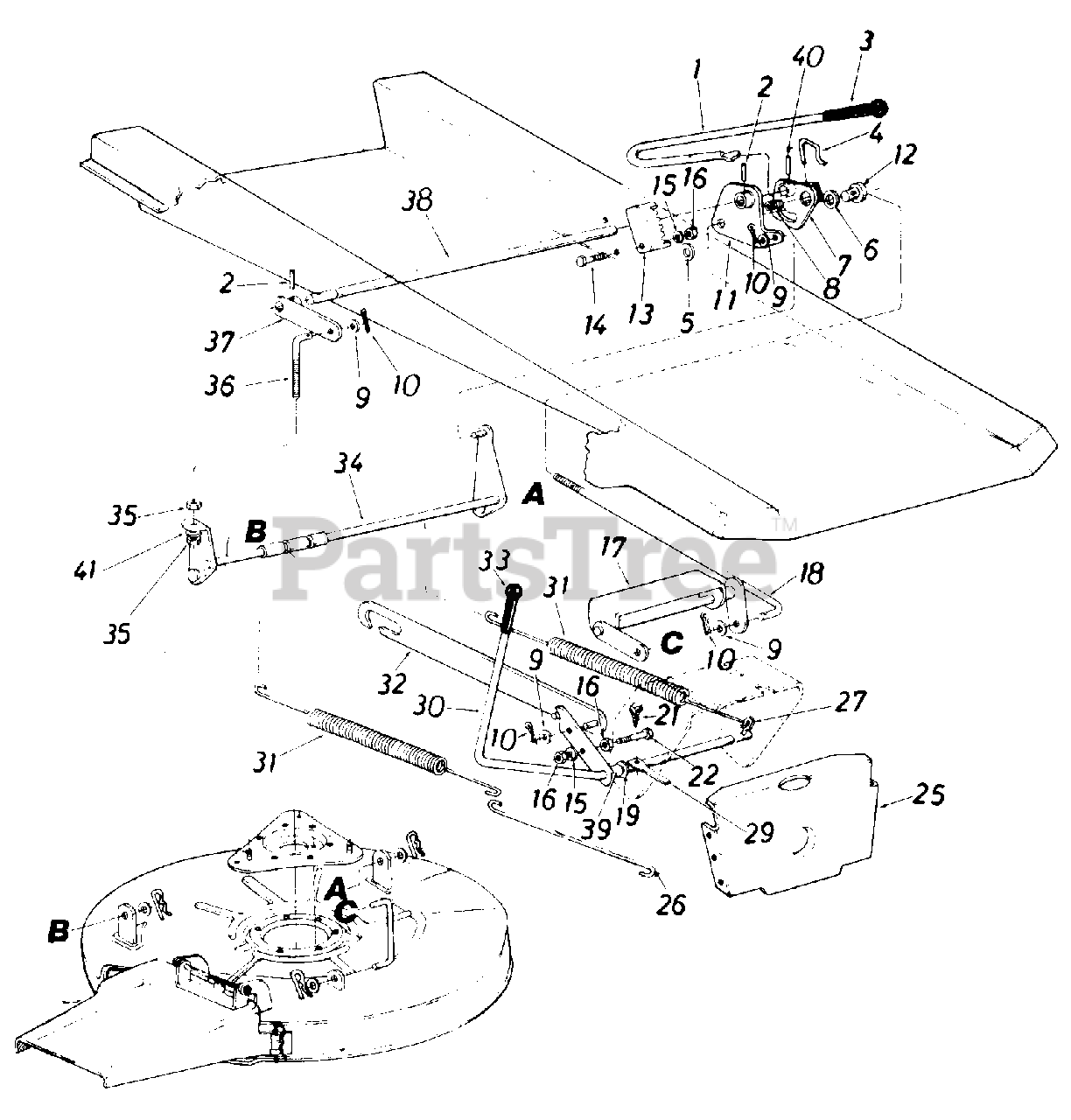

Deck Lift Assembly Parts Diagram

  • Title

1

747-0418

Deck Lift Handle

$

$

Not available

2

White Outdoor 715-0114

Spring Pin Spir. 1/4" Dia. x 1.50" Lg.

$9.49

$

In Stock, only 3 left!

0

3

White Outdoor 720-0143

Grip

$

$

Not available

4

White Outdoor 714-0166

Cotter Pin

Note: (Special)

$

$

Not available

5

White Outdoor 736-0162

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .1 2

$4.49

$

In Stock, Qty 14

0

6

White Outdoor 736-0187

Fl-Wash. 5/8" I.D. x 1.25" O.D. x .60

$4.49

$

In Stock, Qty 20+

0

7

15576

Deck Lift Handle Brkt. Ass'y.

$

$

Not available

8

White Outdoor 732-0430

Compression Spring .50" O.D. x 1.04

$

$

Not available

9

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00"*

$3.99

$

Usually ships in 3-6 days

0

11

White Outdoor 15578

Deck Lift Brkt. Ass'y. L.H.

$

$

Not available

12

White Outdoor 711-0749

Adj. Ferrule Deck Lift Handle

$

$

Not available

13

White Outdoor 15581

Index Bracket

$

$

Not available

14

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

17

White Outdoor 15573

Deck Lift Ass'y. Front

$

$

Not available

18

White Outdoor 747-0426

Deck Lift Connecting Rod

$

$

Not available

19

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

21

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0805

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

25

White Outdoor 15613

Pivot Bar Bracket

$

$

Not available

26

White Outdoor 732-0451

Spring Hook
(Superseded to 732-0451B)

$

$

Not available

27

White Outdoor 711-0753

Spec. Clevis Pin .250" Dia.

$

$

Not available

29

White Outdoor 732-0435

Switch Actuator

$

$

Not available

30

White Outdoor 15568

Blade Engagement Lever Ass'y.
(Superseded to 15568A)

$

$

Not available

31

White Outdoor 732-0440

Extension Spring .99" O.D. x 14.25" Lg.

$26.99

$

Usually ships in 3-6 days

0

32

White Outdoor 15644

Deck Drive Control Brkt. Ass'y.
(Superseded to 15644A-0637)

$

$

Not available

33

White Outdoor 720-0143

Grip

$

$

Not available

34

15600

Deck Link Ass'y. Rear

$

$

Not available

35

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

36

White Outdoor 710-0866

Deck Adj. Scr. 3/8-16 Thd.

$

$

Not available

37

White Outdoor 15609

Deck Lift Brkt. Ass'y. R.H.

$

$

Not available

38

White Outdoor 738-0550

Rear Height Adj. Shaft

$

$

Not available

39

White Outdoor 750-0515

Sleeve .511" I.D. x .70" O.D. x.37" Lg.

$4.49

$

In Stock, only 4 left!

0

40

White Outdoor 715-0134

Spring Pin Spir. 3/16" Dia. x 1.50" Lg.
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

41

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0
