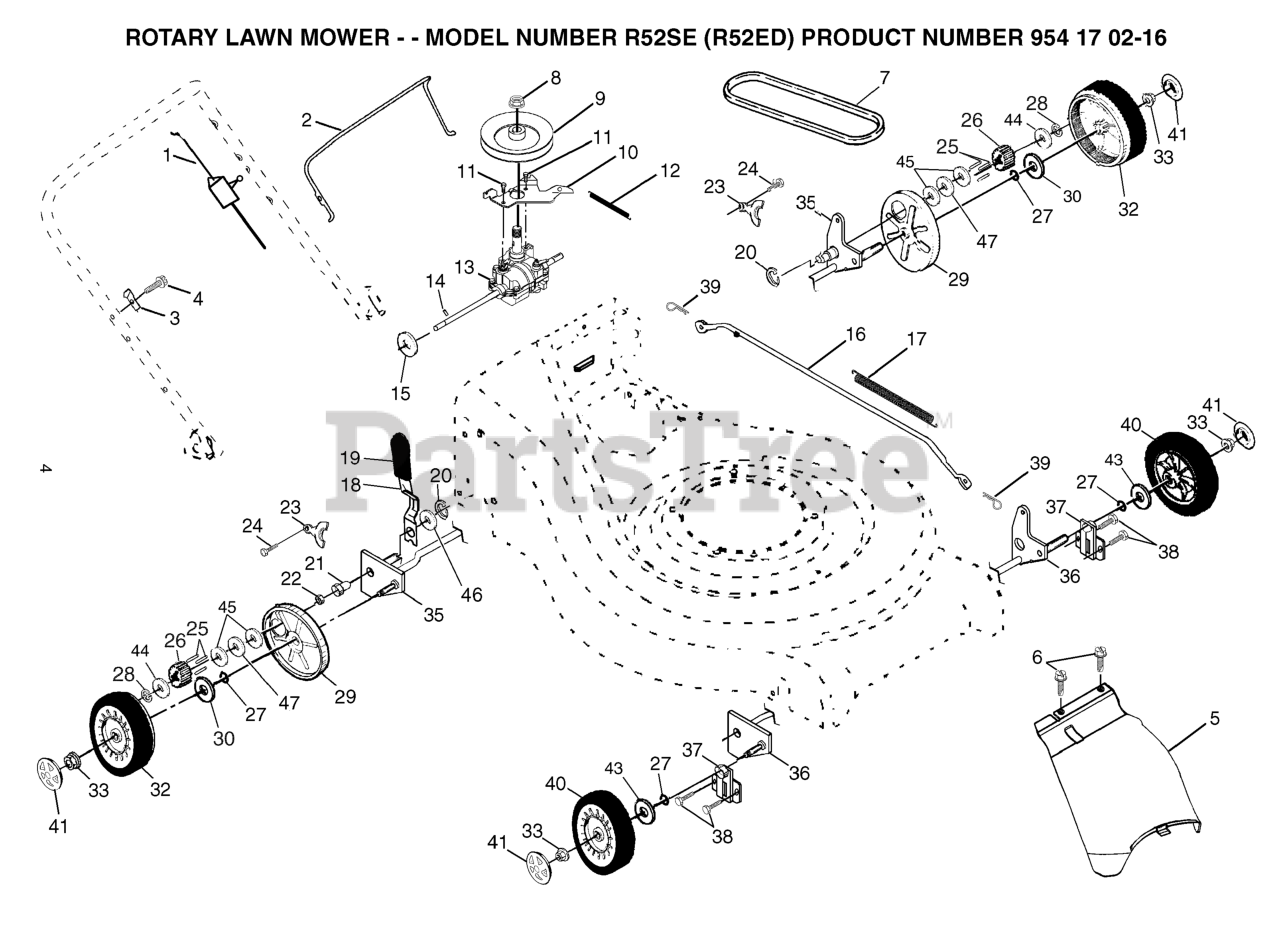

R 52 SE (R52ED) - Husqvarna Walk-Behind Mower (2004-01) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

39

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532187627

NEEDS DESCRIPTION

$

$

Not available

45

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$9.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532164552

SHAFT ASSY
(Superseded to 532160785)

$36.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

24

Husqvarna 532057808

SCREW

$

$

Not available

41

Husqvarna 532150182

CAP.HUB.ARC.SPOKE.8".LP

$

$

Not available

19

Husqvarna 532190069

KNOB.EXT.ERGO.BLACK

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 10

0

7

Husqvarna 532160816

V-BELT

$27.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532161602

SPRING
(Superseded to 532409616)

$7.49

$

In Stock, only 2 left!

0

8

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532188760

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 532145354

PIN.SPRING.THRUST

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532166450

PINION.DRIVE.WALK

$9.99

$

In Stock, only 1 left!

0

30

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

23

Husqvarna 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 532164554

SPRING
(Superseded to 532160477)

$

$

Not available

36

Husqvarna 532164550

SHAFT ASSY
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532180504

DUST COVER, WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

16

Husqvarna 532161584

ROD CONNECTING
(Superseded to 532414284)

$40.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532163939

PULLEY

$20.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532164553

BELT GUIDE

$

$

Not available

32

Husqvarna 532180753

WHEEL.9X2.PR.LP.RADIAL.BK.BB.3
(Superseded to 532193139)

$66.99

$

In Stock, Qty 5

0

20

Husqvarna 812000022

E-RING

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532190513

NEEDS DESCRIPTION

$

$

Currently unavailable

40

Husqvarna 532143593

WHEEL ASMBLY FRONT
(Superseded to 532435276)

$

$

Not available

25

Husqvarna 532170011

PAWL.DRIVE.ETCHED

$

$

Not available

42

Husqvarna 819572216

WASHER.ZINC.PLATED

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

3

Husqvarna 532164557

DOWNSTOP BRACKET
(Superseded to 532161478)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

13

Husqvarna 532169611

TRANSMISSION ASM. (WALK)
(Superseded to 532188295)

$121.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532169911

BEARING, BALL

$

$

Not available

38

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 8

0

44

Husqvarna 532052160

WASHER

$

$

Not available

11

Husqvarna 817541011

Screw, Hex Washer Head #10-24 x .668

$

$

Not available

1

Husqvarna 532187626

DRIVE CABLE
(Superseded to 532405995)

$44.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532163365

RP BEARING SUPPORT
(Superseded to 532169920)

$

$

Not available

47

Husqvarna 532088118

WASHER

$6.49

$

Usually ships in 3-10 days

0
