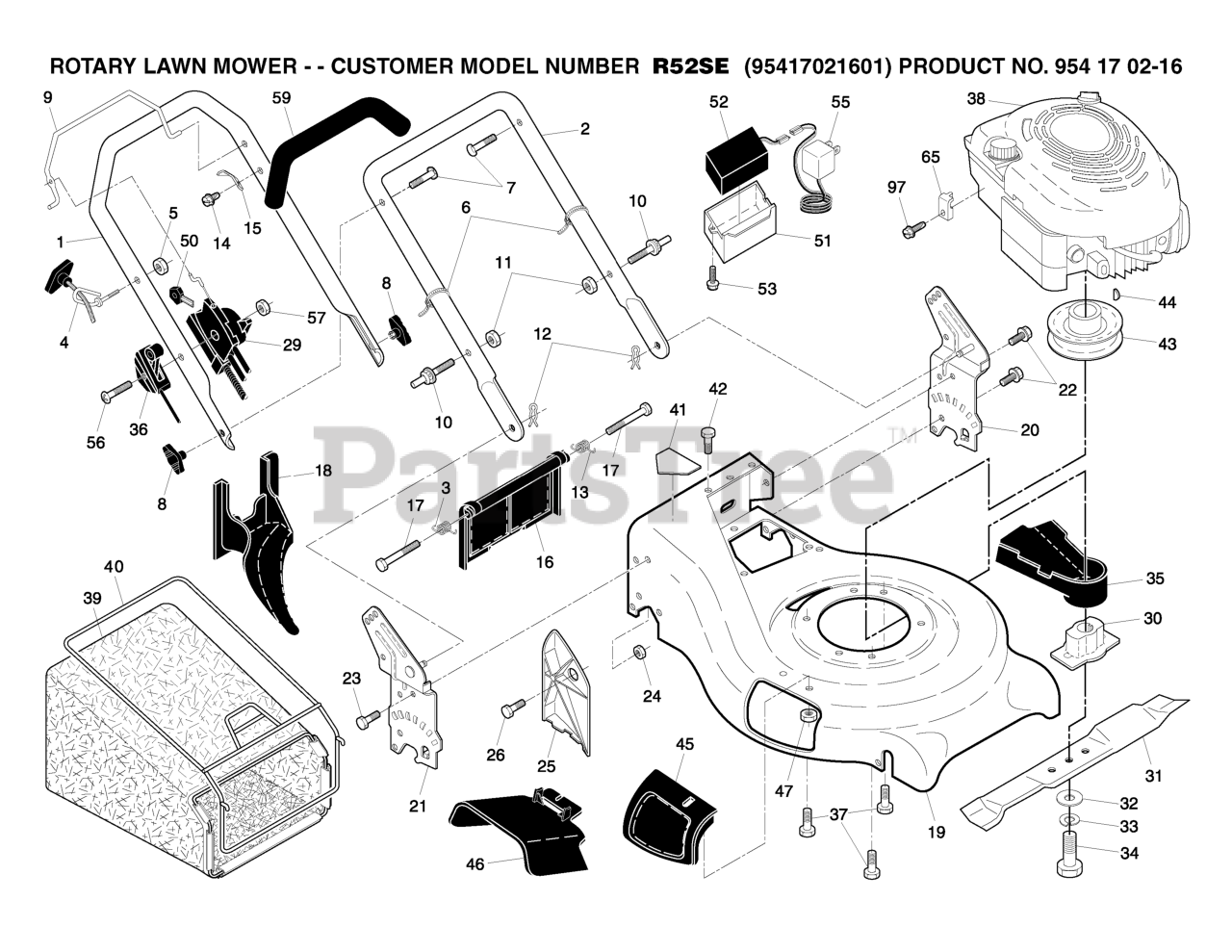

R 52 SE (954170216-01) - Husqvarna Walk-Behind Mower (2005-02) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

65

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532175052

NEEDS DESCRIPTION

$

$

Not available

18

Husqvarna 532187535

PLUG, MULCHER
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

-

Husqvarna 532199542

NEEDS DESCRIPTION

Note: CORRECTION:

$

$

Currently unavailable

30

Husqvarna 532193707

ADAPTER.BLADE
(Superseded to 532420097)

$11.99

$

In Stock, Qty 20+

0

51

Husqvarna 532193476

BOX.BATTERY.21RD.,RWGD

$6.49

$

Usually ships in 3-10 days

0

-

Husqvarna 532195484

NEEDS DESCRIPTION

Note: CORRECTION:

$

$

Currently unavailable

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

15

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532186053

SPRING.LH.REAR.DOOR.21.RWGD

$10.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

- -

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532194953

CONTROL.COMBI.KEY.ASMR

$103.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532196005

HANDLE LOWER
(Superseded to 532197202)

$

$

Not available

40

Husqvarna 532188817

GRASS CATCHER FRAME
(Superseded to 532194644)

$60.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532087692

KNOB

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532182154

CONTRL.THROTTLE.

$

$

Not available

20

Husqvarna 532194029

BRKT.ASM.HNDL.21.RWGD.LT
(Superseded to 532193917)

$

$

Not available

50

Husqvarna 532180331

KEY.MOLDED

$8.99

$

In Stock, Qty 10

0

39

Husqvarna 532194052

NEEDS DESCRIPTION

$

$

Currently unavailable

43

Husqvarna 532184941

PULLEY.ENG.25MMM

$

$

Not available

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532144926

BATTERY
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

44

Husqvarna 532187723

HI-PRO KEY

$

$

Not available

-

Husqvarna 532195485

NEEDS DESCRIPTION

Note: CORRECTION:

$

$

Currently unavailable

41

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532192436

CHARGER.BATTERY.CE
(Superseded to 583597301)

$84.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532189589

BATTERY WITH AMP CONECTOR AGM
(Superseded to 584353901)

$103.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

16

Husqvarna 532190574

DOOR.REAR.PLASTIC.21.RWGD.BLAC

$44.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532189185

NEEDS DESCRIPTION

$

$

Not available

97

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$11.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532054583

SCREW

$

$

Not available

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

17

Husqvarna 532184193

BOLT

$

$

Not available

47

Husqvarna 532088349

NUT

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532191819

NEEDS DESCRIPTION

$

$

Not available

46

Husqvarna 532190512

DEFLECTOR, DISCHARGE
(Superseded to 532169699)

$

$

Not available

10

Husqvarna 532188821

BOLT

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532176937

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 532194031

BRKT.ASM.HNDL

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532169369

HANDLE.UP.DLX.COMF.W/GRIP.GREY

$54.99

$

Usually ships in 3-10 days

0

-

Husqvarna 532199543

NEEDS DESCRIPTION

Note: CORRECTION:

$

$

Currently unavailable

13

Husqvarna 532186052

SPRING.RH.REAR.DOOR.21.RWGD

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

53

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0
