R 52 S (961410060-08) - Husqvarna Walk-Behind Mower (2010-10) DRIVE Parts Diagram

Walk-Behind Mower

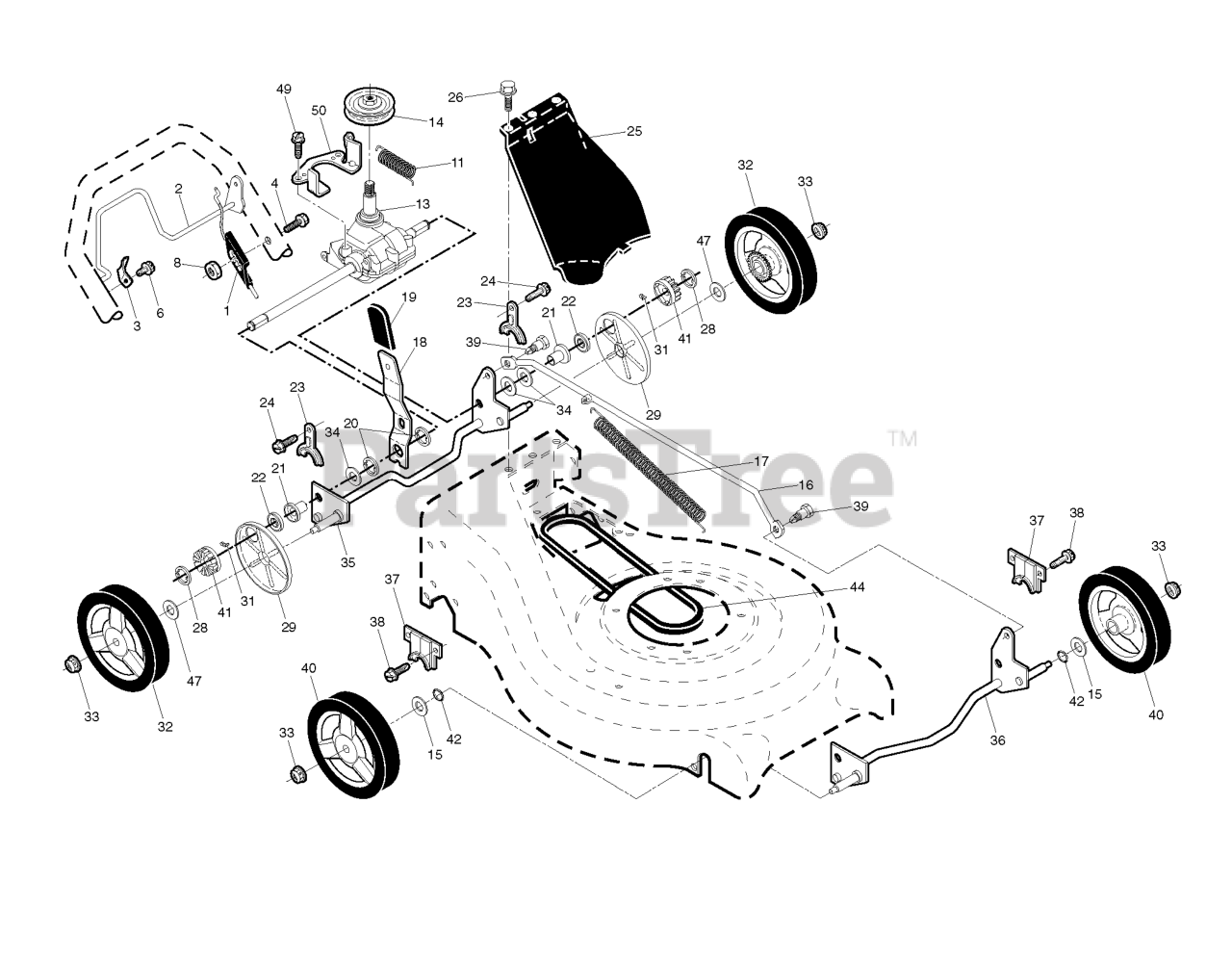

DRIVE Parts Diagram

  • Title

44

Husqvarna 532406557

RP.BELT.DRIVE.RGD.SS.WALK
(Superseded to 580364604)

$13.99

$

In Stock, Qty 20+

0

36

Husqvarna 532410933

SHAFT ASSY, FRONT
(Superseded to 532407175)

$28.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532400783

COVER.DRIVE.21.RWGD.MO

$12.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 20+

0

50

Husqvarna 532413722

BRACKET.BELT.KEEPE/AUT*SUBS/2*
(Superseded to 583742001)

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532409616

SPRING EXTENSION

$7.49

$

In Stock, only 2 left!

0

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, Qty 11

0

3

Husqvarna 532164557

DOWNSTOP BRACKET
(Superseded to 532161478)

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

38

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

8

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 7

0

47

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

11

Husqvarna 532406558

SPRING

$9.49

$

In Stock, Qty 14

0

14

Husqvarna 532405703

PULLEY.RGD.SS.3.25OP

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532412450

BEARING SUPPORT
(Superseded to 532404838)

$

$

Not available

32

Husqvarna 532413105

WHEEL & TIRE ASSY, REAR
(Superseded to 581685101)

$34.99

$

In Stock, Qty 20+

0

41

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

In Stock, Qty 20+

0

24

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, Qty 12

0

18

Husqvarna 532418866

SPRING.SELECTOR.
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 532406531

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 532407147

ROD.CONNECTING.SPT.BLACK

$

$

Not available

22

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$17.99

$

In Stock, Qty 20+

0

42

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532417821

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 532190069

KNOB.EXT.ERGO.BLACK

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532410922

SHAFT ASSY REAR
(Superseded to 532403102)

$37.99

$

In Stock, only 4 left!

0

6

Husqvarna 532750634

SCREW

$6.49

$

In Stock, only 4 left!

0

4

Husqvarna 532199687

SCREW

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 812000022

E-RING

$4.99

$

In Stock, Qty 6

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 532750634

SCREW

$6.49

$

In Stock, only 4 left!

0

13

Husqvarna 532419213

TRANSMISSION.21.RWGD

$

$

Not available

40

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, Qty 13

0

34

Husqvarna 532851226

WASHER

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 13

0
