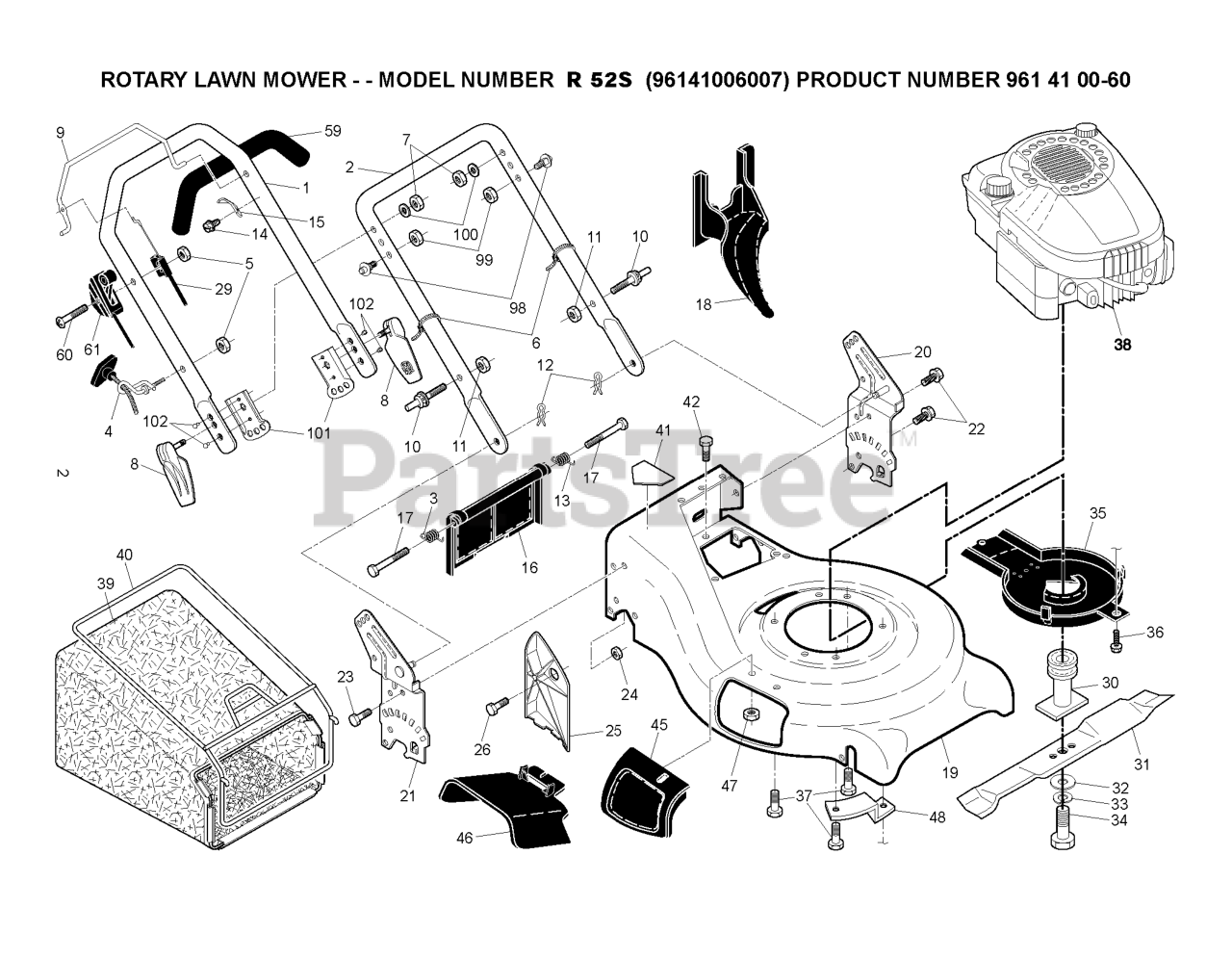

R 52 S (961410060-07) - Husqvarna Walk-Behind Mower (2009-09) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

36

Husqvarna 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0

38

000000000

Note: Engine, Briggs & Stratton, Model Number 126T02-1155-B1 (Order parts from engine manufacturer)

$

$

Not available

41

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532190510

MULCHER DOOR ASM.
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

10

Husqvarna 532188821

BOLT

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

98

Husqvarna 532199255

STUD.QUICK.ADJUST

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532133107

ENGINE ZONE CONTROL

$20.99

$

In Stock, only 1 left!

0

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532199377

BLADE.21.PUSH

$27.99

$

In Stock, only 2 left!

0

61

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

19

Husqvarna 532408000

KIT.HSG.21.RGD.MC.ORG.CE
(Superseded to 583320001)

$157.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

42

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

100

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 2 left!

0

22

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

14

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

60

Husqvarna 532420610

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 532405415

SPRING.LH.REAR.DOOR.21.RWGD

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532190512

DEFLECTOR, DISCHARGE
(Superseded to 532169699)

$

$

Not available

3

Husqvarna 532405416

SPRING.RH.REAR.DOOR.21.RWGD

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532405843

DEBRIS SHIELD
(Superseded to 585472601)

$31.99

$

In Stock, only 3 left!

0

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532416703

HANDLE.LOWER.21.PNT

$17.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532088349

NUT

$7.49

$

In Stock, only 1 left!

0

99

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

20

Husqvarna 532418239

BRACKET.HNDL.ASM.21.RWGD.LT.OR

$14.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532411951

FRAME.GBAG.21.RWGD.SC

$

$

Not available

102

Husqvarna 532199697

RIVET

$4.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532413534

BRACKET.ADJ.3POS.GREY

$10.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532410468

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 532418251

BRACKET.HNDL.ASM.21.RWGD.RT.OR

$20.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532408888

REAR DOOR ASSEMBLY
(Superseded to 532401815)

$18.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$11.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532430679

QUICK.ASM.RELEASE.BLACK

$15.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532420835

Upper Handle

$

$

Not available

7

Husqvarna 532400413

Locknut, Hex 1/4-20

$

$

Not available

11

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 532184193

BOLT

$

$

Not available

9

Husqvarna 532411083

BAIL.CONT.COMF.PUSH.ORGANGE.RH

$15.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532198170

PLUG.MULCHER.RGD.21.

$37.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

30

Husqvarna 532421176

ADAPTER.BLADE/PULLEY.25M

$28.99

$

In Stock, only 1 left!

0
