R 52 S (961410060-06) - Husqvarna Walk-Behind Mower (2008-08) DRIVE Parts Diagram

Walk-Behind Mower

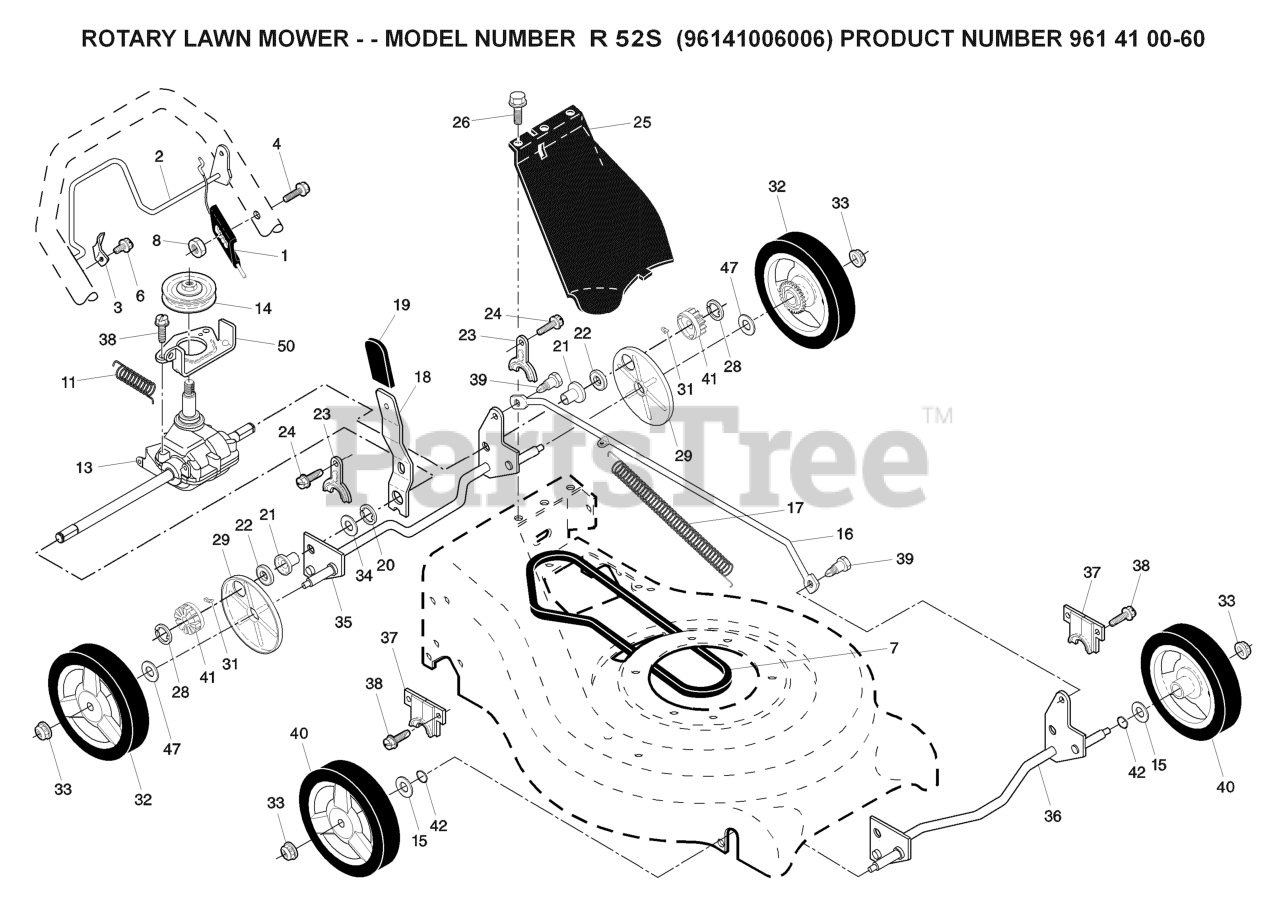

DRIVE Parts Diagram

  • Title
17

Husqvarna 532409616

SPRING EXTENSION

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

18

Husqvarna 532418866

SPRING.SELECTOR.
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532400783

COVER.DRIVE.21.RWGD.MO

$12.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 1 left!

0

1

Husqvarna 532406531

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 532407147

ROD.CONNECTING.SPT.BLACK

$

$

Not available

$7.49

$

In Stock, Qty 8

0

$8.99

$

In Stock, Qty 7

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

23

Husqvarna 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, only 2 left!

0

7

Husqvarna 532406557

RP.BELT.DRIVE.RGD.SS.WALK
(Superseded to 580364604)

$13.99

$

In Stock, Qty 9

0

42

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532419213

TRANSMISSION.21.RWGD

$

$

Not available

35

Husqvarna 532410922

SHAFT ASSY REAR
(Superseded to 532403102)

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

36

Husqvarna 532410933

SHAFT ASSY, FRONT
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532164557

DOWNSTOP BRACKET
(Superseded to 532161478)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532405703

PULLEY.RGD.SS.3.25OP

$13.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 5

0

24

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532413105

WHEEL & TIRE ASSY, REAR
(Superseded to 581685101)

$28.99

$

In Stock, only 2 left!

0

19

Husqvarna 532190069

KNOB.EXT.ERGO.BLACK

$7.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

In Stock, Qty 9

0

21

Husqvarna 532412450

BEARING SUPPORT
(Superseded to 532404838)

$

$

Not available

50

Husqvarna 532413722

BRACKET.BELT.KEEPE/AUT*SUBS/2*
(Superseded to 583742001)

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532417821

NEEDS DESCRIPTION

$

$

Currently unavailable

$6.49

$

In Stock, Qty 5

0

22

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

47

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0
