R 422 Ts - Husqvarna Swedish Riding Mower (Original) 48"/122CM CUTTING DECK 3 Parts Diagram

Swedish Riding Mower

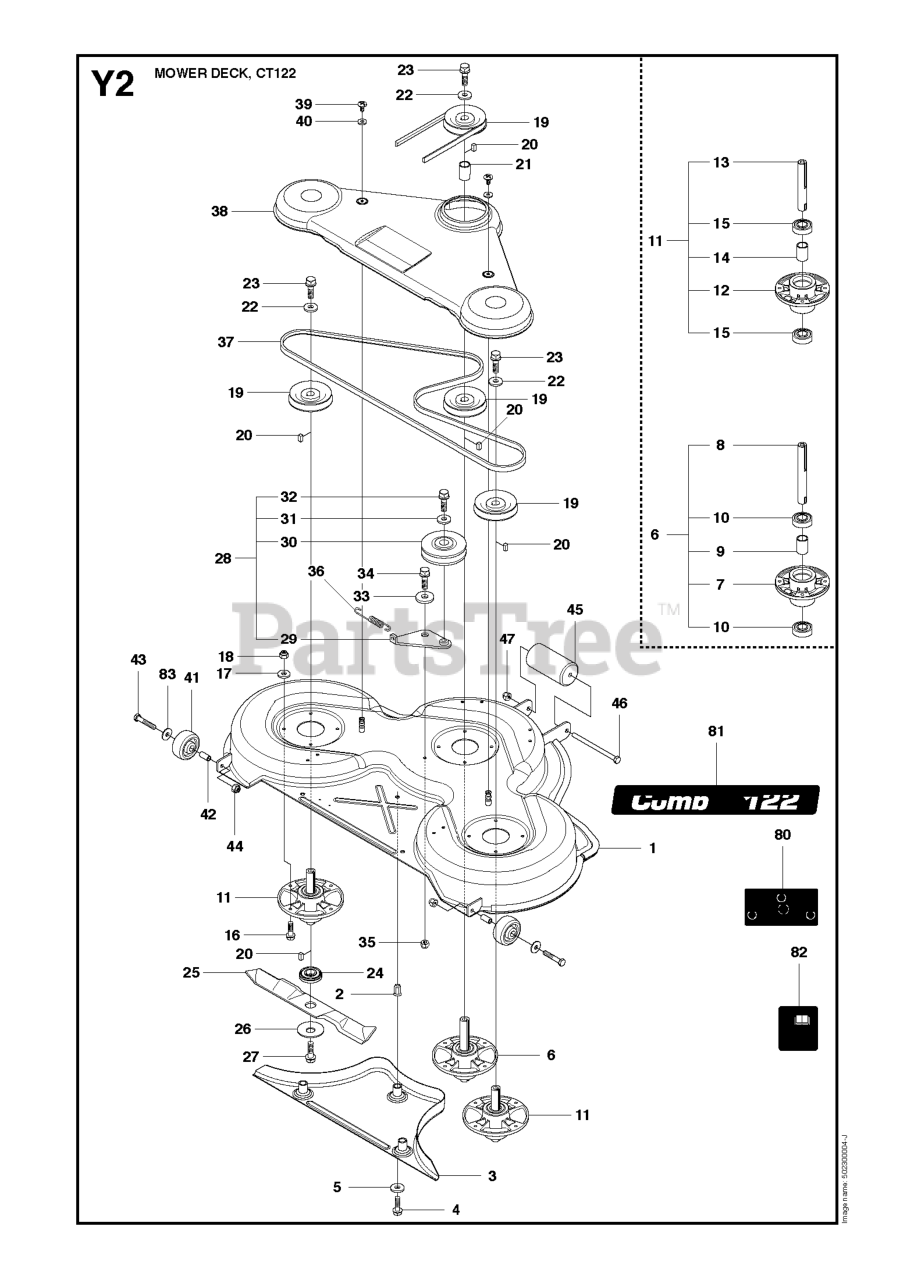

48"/122CM CUTTING DECK 3 Parts Diagram

  • Title

31

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

21

Husqvarna 535428801

SPACER

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 535428801

SPACER

$9.49

$

Usually ships in 3-10 days

0

82

Husqvarna 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0

24

Husqvarna 535504201

$

$

Currently unavailable

18

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

42

Husqvarna 505450301

TUBE

$

$

Not available

37

Husqvarna 589533001

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

6

Husqvarna 535428601

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

8

Husqvarna 535428701

NEEDS DESCRIPTION

$

$

Currently unavailable

46

Husqvarna 544221001

$

$

Currently unavailable

28

Husqvarna 506540701

BELT TENSIONER ASSY
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

13

Husqvarna 535428702

AXLE

$56.99

$

Usually ships in 3-10 days

0

17

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

40

Husqvarna 506559701

WASHER

$5.99

$

In Stock, only 4 left!

0

16

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

2

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

26

Husqvarna 506792302

WASHER

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 725254251

Screw

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

41

Husqvarna 505441601

WHEEL
(Superseded to 591052601)

$28.99

$

Usually ships in 3-10 days

0

1

Husqvarna 522505601

NEEDS DESCRIPTION

$

$

Currently unavailable

81

Husqvarna 544238113

NEEDS DESCRIPTION

$

$

Currently unavailable

43

Husqvarna 725250271

SCREW

$1.99

$

Usually ships in 3-10 days

0

36

Husqvarna 506533101

SPRING

$11.99

$

Usually ships in 3-10 days

0

19

Husqvarna 535429001

NEEDS DESCRIPTION

$

$

Currently unavailable

39

Husqvarna 506982601

SCREW

$6.99

$

In Stock, Qty 6

0

15

Husqvarna 738220519

BALL BEARING

$50.99

$

In Stock, only 2 left!

0

22

Husqvarna 535429201

$

$

Currently unavailable

83

Husqvarna 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 535428602

NEEDS DESCRIPTION

$

$

Currently unavailable

44

Husqvarna 732212001

NUT

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 506789701

Decal

$

$

Not available

30

Husqvarna 506532701

PULLEY

$45.99

$

In Stock, only 1 left!

0

45

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

25

Husqvarna 535429410

BLADE

$28.99

$

In Stock, only 3 left!

0

47

Husqvarna 732212201

NUT M12

$

$

Not available

10

Husqvarna 738220519

BALL BEARING

$50.99

$

In Stock, only 2 left!

0

33

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

9

Husqvarna 535428801

SPACER

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 725254251

Screw

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

38

Husqvarna 535429601

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 535428302

NEEDS DESCRIPTION

$

$

Currently unavailable
