R 422 Ts AWD (966772901) - Husqvarna Swedish Riding Mower (2014) ENGINE Parts Diagram

Swedish Riding Mower

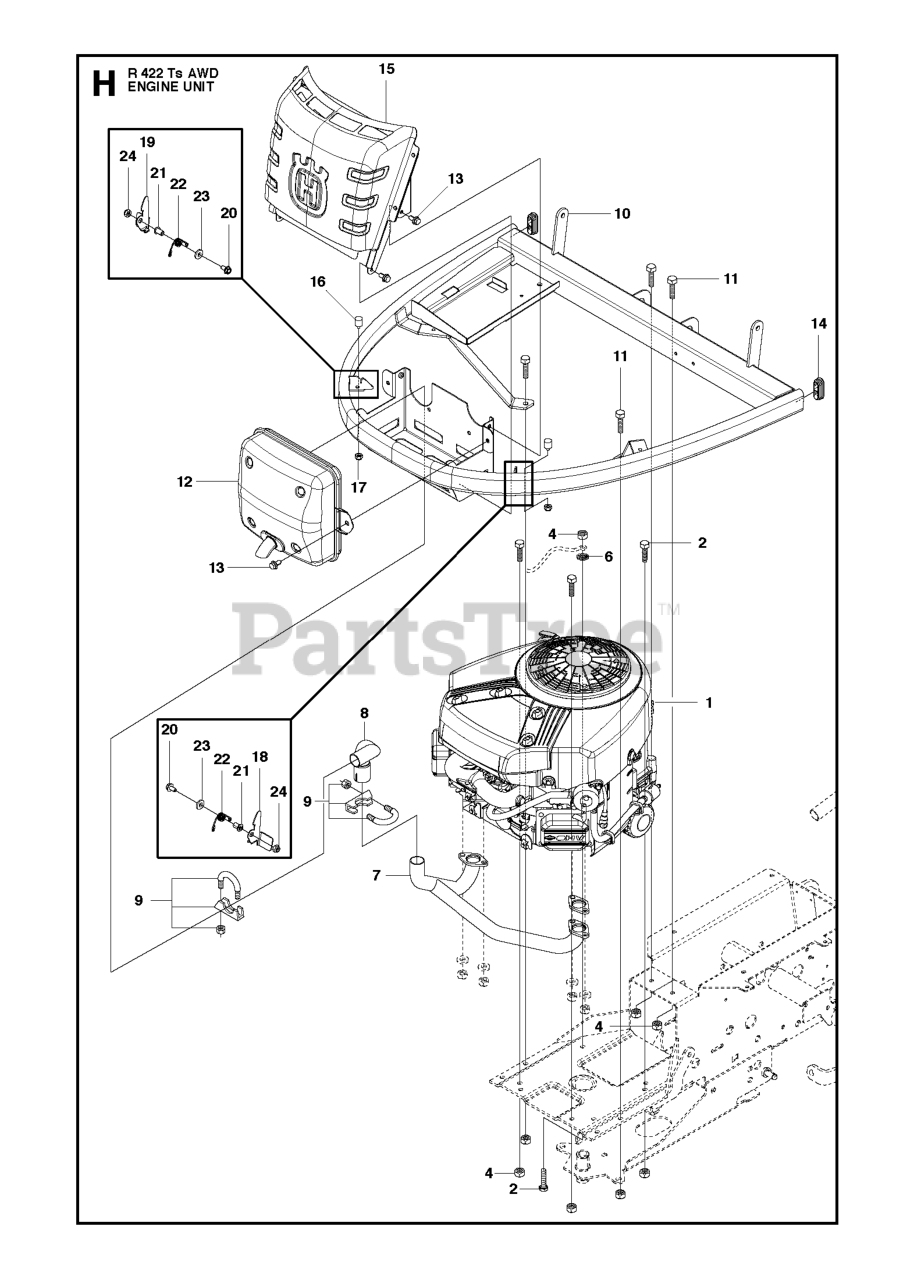

ENGINE Parts Diagram

  • Title

15

Husqvarna 505395502

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 576679701

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 504638401

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 535475230

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 504639001

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 578865801

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 576680201

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 504613404

NEEDS DESCRIPTION

Note: LEFT

$

$

Currently unavailable

6

Husqvarna 735216400

Washer

$

$

Not available

18

Husqvarna 504613403

NEEDS DESCRIPTION

Note: RIGHT

$

$

Currently unavailable

17

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

24

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

9

Husqvarna 506668401

CLAMP
(Superseded to 501152201)

$3.49

$

In Stock, only 3 left!

0

1

Husqvarna 576840303

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 576743701

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 535475212

SCREW EHHFM

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 725245751

SCREW

$5.99

$

In Stock, only 1 left!

0

16

Husqvarna 504638801

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 504643601

NEEDS DESCRIPTION

$

$

Currently unavailable

23

Husqvarna 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 725245171

SCREW

$1.49

$

In Stock, Qty 5

0
