R 419 TsX AWD - Husqvarna Swedish Riding Mower PEDALS Parts Diagram

Swedish Riding Mower

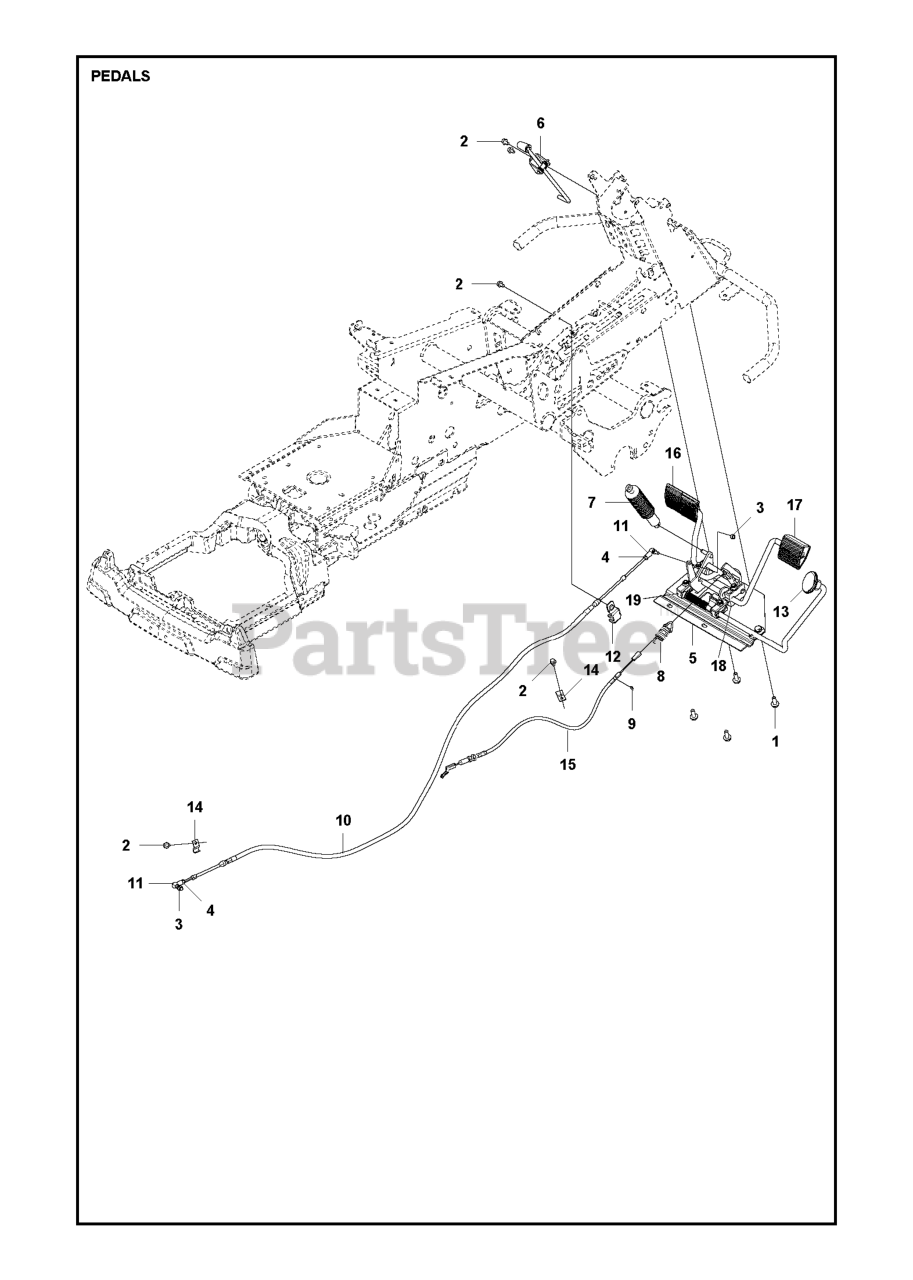

PEDALS Parts Diagram

  • Title

18

Husqvarna 506506501

PEDAL SHAFT CLAMP

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506938301

SHOCK ABSORBER

$

$

Not available

11

Husqvarna 578776801

CONNECTOR, BALL JOINT

$11.99

$

In Stock, only 1 left!

0

1

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 586966401

PEDAL RUBBER

$17.99

$

In Stock, only 2 left!

0

14

Husqvarna 506566501

CLAMP

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 544403103

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 586727401

KNOB, THREADED

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 586966402

PEDAL RUBBER L = 102MM

$17.99

$

In Stock, only 3 left!

0

2

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 15

0

12

Husqvarna 522430801

BRACKET

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

19

Husqvarna 506954101

SUPPORT

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576712102

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 582152001

CONTROL CABLE TRANSMISSION

$120.99

$

Usually ships in 3-10 days

0

9

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 8

0

5

Husqvarna 586969301

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 506946301

SPRING

$9.49

$

In Stock, only 1 left!

0
