R 418 Ts AWD - Husqvarna Swedish Riding Mower (Original) TRANSMISSION Parts Diagram

Swedish Riding Mower

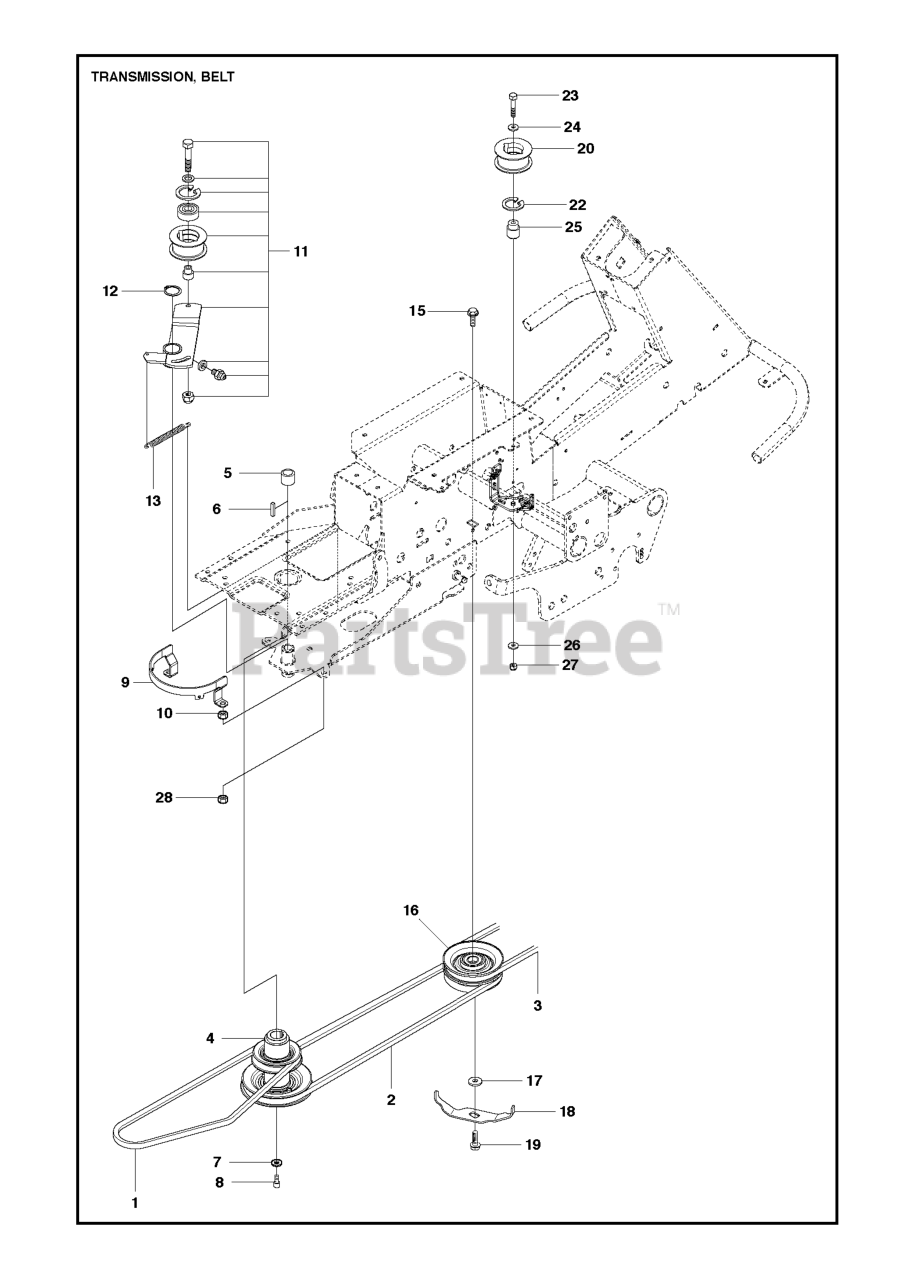

TRANSMISSION Parts Diagram

  • Title

10

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 725246151

BOLT

$5.99

$

In Stock, only 1 left!

0

22

Husqvarna 735313810

RETAINING RING

Note: For 967158501

$5.99

$

In Stock, only 2 left!

0

9

Husqvarna 506664501

BELT GUIDE

Note: For 967158501

$42.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589533501

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 505153901

BELT TENSIONER WHEEL ASSY

$62.99

$

Usually ships in 3-10 days

0

3

Husqvarna 593806401

NEEDS DESCRIPTION

$56.99

$

Usually ships in 3-10 days

0

4

Husqvarna 535482401

PULLEY

$79.99

$

Usually ships in 3-10 days

0

1

Husqvarna 580994701

BELT

Note: For 967158501

$28.99

$

In Stock, only 1 left!

0

8

Husqvarna 506556002

SCREW

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 589562301

NEEDS DESCRIPTION

Note: For 967292001

$

$

Currently unavailable

25

Husqvarna 544002901

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 506509201

SPACER

$11.99

$

In Stock, only 1 left!

0

15

Husqvarna 506675402

BOLT

$6.99

$

In Stock, only 3 left!

0

17

Husqvarna 506775701

WASHER

Note: For 967158501

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 506597501

WASHER

$

$

Not available

12

Husqvarna 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, only 2 left!

0

27

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 535482201

PULLEY

Note: For 967158501

$74.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506665601

SPRING

$28.99

$

Usually ships in 3-10 days

0

9

Husqvarna 587425201

Note: For 967292001

$

$

Currently unavailable

28

Husqvarna 725249371

Screw M10x25

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506570105

BOLT
(Superseded to 506597401)

Note: For 967158501

$6.99

$

In Stock, only 1 left!

0

6

Husqvarna 506555901

KEY

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 581916302

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 544405301

BELT GUIDE

Note: For 967158501

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 535484402

TENSIONER

$68.99

$

Usually ships in 3-10 days

0

26

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0
