R 418 Ts AWD - Husqvarna Swedish Riding Mower (Original) FRAME Parts Diagram

Swedish Riding Mower

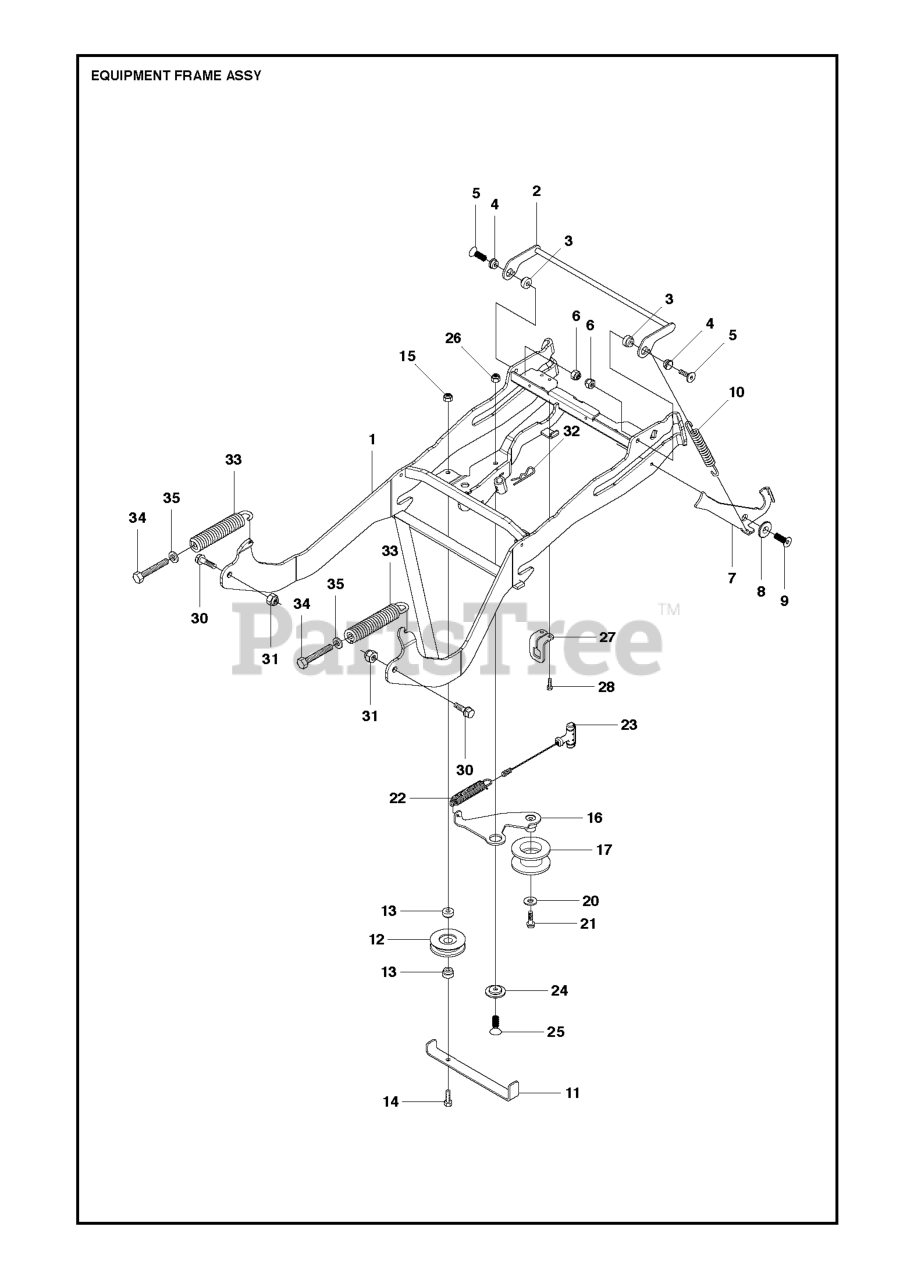

FRAME Parts Diagram

  • Title

11

Husqvarna 504621601

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 544003401

BUSHING

$

$

Not available

34

Husqvarna 725251571

SCREW

$2.99

$

Usually ships in 3-10 days

0

9

Husqvarna 725644801

SCREW IHCSFM

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 506993302

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 725645901

NEEDS DESCRIPTION

$5.49

$

Usually ships in 0 days

0

28

Husqvarna 725236461

SCREW

Note: For 967292001

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

1

Husqvarna 502637801

NEEDS DESCRIPTION

Note: For 967158501

$

$

Currently unavailable

23

Husqvarna 504622101

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 506966601

RETAINER

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 738210404

BALL BEARING 6004-2RS1

Note: For 967158501

$103.99

$

In Stock, Qty 20+

0

7

Husqvarna 504558002

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 506535603

SPRING

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 725236871

BOLT FLANGE - M6X20

Note: For 967158501

$4.99

$

In Stock, only 4 left!

0

29

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

Note: For 967158501

$3.49

$

In Stock, Qty 11

0

24

Husqvarna 505451701

WASHER
(Superseded to 586496701)

Note: For 967158501

$

$

Not available

27

Husqvarna 504621701

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 581765201

WASHER

Note: For 967292001

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 504557801

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 504622401

SPRING

$9.49

$

Usually ships in 3-10 days

0

25

Husqvarna 725645301

SCREW

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 506895801

BOLT

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 586496701

WASHER SHOULDER ASSY

Note: For 967292001

$

$

Not available

8

Husqvarna 506918701

SPACER

Note: For 967158501

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 505153901

BELT TENSIONER WHEEL ASSY

$62.99

$

Usually ships in 3-10 days

0

35

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

19

Husqvarna 735313810

RETAINING RING

Note: For 967158501

$5.99

$

In Stock, only 2 left!

0

31

Husqvarna 732252201

Nut

$1.99

$

In Stock, only 3 left!

0

16

Husqvarna 504621901

NEEDS DESCRIPTION

$

$

Currently unavailable

33

Husqvarna 505418701

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

3

Husqvarna 544003401

BUSHING

$

$

Not available

15

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

12

Husqvarna 544004601

PULLEY ASSY

$

$

Not available

1

Husqvarna 586193101

NEEDS DESCRIPTION

Note: For 967292001

$

$

Currently unavailable
