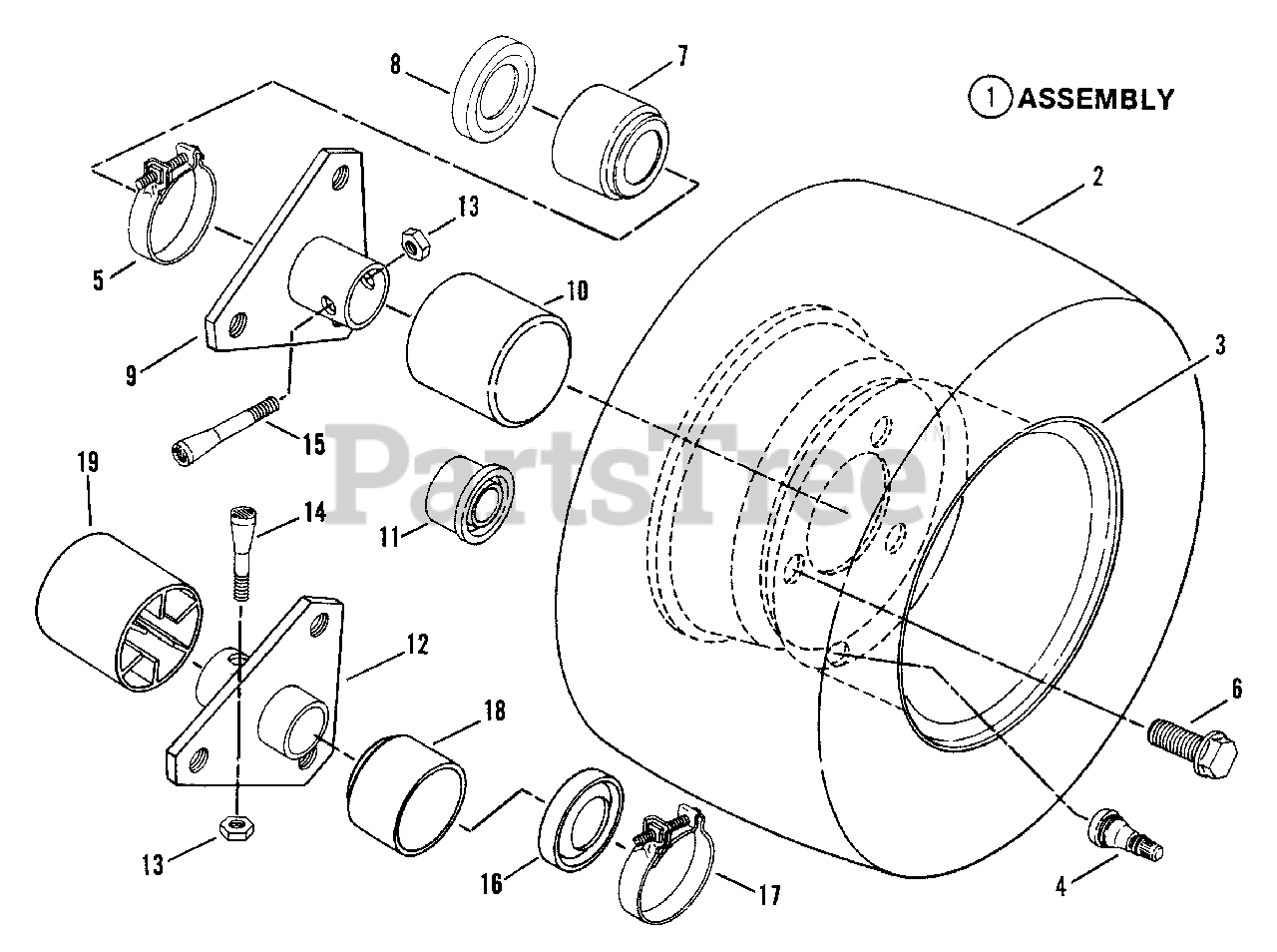

R 3312513BE (80433) - Snapper 33" Rear-Engine Riding Mower, 12.5hp Wheels-Rear Parts Diagram

33" Rear-Engine Riding Mower, 12.5hp

Wheels-Rear Parts Diagram

  • Title

1

Snapper 7052269

ASSEMBLY, Rear Tire & Rim 16x4.80-8
(Superseded to 7052269YP)

Note: (Includes Items 7023889, 7017145, 7012234) (25" Models)

$152.99

$

In Stock, only 2 left!

0

1

Snapper 7052270

ASSEMBLY, Rear Tire & Rim 16x6.50-8
(Superseded to 7052270YP)

Note: (Includes Items 7046245, 7012163, 7012234) (28" & 30" Models)

$207.99

$

In Stock, only 1 left!

0

1

ASSEMBLY, Rear Tire & Rim (NLA)

Note: Was 52671 (Now 7022584, 7012163, 7012234) (33" & 42" Models)

$

$

Not available

2

Snapper 7023889

TIRE, Std., 16x4.80-8
(Superseded to 7023889YP)

$67.99

$

Usually ships in 2-12 days

0

2

Snapper 7046245

TIRE, Wide, 16x6.50-8
(Superseded to 7073584YP)

Note: Was 15968

$170.99

$

Usually ships in 2-12 days

0

2

Snapper 7022584

TIRE, Ext Wide, 16x7.50-8
(Superseded to 7022584YP)

$110.99

$

In Stock, only 1 left!

0

3

Snapper 7017145

WHEEL/RIM, 4.80/4.06x8 (3 hole) Gray
(Superseded to 7017145YP)

Note: Was 12162 (For 16x4.80-8 Tire)

$134.99

$

Usually ships in 2-12 days

0

3

Snapper 7012163

WHEEL/RIM, 5.375x8 (3 hole) Gray
(Superseded to 7012163YP)

Note: (For 16x6.50-8 and 16x7.50-8 Tire)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7011037

CLAMP, 1 7/8" Right Hand
(Superseded to 7012332YP)

Note: (8 & 10 HP)

$6.99

$

In Stock, Qty 15

0

5

Snapper 7014542

CLAMP, 2.69" Right Hand

Note: (11.5, 12.5,14, & 16 HP)

$

$

Not available

6

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7031732

CAP, Seal 1.0" ID x 1.67" OD Right Hand
(Superseded to 7031732YP)

Note: (8 & 10 HP)

$6.49

$

In Stock, Qty 20+

0

7

Snapper 7014541

CAP, Seal .93" ID x 2.625" OD Right Hand
(Superseded to 7014541YP)

Note: (11.5, 12.5, 14 & 16HP)

$

$

Not available

8

Snapper 7011817

SEAL, Oil 1.22" ID x 1.875" OD
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7040433

HUB, Rear Wheel (Right Hand) 1.126" ID
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 13

0

10

Snapper 7023895

CAP, Hub
(Superseded to 7023895YP)

$6.99

$

In Stock, Qty 8

0

11

Snapper 7014658

CAP, Seal L.H. 3/4" ID
(Superseded to 7014658YP)

Note: Was 10967 (Now 14658 + 14662 + 12332)

$7.99

$

In Stock, Qty 20+

0

12

Snapper 7040434

HUB, Rear Wheel .75" ID (Left Hand)
(Superseded to 7040434YP)

$

$

Not available

13

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7011013

BOLT, 5/16-24 x 2" Tapered (Right Hand)
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

16

Snapper 7014662

SEAL, Oil .750" ID x 1.832" OD (Left Hand)
(Superseded to 7014662YP)

$9.49

$

Usually ships in 2-12 days

0

17

Snapper 7012332

CLAMP, (Left Hand)
(Superseded to 7012332YP)

Note: (11.5, 12.5, 14 & 16HP)

$6.99

$

In Stock, Qty 15

0

18

Snapper 7014658

BOOT, (Left Hand)
(Superseded to 7014658YP)

Note: (11.5, 12.5, 14 & 16HP)

$7.99

$

In Stock, Qty 20+

0

19

Snapper 7023522

CAP, Hub (Left Hand)
(Superseded to 7023522YP)

$6.49

$

In Stock, only 2 left!

0
