R 322 TX AWD - Husqvarna Swedish Riding Mower FUEL SYSTEM Parts Diagram

Swedish Riding Mower

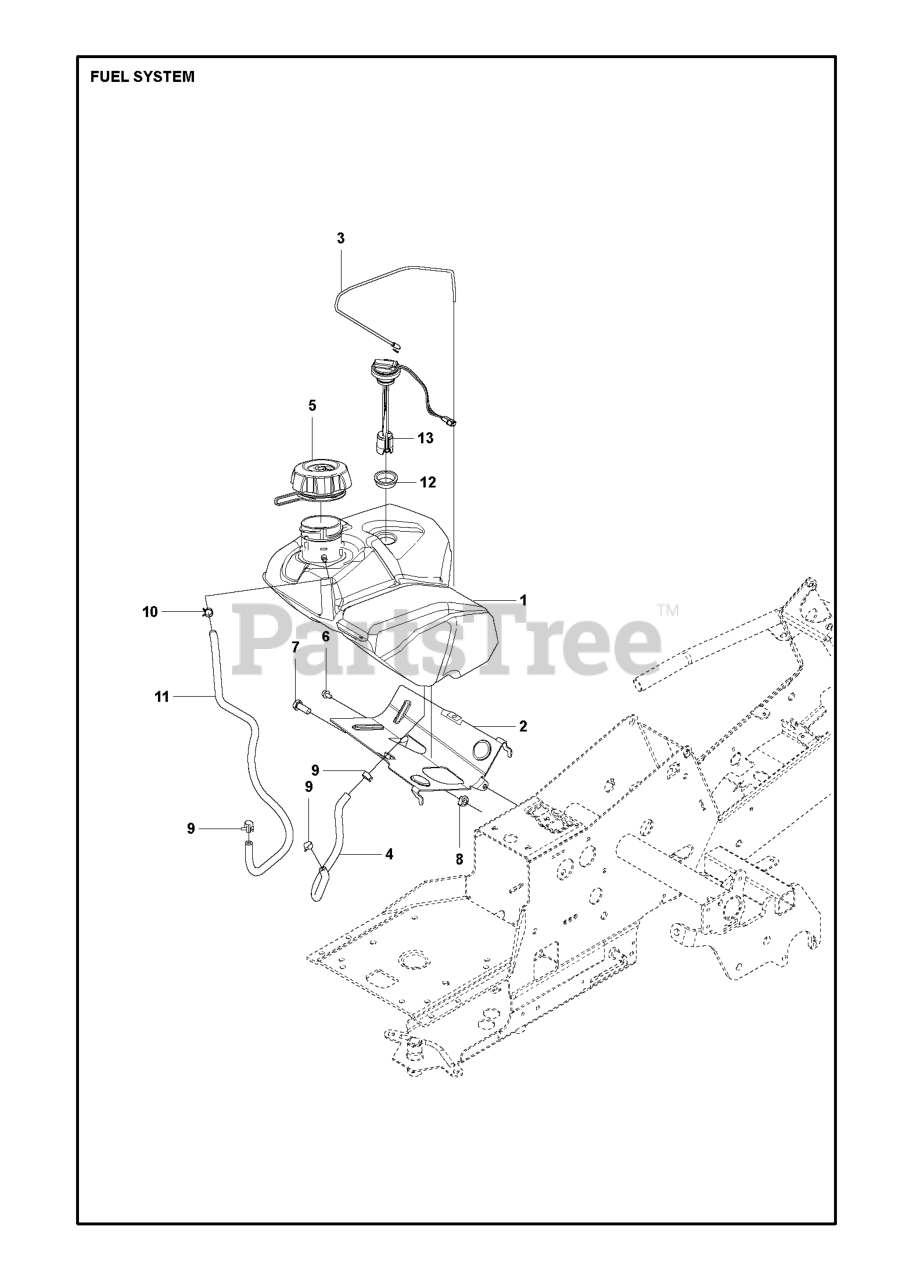

FUEL SYSTEM Parts Diagram

  • Title

5

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$53.99

$

In Stock, only 1 left!

0

6

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 504800010

FUEL HOSE

$

$

Not available

10

Husqvarna 544282604

HOSE CLAMP

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 725249371

Screw M10x25

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 504800011

FUEL HOSE

$

$

Not available

8

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

9

Husqvarna 535469701

CLAMP

$

$

Not available

12

Husqvarna 594059501

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 595102902

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 578053801

BRACKET

$37.99

$

Usually ships in 3-10 days

0

13

Husqvarna 594059701

NEEDS DESCRIPTION

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 578261501

WIRE

$9.49

$

Usually ships in 3-10 days

0
