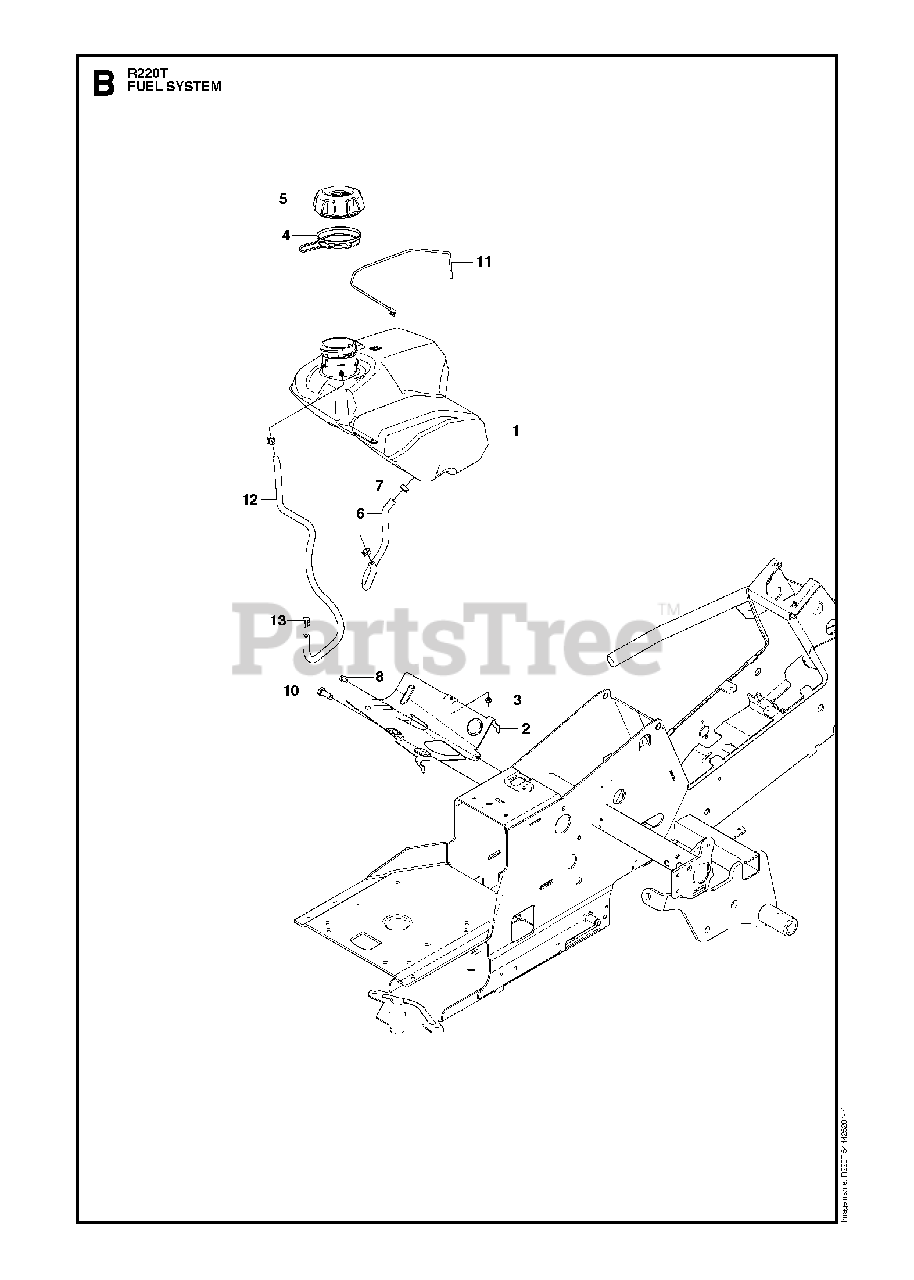

R 322 T AWD (966785801) - Husqvarna Swedish Riding Mower (2012-03) FUEL SYSTEM Parts Diagram

Swedish Riding Mower

FUEL SYSTEM Parts Diagram

  • Title

1

Husqvarna 577915002

FUEL TANK

$136.99

$

In Stock, only 1 left!

0

2

Husqvarna 578053801

BRACKET

$37.99

$

Usually ships in 3-10 days

0

3

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

4

Husqvarna 544282604

HOSE CLAMP

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$53.99

$

Usually ships in 3-10 days

0

6

Husqvarna 504800010

FUEL HOSE

$

$

Not available

7

Husqvarna 535469701

CLAMP

$

$

Not available

8

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 725249371

Screw, M10 X 25

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 578261501

WIRE

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 504800011

FUEL HOSE

$

$

Not available

13

Husqvarna 544282604

HOSE CLAMP

$4.99

$

Usually ships in 3-10 days

0
