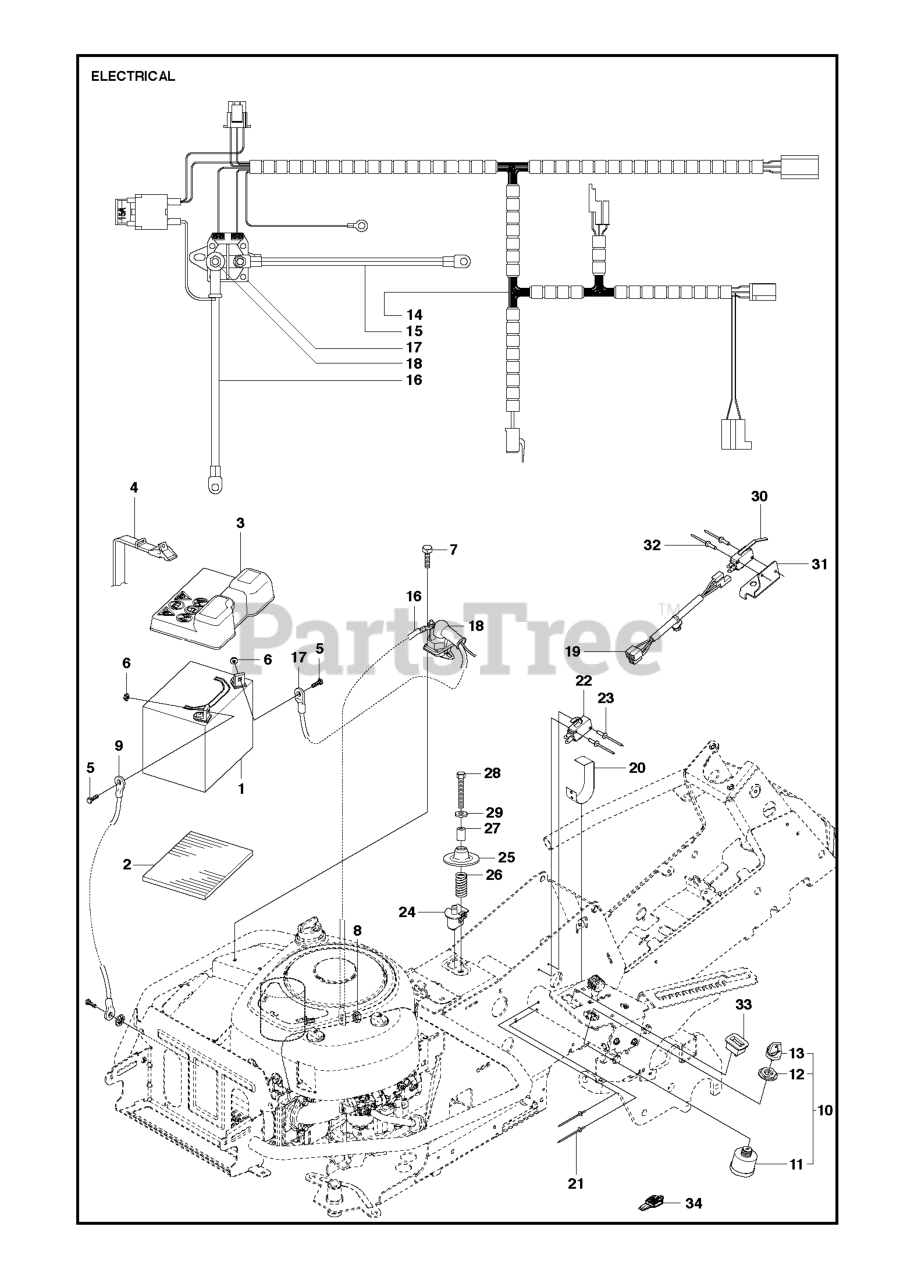

R 320 AWD (967291502) - Husqvarna Swedish Riding Mower (2018) ELECTRICAL Parts Diagram

Swedish Riding Mower

ELECTRICAL Parts Diagram

  • Title

$148.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506909902

SPACER TUBE

$4.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

$48.99

$

Usually ships in 3-10 days

0

28

Husqvarna 725246051

SCREW
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

$

$

Not available

$

$

Not available

$14.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

$

$

Not available

19

Husqvarna 576185401

WIRING
(Superseded to 544892201)

$26.99

$

Usually ships in 3-10 days

0

$14.99

$

In Stock, only 1 left!

0

$31.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522622101

SCREW EHHM

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

15

Husqvarna 576184001

CABLE
(Superseded to 586223901)

$27.99

$

Usually ships in 3-10 days

0

$

$

Not available

$20.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-10 days

0

$

$

Not available

29

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 544442101

IGNITION SWITCH

$28.99

$

Usually ships in 3-10 days

0

33

Husqvarna 578382401

HOUR METER
(Superseded to 587764301)

$85.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

31

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 574316101

MICRO SWITCH

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544442201

IGNITION SWITCH

$20.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 544442401

IGNITION KEY

$7.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

$

$

Not available

$

$

Not available
