R 320 AWD (967291501) - Husqvarna Swedish Riding Mower (2017) ENGINE Parts Diagram

Swedish Riding Mower

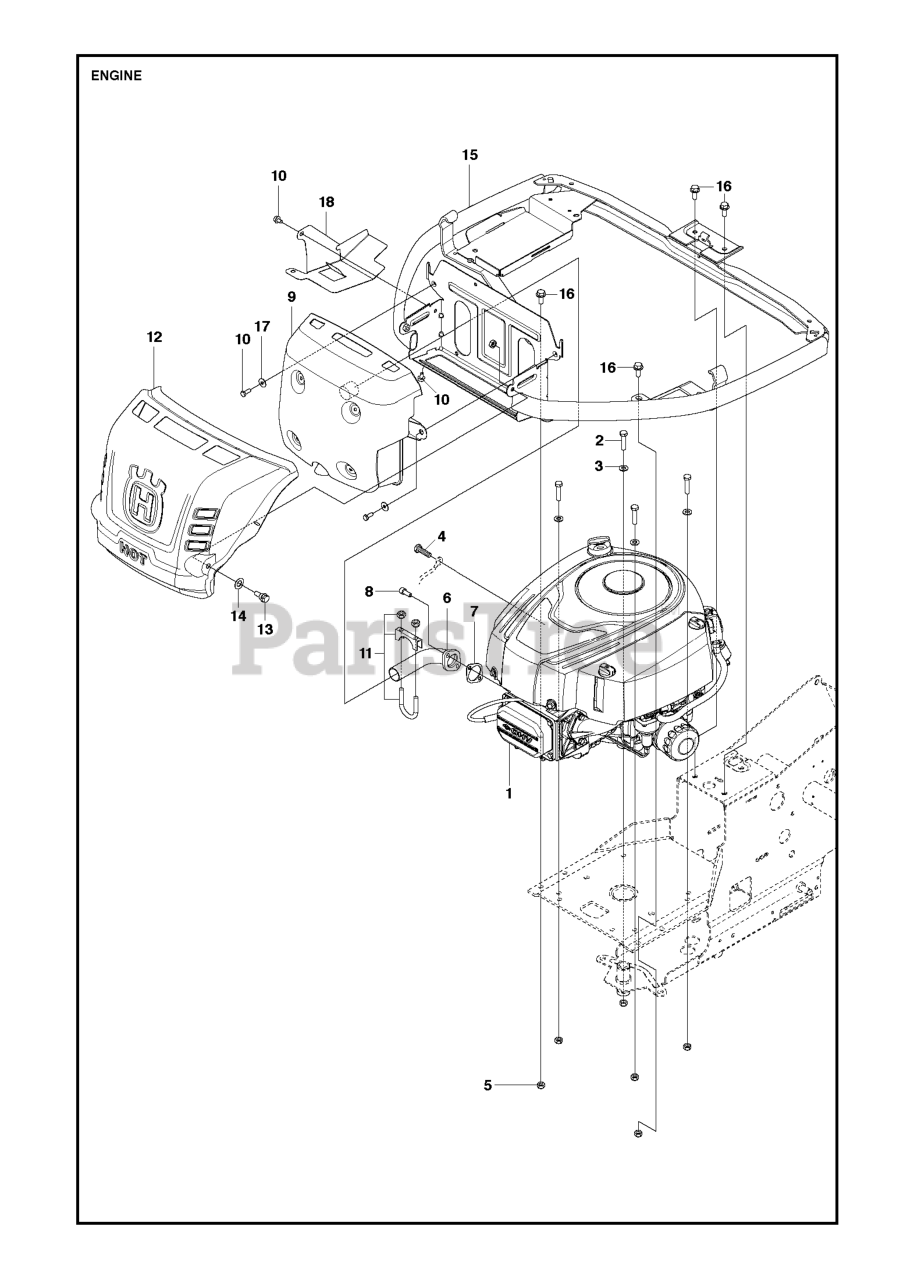

ENGINE Parts Diagram

  • Title

14

Husqvarna 506839401

SPRINGWASHER

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506668401

CLAMP
(Superseded to 501152201)

$3.49

$

In Stock, only 3 left!

0

2

Husqvarna 725245751

SCREW

$14.99

$

In Stock, only 1 left!

0

16

Husqvarna 506570104

BOLT

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 506914501

FLANGE

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$4.99

$

In Stock, Qty 7

0

4

Husqvarna 506556302

$

$

Not available

1

Husqvarna 578327101

$

$

Currently unavailable

15

Husqvarna 577849101

ENGINE FRAME

$341.99

$

Usually ships in 3-10 days

0

12

Husqvarna 579481601

RP HEAT SHIELD
(Superseded to 580991301)

$148.99

$

Usually ships in 3-10 days

0

18

Husqvarna 579529302

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 506556301

BOLT

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 6

0

9

Husqvarna 577813601

MUFFLER

$522.99

$

Usually ships in 3-10 days

0

6

Husqvarna 578054801

$

$

Currently unavailable

13

Husqvarna 506597401

BOLT

$6.99

$

In Stock, Qty 7

0
