R 316 TX AWD (970542801) - Husqvarna Swedish Riding Mower (2022-01) ENGINE Parts Diagram

Swedish Riding Mower

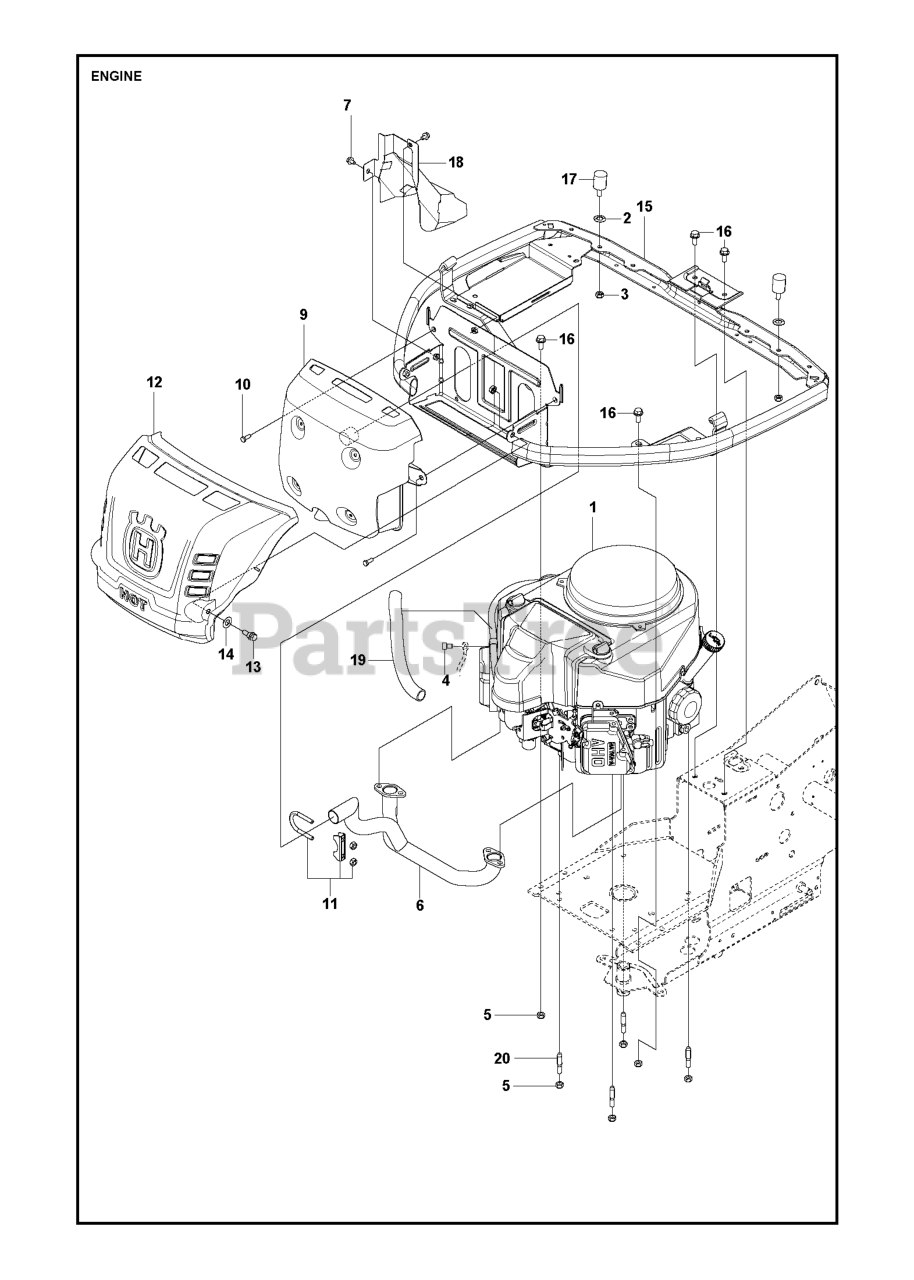

ENGINE Parts Diagram

  • Title

20

Husqvarna 578207501

STUD SCREW

$

$

Not available

3

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

10

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 725544701

SCREW IHSCM

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 578118801

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

11

Husqvarna 501152201

CLAMP ASSY EXHAUST

$3.49

$

In Stock, only 3 left!

0

9

Husqvarna 577813601

MUFFLER

$482.99

$

Usually ships in 3-10 days

0

15

Husqvarna 531442002

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 579396401

NEEDS DESCRIPTION

$

$

Not available

2

Husqvarna 506839401

SPRINGWASHER

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 544252103

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 535475212

SCREW EHHFM

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 506839401

SPRINGWASHER

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

1

Husqvarna 577823902

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 579314901

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 577818502

HEAT SHIELD

$96.99

$

Usually ships in 3-10 days

0
