R 316 T AWD - Husqvarna Swedish Riding Mower (Original) SEAT Parts Diagram

Swedish Riding Mower

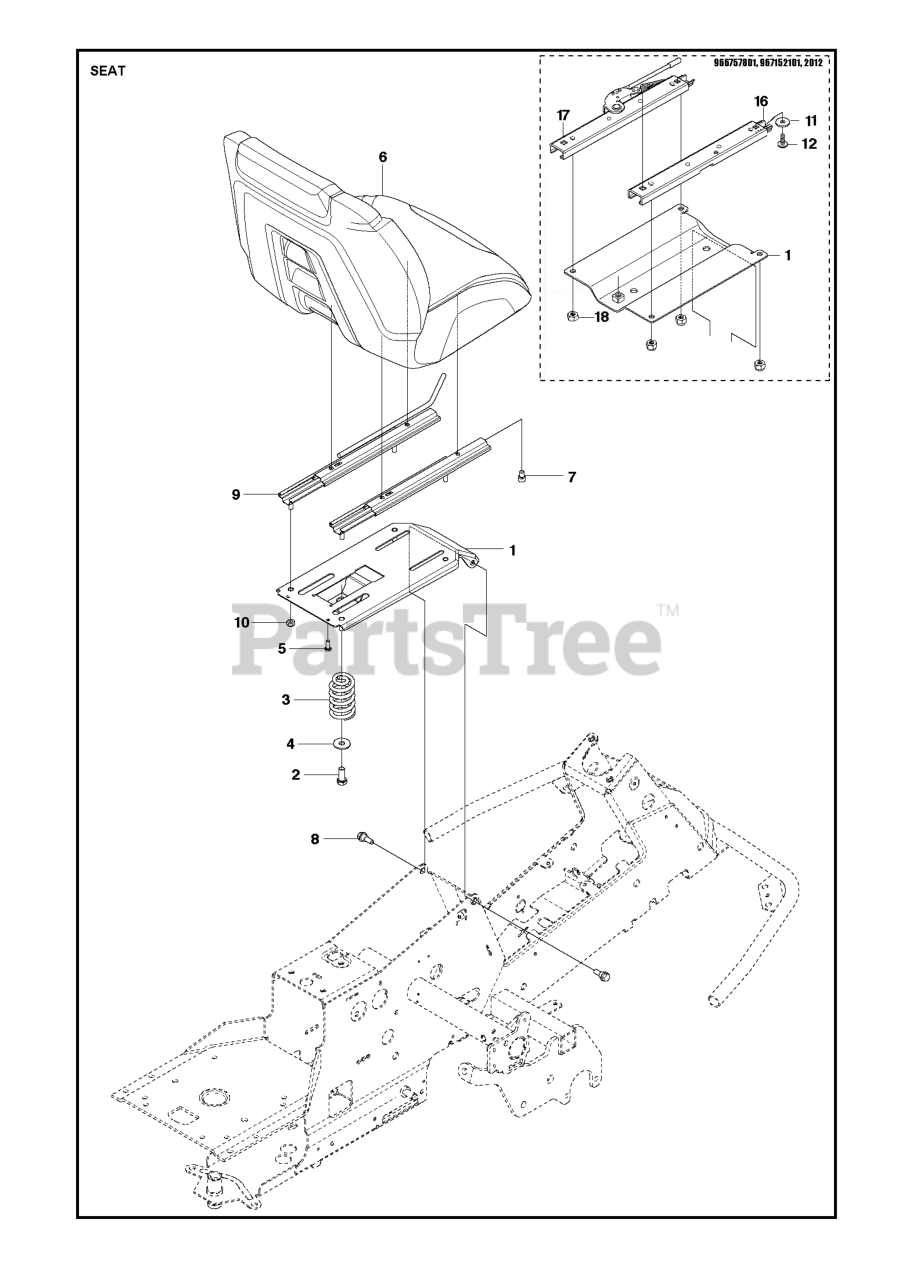

SEAT Parts Diagram

  • Title

6

Husqvarna 587393001

SEAT HUSQVARNA HIGH BACK
(Superseded to 589345801)

Note: Seat for newer models 2015 -->

$

$

Not available

1

Husqvarna 587152701

SEAT BRACKET 300 ASSY GREY
(Superseded to 501131501)

Note: For 967291701

$74.99

$

In Stock, only 1 left!

0

8

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

5

Husqvarna 725236861

SCREW
(Superseded to 535475212)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

9

Husqvarna 587290401

SEAT ADJUSTER LEFT & RIGHT

$62.99

$

Usually ships in 3-10 days

0

4

Husqvarna 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 725544701

SCREW IHSCM

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

Note: For 966757601, 967151901

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 506996901

RAIL

Note: For 966757601, 967151901

$

$

Not available

11

Husqvarna 535401801

WASHER
(Superseded to 506597501)

Note: For 966757601, 967151901

$

$

Not available

2

Husqvarna 725249371

Screw M10x25

$1.99

$

Usually ships in 3-10 days

0

1

Husqvarna 573995001

SEAT BRACKET
(Superseded to 501131501)

Note: For 966757601, 967151901

$74.99

$

In Stock, only 1 left!

0

18

Husqvarna 732211801

LOCKNUT M8

Note: For 966757601, 967151901

$4.99

$

In Stock, Qty 12

0

17

Husqvarna 506996902

RAIL

Note: For 967291701 - 2015, 966757601 & 967151901

$

$

Not available

6

Husqvarna 587605303

SEAT ASSY KIT HIGH HVA

Note: Seat kit for old models between 2012-2014, B1500005

$

$

Not available

3

Husqvarna 506915301

SEAT SPRING

$20.99

$

Usually ships in 3-10 days

0
