R-3 (990939) - Homelite Tiller, 3hp Frame, Handles and Controls Group (3836I01) Parts Diagram

Tiller, 3hp

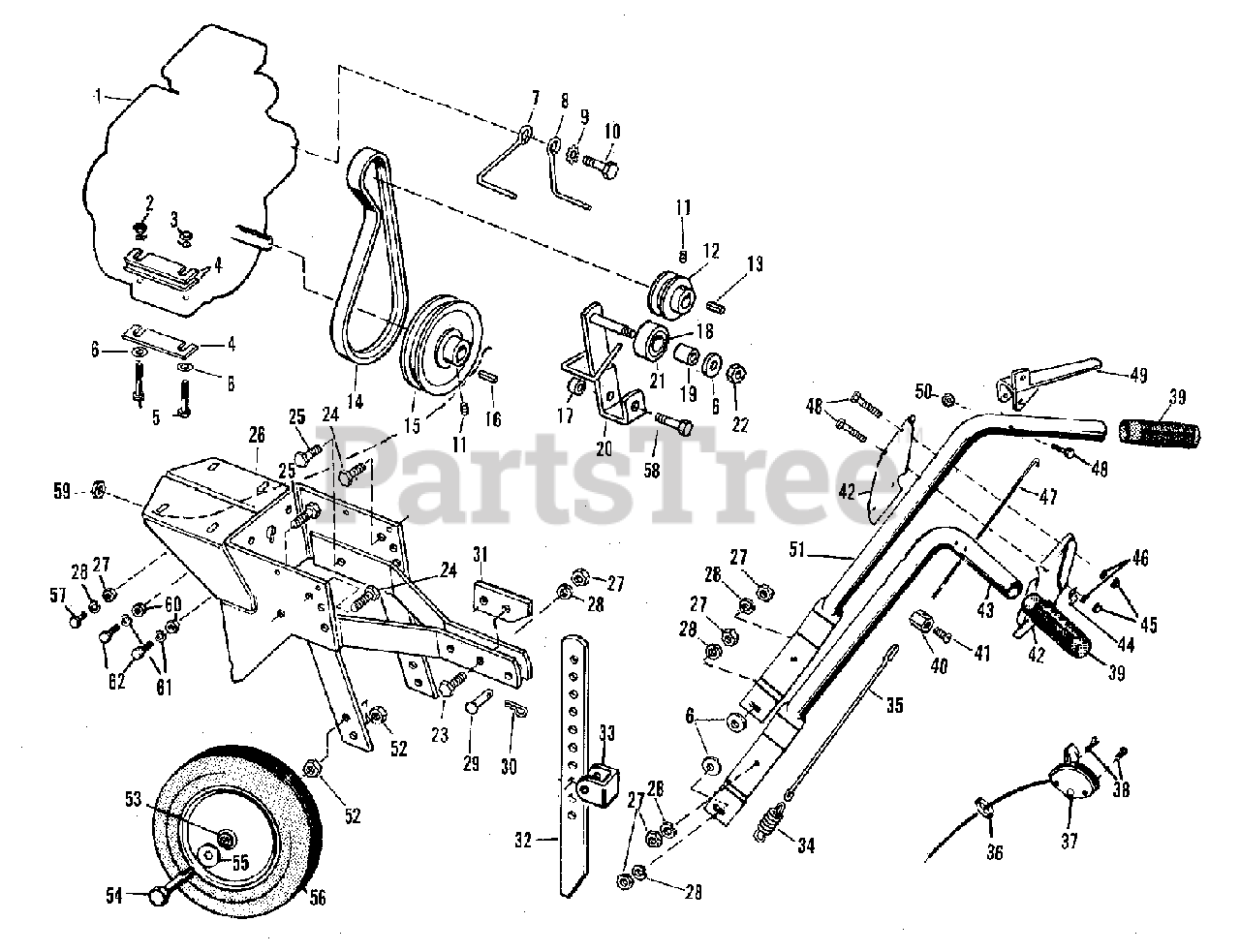

Frame, Handles and Controls Group (3836I01) Parts Diagram

  • Title

1

ENGINE, 3 H.P.

$

$

Not available

2

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

3

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

4

Simplicity LM-01184-63

SHIM, Engine

$

$

Not available

5

Simplicity LM-09193-54

SCREW, Hex, Cap, 5/16-18 x 2

$

$

Not available

6

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

7

Simplicity LM-01180-37

BELT, Stop

$

$

Not available

8

Simplicity LM-01065-45

BELT, Stop

$

$

Not available

9

Simplicity LM-09095-89

WASHER, Lock 1/2

$

$

Not available

10

Simplicity LM-09213-70

SCREW, Hex Cap, 1/2-20 x 1

$

$

Not available

11

Simplicity LM-09286-91

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

12

Simplicity LM-01180-27

PULLEY, Engine

$

$

Not available

13

Simplicity LM-80610-81

KEY

$

$

Not available

14

Simplicity LM-01183-12

BELT, "V"

$

$

Not available

15

Simplicity LM-01184-70

PULLEY, Driven

$

$

Not available

16

Simplicity LM-01184-39

KEY

$

$

Not available

17

Simplicity LM-01184-72

SPACER

$

$

Not available

18

Simplicity LM-81910-20

SPACER

$

$

Not available

19

Simplicity LM-01727-51

LEVER, Idler

$

$

Not available

20

Simplicity LM-01010-02

PULLEY, Idler

$

$

Not available

21

Simplicity LM-81612-43

BUSHING

$

$

Not available

22

Simplicity LM-09287-31

NUT, Hex Lock, 3/8-16

$

$

Not available

23

Simplicity LM-09193-60

SCREW, Hex Cap, 3/8-16 x 1-1/2

$

$

Not available

24

Simplicity LM-09193-57

SCREW, Hex Cap, 3/8-16 x 7/8

$

$

Not available

25

Simplicity LM-09174-00

SCREW, Hex Cap, 3/8-16 x 1-1/4

$

$

Not available

26

Simplicity LM-01708-79

BODY

$

$

Not available

27

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

28

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

29

Simplicity LM-01052-49

PIN, Inner

$

$

Not available

30

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

31

Simplicity LM-01182-07

PLATE, Stop

$

$

Not available

32

Simplicity LM-01180-81

BAR, Depth

$

$

Not available

33

Simplicity LM-01184-47

CLAMP

$

$

Not available

34

Simplicity LM-01184-95

SPRING

$

$

Not available

35

Simplicity LM-01184-55

WIRE, Extension

$

$

Not available

36

Simplicity LM-80611-08

CLIP, Cable

$

$

Not available

37

Simplicity LM-01183-00

CONTROL, Throttle

$

$

Not available

38

Simplicity LM-09287-32

SCREW, Self Tapping, 10-24 x 1

$

$

Not available

39

Simplicity LM-01065-58

GRIP, Handle

$

$

Not available

40

Simplicity LM-01610-92

CLAMP, Wire

$

$

Not available

41

Simplicity LM-09160-79

SCREW, Round, 10-24 x 3/8

$

$

Not available

42

Simplicity LM-01182-98

COVER, Handle, (Upper)

$

$

Not available

43

Simplicity LM-01184-66

HANDLE, L.H.

$

$

Not available

44

Simplicity LM-01067-86

CLAMP, Cable

$

$

Not available

45

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

46

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

47

Simplicity LM-01610-90

SPRING, Extension

$

$

Not available

48

Simplicity LM-09182-40

SCREW, Hex Cap, 1/4-20 x 1-1/2

$

$

Not available

49

Simplicity LM-01184-31

GRIP, Clutch

$

$

Not available

50

Simplicity LM-09233-58

NUT, Hex, Lock, 1/4-20

$

$

Not available

51

Simplicity LM-01184-67

HANDLE, R.H.

$

$

Not available

52

Simplicity LM-09105-10

NUT, Hex, 1/2-13

$

$

Not available

53

Simplicity LM-09202-07

SCREW, Hex, Cap, 1/2-13 x 3

$

$

Not available

54

Simplicity LM-09184-31

WASHER, Flat, 1/2

$

$

Not available

55

Simplicity LM-01184-69

WHEEL & TIRE

$

$

Not available

56

Simplicity LM-01181-32

BUSHING, Wheel

$

$

Not available

57

Simplicity LM-09081-27

SCREW, Hex, Cap, 3/8-16 x 3/4

$

$

Not available

58

Simplicity LM-01713-37

BOLT, Pivot

$

$

Not available

59

Simplicity LM-09257-63

NUT, Special, 5/16-18

$

$

Not available

60

Simplicity LM-09139-01

NUT, Hex, 7/16-20

$

$

Not available

61

Simplicity LM-09181-99

WASHER, Lock, 7/16"

$

$

Not available

62

Simplicity LM-09280-38

SCREW, Hex, Cap, 7/16-20 x 1-1/4

$

$

Not available
