R 220 T (966785701) - Husqvarna Swedish Riding Mower (2012-03) 112CM CUTTING DECK Parts Diagram

Swedish Riding Mower

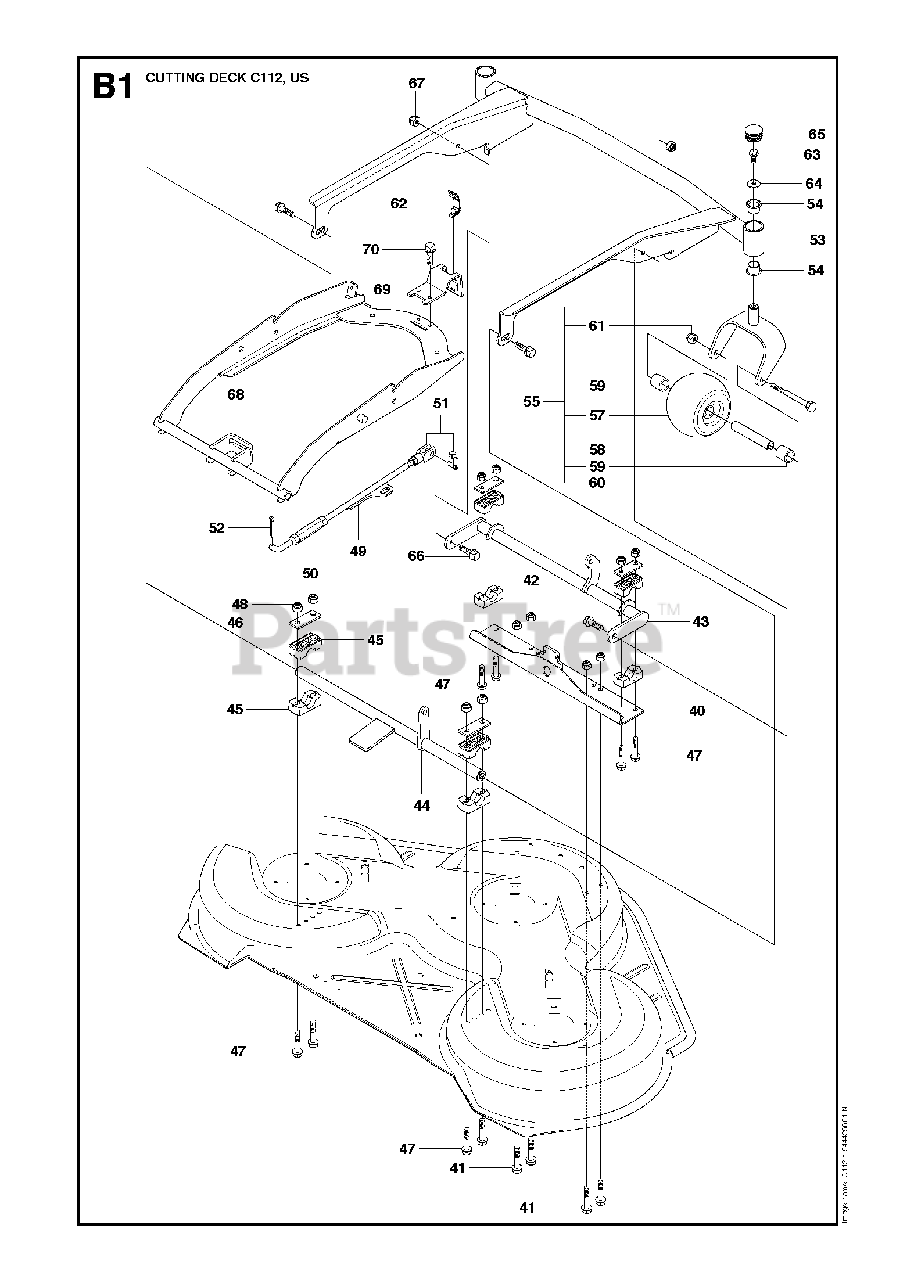

112CM CUTTING DECK Parts Diagram

  • Title

40

Husqvarna 523095301

Bracket

$74.99

$

Usually ships in 3-10 days

0

41

Husqvarna 725245171

Screw

$1.49

$

In Stock, Qty 5

0

42

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

43

Husqvarna 502641805

CROSS BAR

$51.99

$

Usually ships in 3-10 days

0

44

Husqvarna 523094503

CROSS BAR

$68.99

$

In Stock, only 1 left!

0

45

Husqvarna 506869601

BEARING

$

$

Not available

46

Husqvarna 506813801

PLATE

$6.99

$

Usually ships in 3-10 days

0

47

Husqvarna 725246151

BOLT

$5.99

$

In Stock, only 1 left!

0

48

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

49

Husqvarna 523114201

PARALLELL ROD ASSY

$56.99

$

Usually ships in 3-10 days

0

50

Husqvarna 502642301

PARALLEL ROD

$

$

Not available

51

Husqvarna 506839802

JOINT CPL

$19.00

$

Usually ships in 3-10 days

0

52

Husqvarna 721618301

SPLIT PIN

$

$

Not available

53

Husqvarna 523086503

DECK FRAME
(Superseded to 523086507)

$265.99

$

Usually ships in 3-10 days

0

54

Husqvarna 574561901

BEARING

$6.99

$

In Stock, Qty 11

0

55

Husqvarna 574210101

PIVOT WHEEL ASSY

$

$

Not available

57

Husqvarna 506963001

DECK ROLLER, FRONT

$62.99

$

In Stock, Qty 14

0

58

Husqvarna 506810802

PIPE

$9.49

$

In Stock, only 2 left!

0

59

Husqvarna 506874102

SPACER

$6.99

$

Usually ships in 3-10 days

0

60

Husqvarna 725251951

BOLT

$12.99

$

In Stock, only 1 left!

0

61

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 503894703

CLIP GRAY
(Superseded to 595303003)

$10.99

$

In Stock, only 4 left!

0

63

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

64

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 574034801

PLUG

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

67

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

68

Husqvarna 523087501

DECK ATTACHMENT

$136.99

$

Usually ships in 3-10 days

0

69

Husqvarna 523114601

LOCK

$11.99

$

Usually ships in 3-10 days

0

70

Husqvarna 725236861

Screw
(Superseded to 535475212)

$6.49

$

Usually ships in 3-10 days

0
