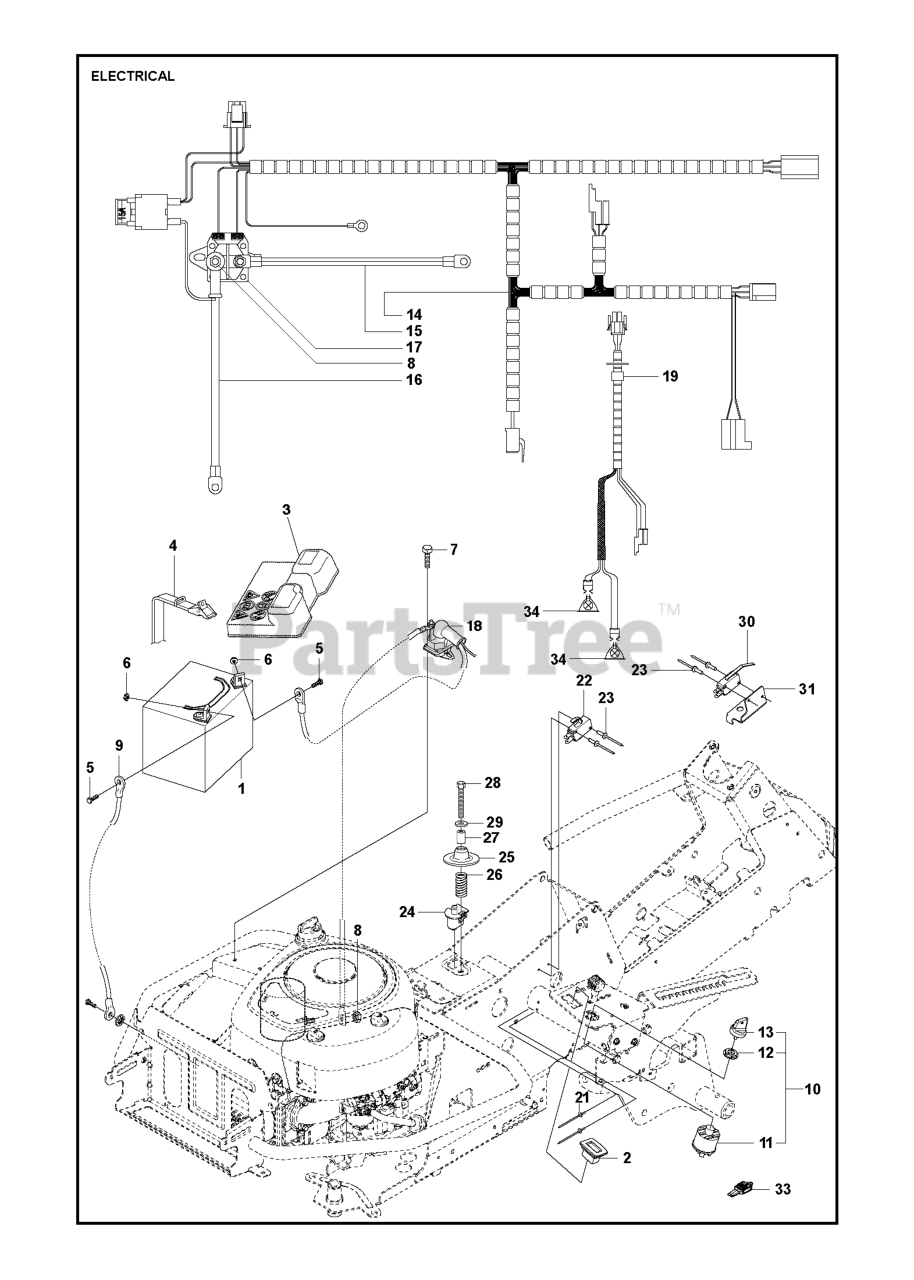

R 216 - Husqvarna Swedish Riding Mower (Original) ELECTRICAL Parts Diagram

Swedish Riding Mower

ELECTRICAL Parts Diagram

  • Title
2

Husqvarna 587764301

HOUR METER

$85.99

$

Usually ships in 3-10 days

0

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 579434301

IGNITION SWITCH

Note: For 967846702

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 722783902

Rivet

Note: For 967291102, 967291101, 967150601, 966757001

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 578200601

COVER

Note: For 967291101, 967150601, 966757001

$

$

Not available

$148.99

$

Usually ships in 3-10 days

0

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 578261701

IGNITION SWITCH

Note: For 967846702

$22.99

$

In Stock, only 1 left!

0

$51.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 544442201

IGNITION SWITCH

Note: For 967291102, 967291101, 967150601, 966757001

$20.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506899801

NUT

Note: For 966757001

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 725246451

SCREW

Note: For 967846702

$1.99

$

Usually ships in 3-10 days

0

$20.99

$

In Stock, only 1 left!

0

27

Husqvarna 506909902

SPACER TUBE

Note: For 967291102, 967291101, 967150601, 966757001

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Currently unavailable

22

Husqvarna 574316101

MICRO SWITCH

Note: For 967846702

$13.99

$

Usually ships in 3-10 days

0

29

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

28

Husqvarna 725246051

SCREW
(Superseded to 725246351)

Note: For 967291102, 967291101, 967150601, 966757001

$5.99

$

In Stock, only 4 left!

0

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522622101

SCREW EHHM

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

31

$5.99

$

Usually ships in 3-10 days

0

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 586223901

WIRE BATTERY

$27.99

$

Usually ships in 3-10 days

0

13

Husqvarna 544442401

IGNITION KEY

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574316001

SWITCH

Note: For 967291102, 967291101, 967150601, 966757001

$14.99

$

In Stock, only 1 left!

0

30

Husqvarna 574316101

MICRO SWITCH

$13.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

10

Husqvarna 544442101

IGNITION SWITCH

Note: For 967291102, 967291101, 967150601, 966757001

$28.99

$

Usually ships in 3-10 days

0
