R 216 - Husqvarna Swedish Riding Mower (2017-07) CHASSIS REAR 10 Parts Diagram

Swedish Riding Mower

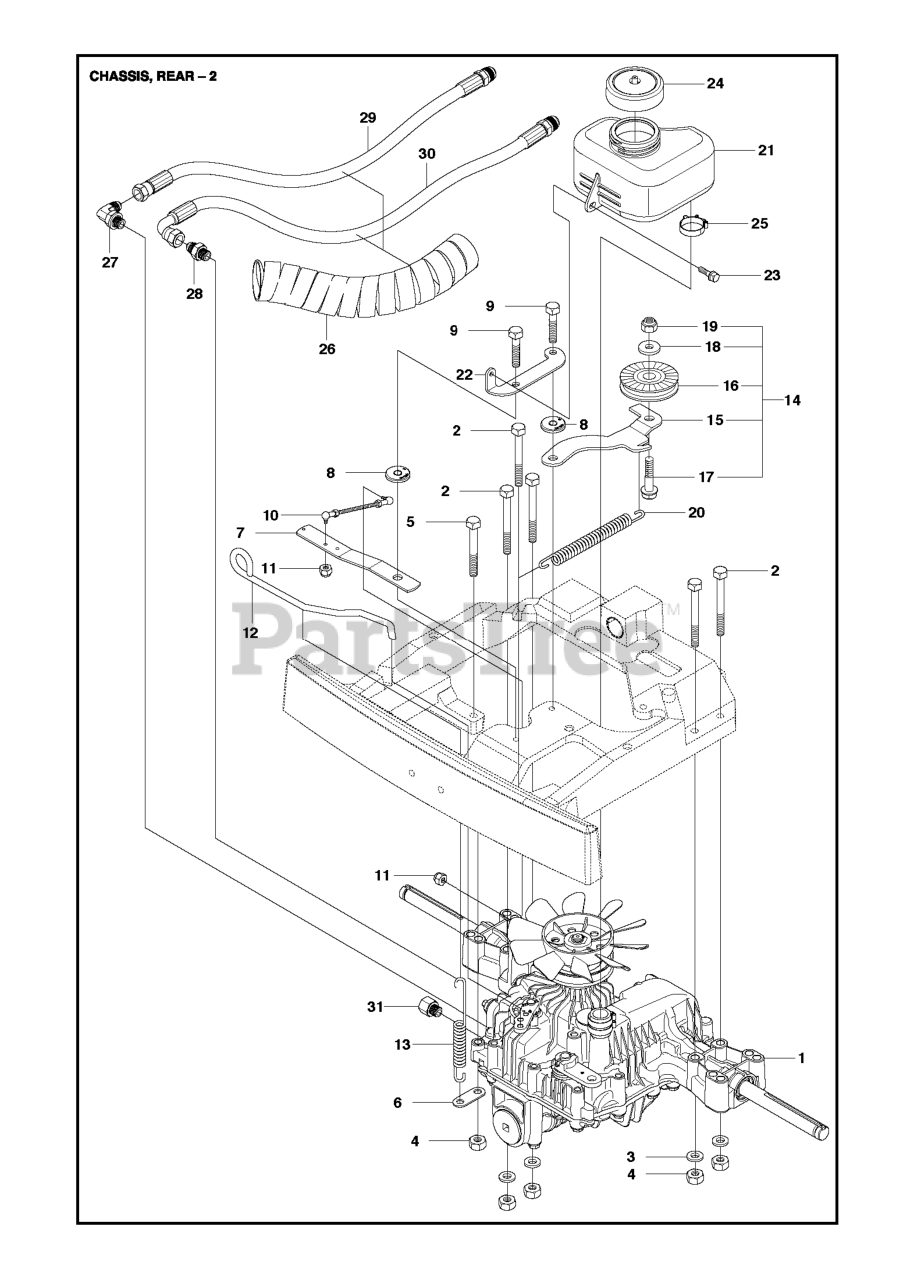

CHASSIS REAR 10 Parts Diagram

  • Title

25

Husqvarna 505131102

HOSE CLAMP 20-32

$5.99

$

In Stock, only 1 left!

0

31

Husqvarna 504567401

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

6

Husqvarna 506599301

CONNECTOR

$

$

Not available

15

Husqvarna 588740401

BELT TENSIONER ARM

$17.99

$

Usually ships in 3-10 days

0

19

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

28

Husqvarna 535426805

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 535437304

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 535450402

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 506988401

TENSIONER

$62.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506987501

ROD

$37.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506834301

SPRING

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590716901

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 544121701

BRACKET

$7.99

$

Usually ships in 3-10 days

0

24

Husqvarna 506673301

FUEL CAP

$31.99

$

Usually ships in 3-10 days

0

2

Husqvarna 725246751

Hex Bolt

$1.49

$

Usually ships in 3-10 days

0

8

Husqvarna 584288604

Washers

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 725245551

SCREW
(Superseded to 725245571)

$4.99

$

In Stock, Qty 10

0

5

Husqvarna 725246251

SCREW

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506946901

PULLEY

$39.99

$

In Stock, only 1 left!

0

7

Husqvarna 579596801

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 506988201

Rod

$

$

Not available

23

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 544100101

TANK

$

$

Not available

3

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

26

Husqvarna 544026603

HOSE GUARD D=43 L=400

$

$

Not available

11

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

20

Husqvarna 506988601

SPRING

$

$

Not available

30

Husqvarna 535450302

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 725245171

SCREW

$1.49

$

In Stock, Qty 5

0
