R 216 AWD (966757101) - Husqvarna Swedish Riding Mower (2012) 103CM CUTTING DECK Parts Diagram

Swedish Riding Mower

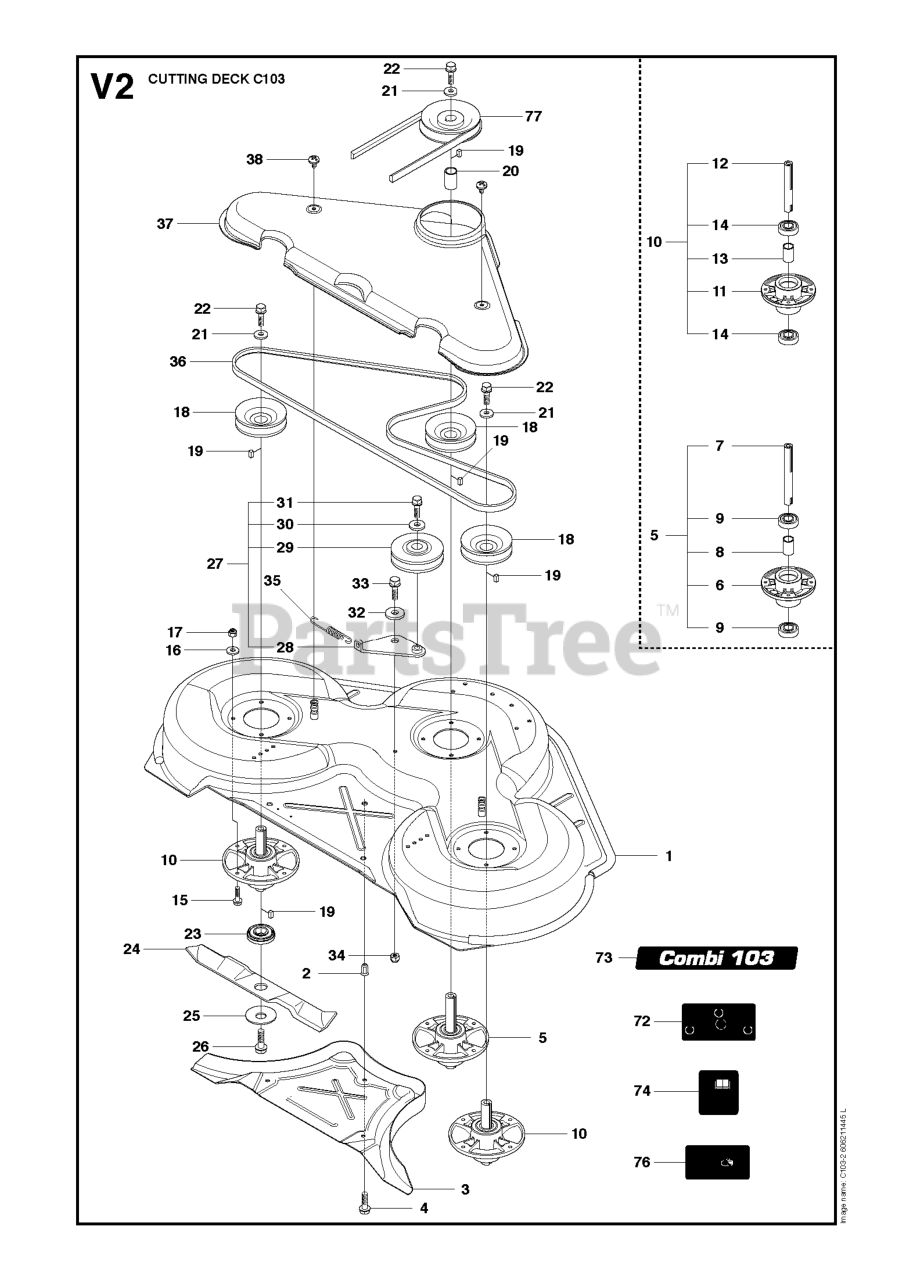

103CM CUTTING DECK Parts Diagram

  • Title

33

Husqvarna 725245171

SCREW

$1.99

$

In Stock, Qty 5

0

8

Husqvarna 576384401

SPACING SLEEVE

$

$

Not available

37

Husqvarna 544096101

COVER

$

$

Not available

23

Husqvarna 535504202

ADAPTER

$26.99

$

Usually ships in 3-10 days

0

38

Husqvarna 544400501

SCREW

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 576384102

BLADE HOUSING ASSY

$102.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506540701

BELT TENSIONER ASSY
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

34

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 6

0

5

Husqvarna 576384103

$

$

Not available

32

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

73

Husqvarna 544238103

DECAL

$

$

Not available

76

Husqvarna 574510001

DECAL

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 576384303

$

$

Not available

74

Husqvarna 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0

17

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 6

0

16

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

31

Husqvarna 506558302

BOLT

$6.99

$

In Stock, only 1 left!

0

36

Husqvarna 589530601

BELT

$68.99

$

In Stock, Qty 5

0

2

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 544068003

SPACING SLEEVE

$

$

Not available

28

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

24

Husqvarna 504188210

BLADE

$34.99

$

In Stock, Qty 18

0

3

Husqvarna 544449201

PLUG

$74.99

$

In Stock, only 1 left!

0

21

Husqvarna 734117441

WASHER

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

1

Husqvarna 504569805

$

$

Currently unavailable

13

Husqvarna 576384401

SPACING SLEEVE

$

$

Not available

4

Husqvarna 506570104

BOLT

$7.49

$

In Stock, only 1 left!

0

77

Husqvarna 506778601

PULLEY

$62.99

$

Usually ships in 3-10 days

0

72

Husqvarna 506789701

Decal

$

$

Not available

25

Husqvarna 506792301

WASHER
(Superseded to 588145601)

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 576384302

SHAFT

$

$

Not available

29

Husqvarna 506532701

PULLEY

$51.99

$

In Stock, only 1 left!

0

22

Husqvarna 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

9

Husqvarna 738230434

BEARING

$22.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 738230434

BEARING

$22.99

$

Usually ships in 3-10 days

0

30

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 506533101

SPRING

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 576384201

BEARING HOUSING

$

$

Not available

6

Husqvarna 576384201

BEARING HOUSING

$

$

Not available

18

Husqvarna 506922101

PULLEY

$39.99

$

In Stock, only 1 left!

0
