R 216 (967291101) - Husqvarna Swedish Riding Mower (2015) 94CM CUTTING DECK Parts Diagram

Swedish Riding Mower

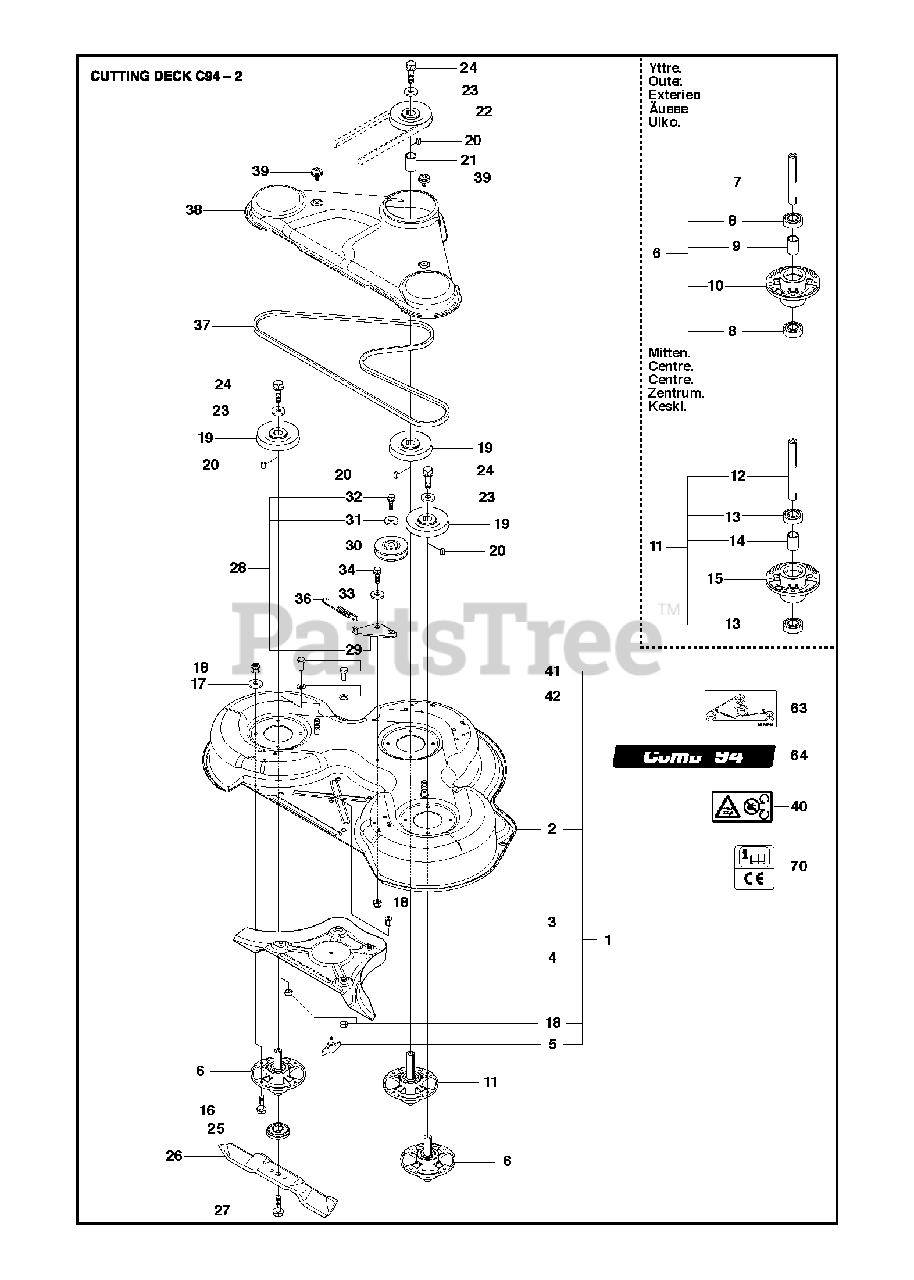

94CM CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 581265501

$

$

Currently unavailable

2

Husqvarna 581237404

Note: . 1

$

$

Currently unavailable

3

Husqvarna 506916201

NUT

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 544065801

PLUG C93 & C94

Note: . 1

$

$

Not available

5

Husqvarna 544066101

KNOB

Note: . 1

$

$

Not available

6

Husqvarna 576384102

BLADE HOUSING ASSY

$91.99

$

Usually ships in 3-10 days

0

7

Husqvarna 576384302

SHAFT

Note: . 6

$

$

Not available

8

Husqvarna 738230434

BEARING

Note: . 6

$20.99

$

Usually ships in 3-10 days

0

9

Husqvarna 576384401

SPACING SLEEVE

Note: . 6

$

$

Not available

10

Husqvarna 576384201

BEARING HOUSING

Note: . 6

$

$

Not available

11

Husqvarna 576384103

$

$

Not available

12

Husqvarna 576384303

Note: . 11

$

$

Not available

13

Husqvarna 738230434

BEARING

Note: . 11

$20.99

$

Usually ships in 3-10 days

0

14

Husqvarna 576384401

SPACING SLEEVE

Note: . 11

$

$

Not available

15

Husqvarna 576384201

BEARING HOUSING

Note: . 11

$

$

Not available

16

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

18

Husqvarna 732211801

LOCKNUT M8

Note: . 1

$4.99

$

In Stock, Qty 12

0

19

Husqvarna 506922101

PULLEY

$39.99

$

In Stock, only 1 left!

0

20

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 544068003

SPACING SLEEVE

$

$

Not available

22

Husqvarna 506778601

PULLEY

$56.99

$

Usually ships in 3-10 days

0

23

Husqvarna 734117441

WASHER

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 506675402

BOLT

$6.99

$

In Stock, only 3 left!

0

25

Husqvarna 544064901

BLADE BRACKET

$9.49

$

Usually ships in 3-10 days

0

26

Husqvarna 579652510

BLADE

$26.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506675402

BOLT

$6.99

$

In Stock, only 3 left!

0

28

Husqvarna 506797301

$

$

Not available

29

Husqvarna 506797101

BRACKET

Note: . 28

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 506793201

PULLEY
(Superseded to 586964001)

Note: . 28

$39.99

$

Usually ships in 3-10 days

0

31

Husqvarna 734116441

SPACER

Note: . 28

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 506558302

BOLT

Note: . 28

$4.99

$

In Stock, only 1 left!

0

33

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

34

Husqvarna 725245171

Screw

$1.49

$

In Stock, Qty 5

0

36

Husqvarna 506533101

SPRING

$11.99

$

Usually ships in 3-10 days

0

37

Husqvarna 505208601

$

$

Not available

38

Husqvarna 522821903

$

$

Currently unavailable

39

Husqvarna 544400501

SCREW

$4.99

$

In Stock, only 4 left!

0

40

Husqvarna 574510001

DECAL

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 725245171

Screw

Note: . 1

$1.49

$

In Stock, Qty 5

0

42

Husqvarna 734116401

WASHER BRB 8.4X17

Note: . 1

$6.99

$

In Stock, only 4 left!

0

63

Husqvarna 506789701

DECAL

$

$

Not available

64

Husqvarna 544238101

$

$

Currently unavailable

70

Husqvarna 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0
