R 216 (967291101) - Husqvarna Swedish Riding Mower (2015) 103CM CUTTING DECK Parts Diagram

Swedish Riding Mower

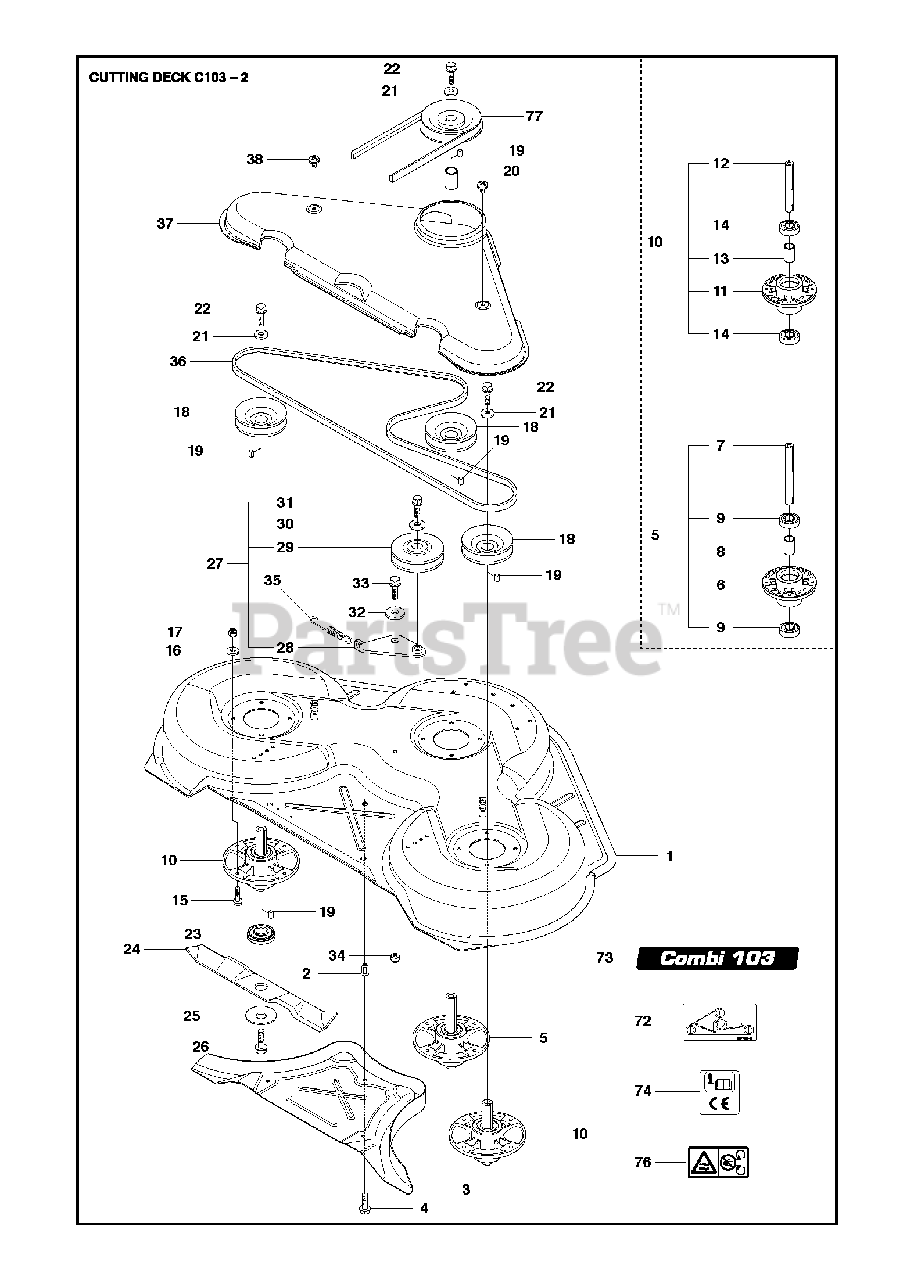

103CM CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 504569805

$

$

Currently unavailable

2

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 544449201

PLUG

$74.99

$

In Stock, only 1 left!

0

4

Husqvarna 506570104

BOLT

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 576384103

$

$

Not available

6

Husqvarna 576384201

BEARING HOUSING

Note: . 5

$

$

Not available

7

Husqvarna 576384303

Note: . 5

$

$

Not available

8

Husqvarna 576384401

SPACING SLEEVE

Note: . 5

$

$

Not available

9

Husqvarna 738230434

BEARING

Note: . 5

$22.99

$

Usually ships in 3-10 days

0

10

Husqvarna 576384102

BLADE HOUSING ASSY

$102.99

$

Usually ships in 3-10 days

0

11

Husqvarna 576384201

BEARING HOUSING

Note: . 10

$

$

Not available

12

Husqvarna 576384302

SHAFT

Note: . 10

$

$

Not available

13

Husqvarna 576384401

SPACING SLEEVE

Note: . 10

$

$

Not available

14

Husqvarna 738230434

BEARING

Note: . 10

$22.99

$

Usually ships in 3-10 days

0

15

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 8

0

18

Husqvarna 506922101

PULLEY

$39.99

$

In Stock, only 1 left!

0

19

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 544068003

SPACING SLEEVE

$

$

Not available

21

Husqvarna 734117441

WASHER

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

23

Husqvarna 535504202

ADAPTER

$26.99

$

Usually ships in 3-10 days

0

24

Husqvarna 504188210

BLADE

$34.99

$

In Stock, Qty 18

0

25

Husqvarna 506792301

WASHER
(Superseded to 588145601)

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

27

Husqvarna 506540701

BELT TENSIONER ASSY
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

28

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

Note: . 27

$91.99

$

Usually ships in 3-10 days

0

29

Husqvarna 506532701

PULLEY

Note: . 27

$51.99

$

In Stock, only 1 left!

0

30

Husqvarna 734116441

SPACER

Note: . 27

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 506558302

BOLT

Note: . 27

$6.99

$

In Stock, only 1 left!

0

32

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

33

Husqvarna 725245171

Screw

$1.99

$

In Stock, Qty 5

0

34

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 8

0

35

Husqvarna 506533101

SPRING

$13.99

$

Usually ships in 3-10 days

0

36

Husqvarna 506768501

BELT
(Superseded to 589530601)

$68.99

$

In Stock, Qty 5

0

37

Husqvarna 585070701

$

$

Currently unavailable

38

Husqvarna 544400501

SCREW

$4.99

$

In Stock, only 4 left!

0

72

Husqvarna 506789701

DECAL

$

$

Not available

73

Husqvarna 544238103

DECAL

$

$

Not available

74

Husqvarna 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0

76

Husqvarna 574510001

DECAL

$3.49

$

Usually ships in 3-10 days

0

77

Husqvarna 506778601

PULLEY

$62.99

$

Usually ships in 3-10 days

0
