R 213 C - Husqvarna Swedish Riding Mower (Original) STEERING Parts Diagram

Swedish Riding Mower

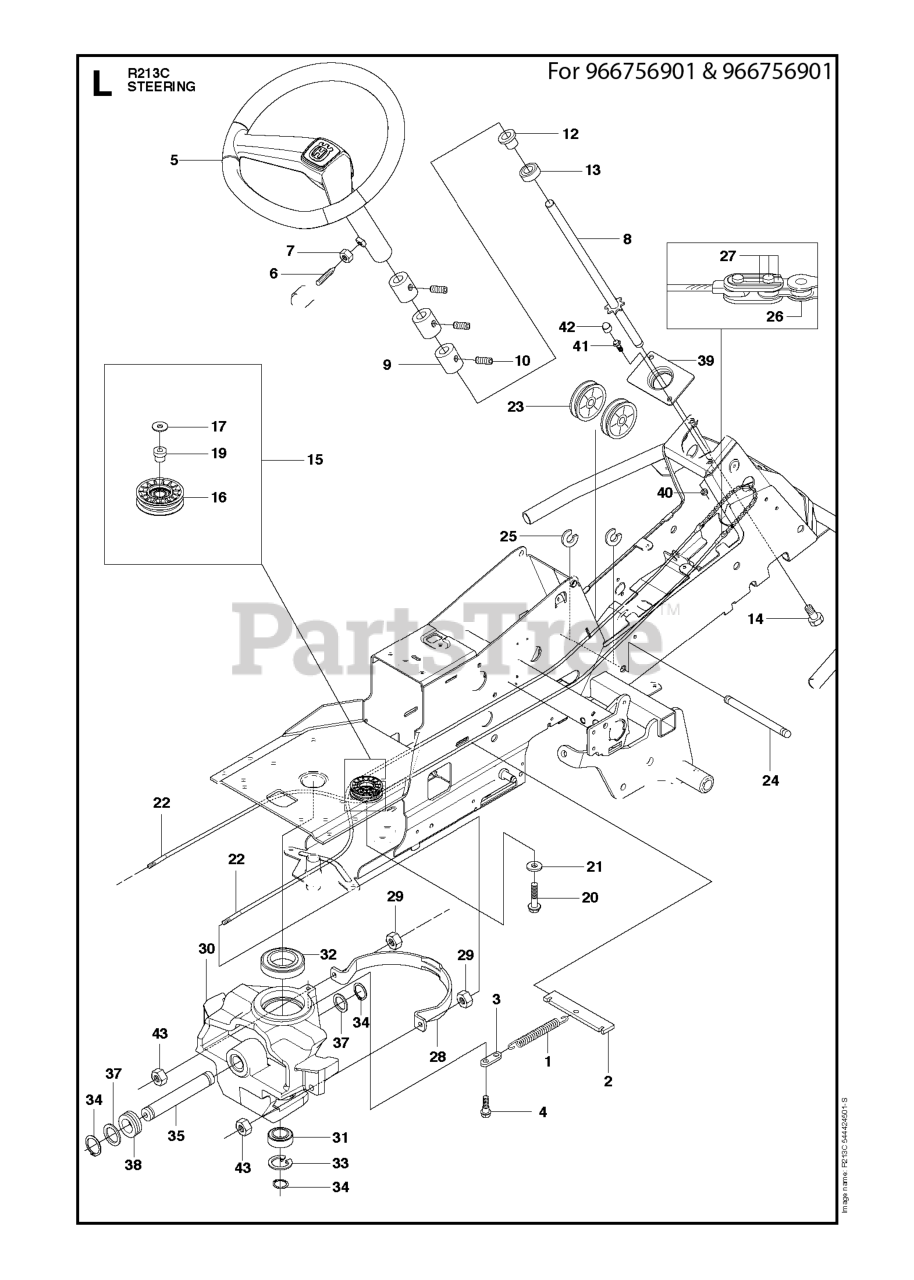

STEERING Parts Diagram

  • Title

27

Husqvarna 506554701

LINK

$5.99

$

In Stock, only 1 left!

0

10

Husqvarna 728844305

Screw

$

$

Not available

21

Husqvarna 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, only 1 left!

0

40

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 728745505

SCREW

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 506773401

WASHER

$4.99

$

In Stock, only 2 left!

0

1

Husqvarna 506671901

SPRING

$40.99

$

In Stock, only 4 left!

0

25

Husqvarna 735311420

RETAINING RING

$3.49

$

In Stock, only 1 left!

0

2

Husqvarna 506576301

SPRING BRACKET

$

$

Not available

43

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506675403

COLLAR SCREW

$

$

Not available

28

Husqvarna 544427301

WIRE GUIDE

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506863401

SPACER
(Superseded to 587080901)

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 738211004

BALL BEARING 6010 2RS1

$45.99

$

Usually ships in 3-10 days

0

35

Husqvarna 506985901

SHAFT

$51.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576492501

PULLEY

$51.99

$

Usually ships in 3-10 days

0

38

Husqvarna 740681421

V-RING

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 735314010

CIRCLIP SGH 47

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

31

Husqvarna 738210504

Ball Bearing 6005-2rs

$33.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506670801

CONNECTOR

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

16

Husqvarna 576269101

NEEDS DESCRIPTION

$

$

Currently unavailable

39

Husqvarna 578065201

BRACKET

$

$

Not available

5

Husqvarna 577960402

STEERING WHEEL

$74.99

$

Usually ships in 3-10 days

0

33

Husqvarna 735314010

CIRCLIP SGH 47

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 2 left!

0

12

Husqvarna 506887801

SPACER

$

$

Not available

19

Husqvarna 576487301

$

$

Currently unavailable

26

Husqvarna 506554601

STEERING CHAIN

$20.99

$

In Stock, only 1 left!

0

24

Husqvarna 506539404

SHAFT

$17.99

$

Usually ships in 3-10 days

0

41

Husqvarna 506675403

COLLAR SCREW

$

$

Not available

8

Husqvarna 575631901

STEERING ROD

$51.99

$

Usually ships in 3-10 days

0

13

Husqvarna 738210404

BALL BEARING 6004-2RS1

$103.99

$

In Stock, Qty 20+

0

22

Husqvarna 577199904

WIRE ASSY
(Superseded to 501604804)

$20.99

$

Usually ships in 3-10 days

0

42

Husqvarna 544433201

PROTECTIVE COVER

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 577659301

SPINDLE

$182.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506522401

ROLLER

$11.99

$

In Stock, only 2 left!

0
