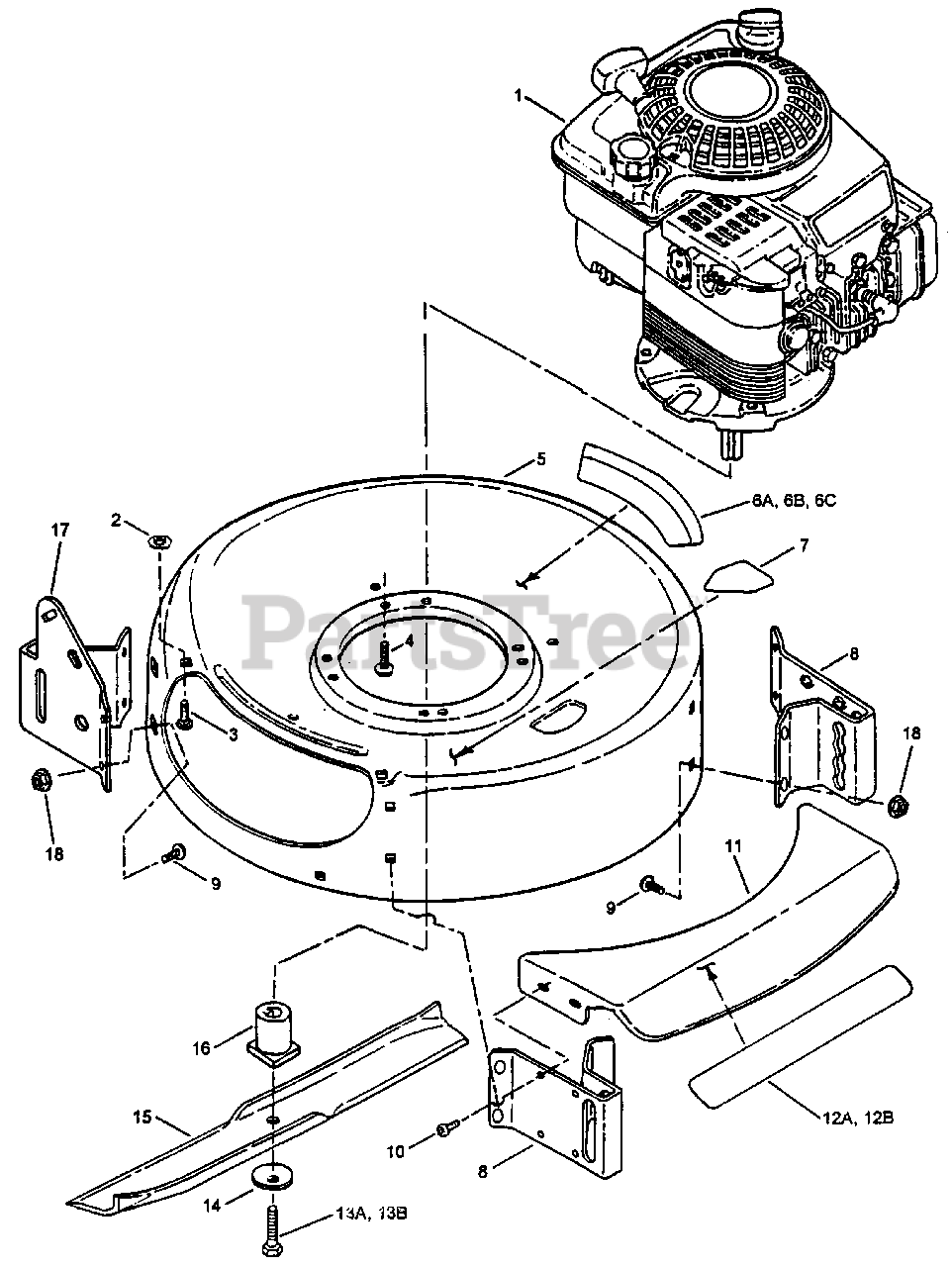

R 205012 (82534) - Snapper 20" Walk-Behind Mower, 5hp Engine, Cutting Deck & Blade Parts Diagram

20" Walk-Behind Mower, 5hp

Engine, Cutting Deck & Blade Parts Diagram

  • Title

1

*ENGINE, 5 HP Briggs & Stratton XM, Model 12F802-0880-01

Note: Type 0880, Trim 01 (R205012)

$

$

Not available

*ENGINE, 5 HP Briggs & Stratton XM, Mdl. 12F802-1948-A1

Note: (NR205012)

$

$

Not available

*ENGINE, 4.5 HP Tecumseh Ultra TVS115-110VES

Note: (R204513E)

$

$

Not available

2

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7091508

BOLT, 5/16-18 x 3/4 Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

4

Snapper 7090324

SCREW, 3/8-16 x 1 Hex Washer Head, Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7054453

DECK, 20" Cutting

Note: Was 35324

$

$

Not available

6A

Snapper 7072921

DECAL - Feature/Compliance
(Superseded to 7072921YP)

Note: Was 24380

$9.49

$

Usually ships in 2-12 days

0

6B

Snapper 7072921

DECAL, Dura-Steel Convertible/Compliance
(Superseded to 7072921YP)

Note: Was 46581

$9.49

$

Usually ships in 2-12 days

0

6C

Snapper 7028440

DECAL, Warning (Deck)
(Superseded to 7028440YP)

Note: (R204513E Model)

$8.49

$

In Stock, only 1 left!

0

7

Snapper 7013010

DECAL - DANGER (Keep Hands & Feet Away)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

8

Snapper 7035321

BRACKET, Front Wheels
(Superseded to 7035321YP)

$21.99

$

Usually ships in 2-12 days

0

9

Snapper 7090731

BOLT, 5/16-18 x 1/2 Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

11

Snapper 7034363

PLATE, Deck Front
(Superseded to 7034363YP)

$21.99

$

Usually ships in 2-12 days

0

12A

Snapper 7035802

DECAL, SNAPPER "Lite"

$

$

Not available

12B

Snapper 7075618

DECAL, Snapper
(Superseded to 7075618YP)

Note: was 7029713 (R204513E Model)

$23.99

$

Usually ships in 2-12 days

0

13A

Snapper 7090167

SCREW, 3/8-24 x 2 Hex Head Cap, Grade 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

13B

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 703866)

Note: (R204513E Model)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

15

Snapper 7017167

BLADE, Mulching

$

$

Not available

16

Snapper 7015626

HUB, Blade
(Superseded to 7015626YP)

$15.99

$

In Stock, only 1 left!

0

17

Snapper 7035323

BRACKET, Rear Wheel Right Side
(Superseded to 7035323YP)

Note: (Shown)

$20.99

$

Usually ships in 2-12 days

0

Snapper 7035322

BRACKET, Rear Wheel Left Side
(Superseded to 7035322YP)

Note: (Not shown)

$20.99

$

Usually ships in 2-12 days

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7046720

DECAL, Chute/Deflector Warning
(Superseded to 7046720SM)

Note: (R204513E Model) (Not shown)

$7.49

$

In Stock, only 1 left!

0

20

Snapper 7046357

DECAL, Warning
(Superseded to 7046357YP)

Note: (R204513E Model) (Not shown)

$14.99

$

Usually ships in 2-12 days

0

21

Snapper 7035407

DECAL, Electric Start

Note: (R204513E Model) (Not shown)

$

$

Currently unavailable

Snapper 7054453

20" SERVICE DECK KIT

Note: Not shown

$

$

Not available

Snapper 7035424

Deck

Note: Included in 20" Service Deck Kit P/N 54453

$

$

Not available

Snapper 7013010

Warning Decal
(Superseded to 7013010SM)

Note: Included in 20" Service Deck Kit P/N 54453

$9.49

$

In Stock, Qty 10

0

Snapper 7072921

Dura Steel Decal
(Superseded to 7072921YP)

Note: Was 46581, Included in 20" Service Deck Kit P/N 54453

$9.49

$

Usually ships in 2-12 days

0
