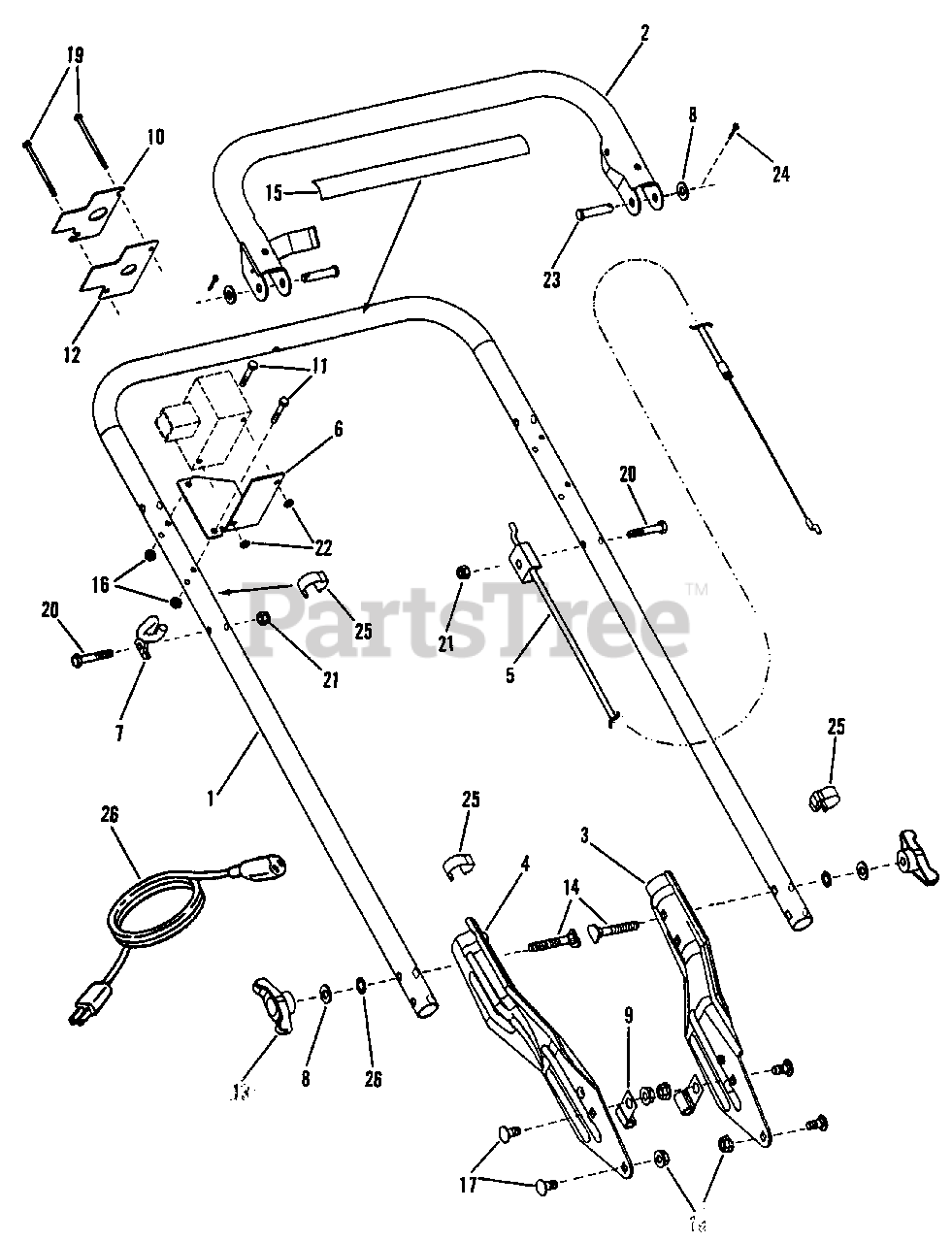

R 204513E (84327) - Snapper 20" Walk-Behind Mower, 4.5hp Handles & Controls (Series 13) Parts Diagram

20" Walk-Behind Mower, 4.5hp

Handles & Controls (Series 13) Parts Diagram

  • Title

1

Snapper 7035330

HANDLE, Upper

$

$

Currently unavailable

2

Snapper 7053990

WELDMENT, Bail (OPC)

$

$

Not available

3

Snapper 7046502

HANDLE, Lower (Left Hand)
(Superseded to 7046502YP)

$56.99

$

In Stock, only 1 left!

0

4

Snapper 7035342

HANDLE, Lower (Right Hand)
(Superseded to 7035342YP)

$43.99

$

In Stock, only 1 left!

0

5

Snapper 7035493

CONTROL, Blade
(Superseded to 7035493YP)

$21.99

$

Usually ships in 2-12 days

0

6

Snapper 7035345

BRACKET, Electric Starter

$

$

Not available

7

Snapper 7026141

GUIDE, Pull Rope

$

$

Not available

8

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7012652

CLIP, 7/16" Wiring Harness
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7035400

DECAL, Starting Button ES

$

$

Currently unavailable

11

Snapper 7091757

BOLT, #10-24 x 1-1/4" Hex Head, Grade 5
(Superseded to 7091757SM)

$3.49

$

In Stock, Qty 8

0

12

Snapper 7035351

COVER, Electric Start

$

$

Not available

13

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7091740

SCREW, 5/16-18 x 2" Curved Head, Grade 2
(Superseded to 7091740SM)

Note: Was 91189

$3.49

$

In Stock, Qty 12

0

15

Snapper 7035396

DECAL, Starting Procedure ES

$

$

Currently unavailable

16

Snapper 7091758

NUT, #10-24 Hex Keps Lock

$

$

Not available

17

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7091572

SCREW, 06-32 x 2-1/2" Hex Head Cap
(Superseded to 7091572YP)

$2.99

$

Usually ships in 2-12 days

0

20

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

21

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7091570

NUT, #6-32 Hex Keps Lock
(Superseded to 7091570YP)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 7079831

PIN, 5/16 x 1.42" Clevis
(Superseded to 7079831YP)

Note: Was 91645

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7091597

PIN, 3/32 x 1-1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7015368

CORD, 10 Ft. Extension
(Superseded to 7015368YP)

$26.99

$

Usually ships in 2-12 days

0

27

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0
