R 194515B (84629) - Snapper 19" Walk-Behind Mower, 4.5hp SIDE CHUTE, ADAPTER Parts Diagram

19" Walk-Behind Mower, 4.5hp

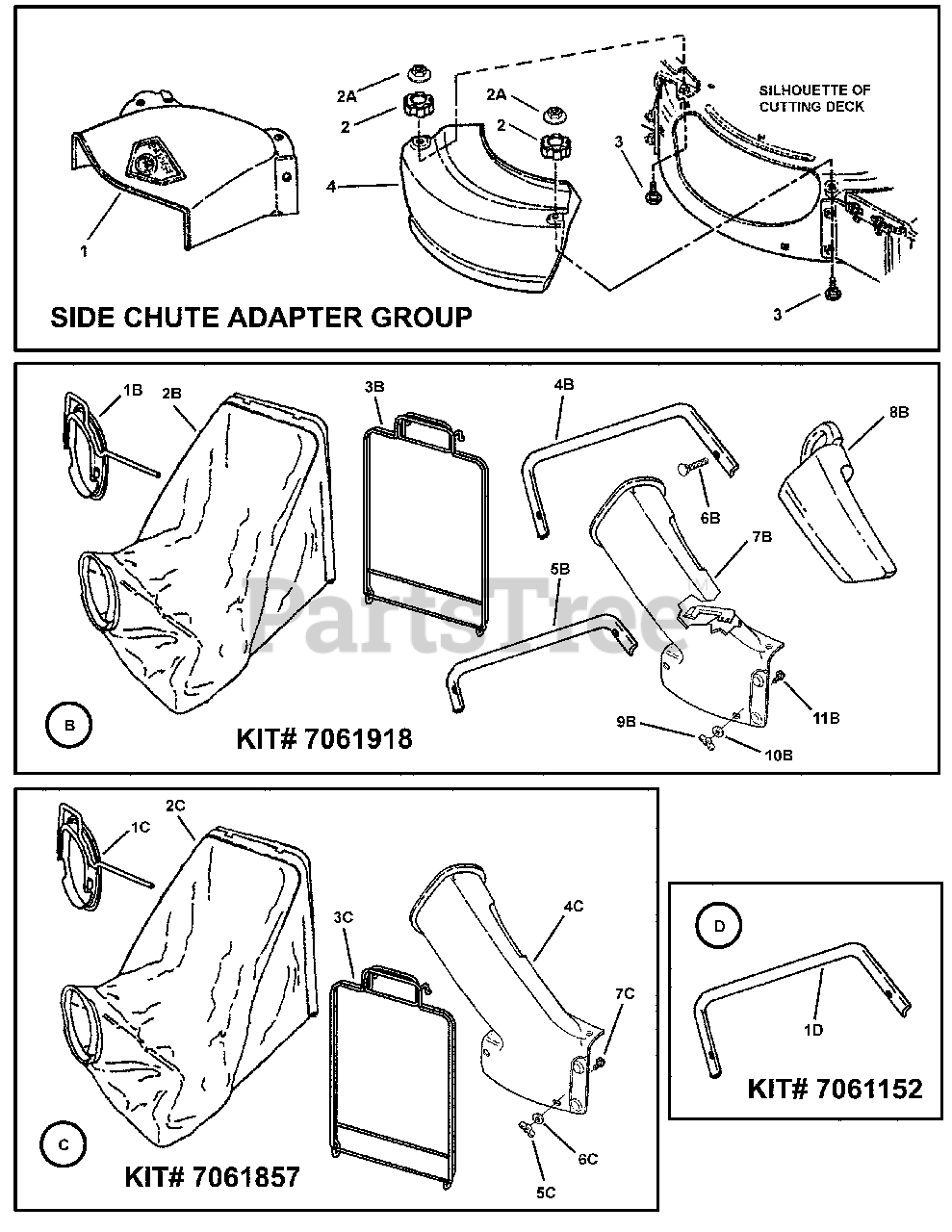

SIDE CHUTE, ADAPTER Parts Diagram

  • Title

1

Snapper 7035771

CHUTE, 19" Side w/o interlock tab
(Superseded to 7035771YP)

$27.99

$

In Stock, only 1 left!

0

2

Snapper 7029466

KNOB, Fluted, 5/16-18 Thread (yellow)
(Superseded to 7029700YP)

$5.49

$

Usually ships in 2-12 days

0

2

Snapper 7029700

KNOB, Fluted, 5/16-18 Thread
(Superseded to 7029700YP)

$5.49

$

Usually ships in 2-12 days

0

2A

Snapper 7090951

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

3

Snapper 7090001

BOLT, 5/16-18 x 3/4" Short Neck Carriag, GR 5
(Superseded to 703185)

Note: 3 used with item 4

$3.49

$

In Stock, Qty 12

0

4

Snapper 7029630

COVER, Recycling, 19"/20"
(Superseded to 7029630YP)

$

$

Not available

B

Snapper 7061918

KIT, Bag "N" Plug (Grass Catcher and Plug)
(Superseded to 7061918YP)

Note: includes next 11 items

$352.99

$

Usually ships in 2-12 days

0

1B

Snapper 7042489

CONNECTOR, Bag
(Superseded to 7042489AYP)

$44.99

$

Usually ships in 2-12 days

0

2B

Snapper 7029963

BAG, Grass (13" wide)
(Superseded to 7075765YP)

$137.99

$

Usually ships in 2-12 days

0

3B

Snapper 7051906

ASSEMBLY, Bag Wire (13" wide)
(Superseded to 7051906YP)

$110.99

$

In Stock, only 2 left!

0

4B

Snapper 7033562

BAR, Cross
(Superseded to 7033562YP)

$142.99

$

Usually ships in 2-12 days

0

5B

Snapper 7034447

STIFFENER, Upper
(Superseded to 7034447YP)

$84.99

$

Usually ships in 2-12 days

0

6B

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

7B

Snapper 7053681

ASSEMBLY, Bag Adapter
(Superseded to 7053681YP)

$67.99

$

In Stock, only 1 left!

0

8B

Snapper 7016814

PLUG, Chute Adapter
(Superseded to 7016814YP)

$49.99

$

In Stock, only 3 left!

0

9B

Snapper 7024085

WING NUT, 5/16-18 thread w/Nylon Ring
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

10B

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

11B

Snapper 7090001

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

C

Snapper 7061857

KIT, Grass Catcher (13" Wide)
(Superseded to 7061918YP)

Note: includes next 7 items

$352.99

$

Usually ships in 2-12 days

0

1C

Snapper 7042489

CONNECTOR, Bag
(Superseded to 7042489AYP)

$44.99

$

Usually ships in 2-12 days

0

2C

Snapper 7029963

BAG, Grass (13" wide)
(Superseded to 7075765YP)

$137.99

$

Usually ships in 2-12 days

0

3C

Snapper 7051906

ASSEMBLY, Bag Wire (13" wide)
(Superseded to 7051906YP)

$110.99

$

In Stock, only 2 left!

0

4C

Snapper 7029976

ADAPTER, 19" Deck
(Superseded to 7053681YP)

$67.99

$

In Stock, only 1 left!

0

5C

Snapper 7024085

WING NUT, 5/16-18 thread w/Nylon Ring
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

6C

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

7C

Snapper 7090001

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

D

Snapper 7061152

KIT, Cross Bar (for attaching bag)
(Superseded to 7033562YP)

$142.99

$

Usually ships in 2-12 days

0

1D

Snapper 7033562

BAR, Cross
(Superseded to 7033562YP)

$142.99

$

Usually ships in 2-12 days

0
