R 194515B (84629) - Snapper 19" Walk-Behind Mower, 4.5hp HANDLES & CONTROLS Parts Diagram

19" Walk-Behind Mower, 4.5hp

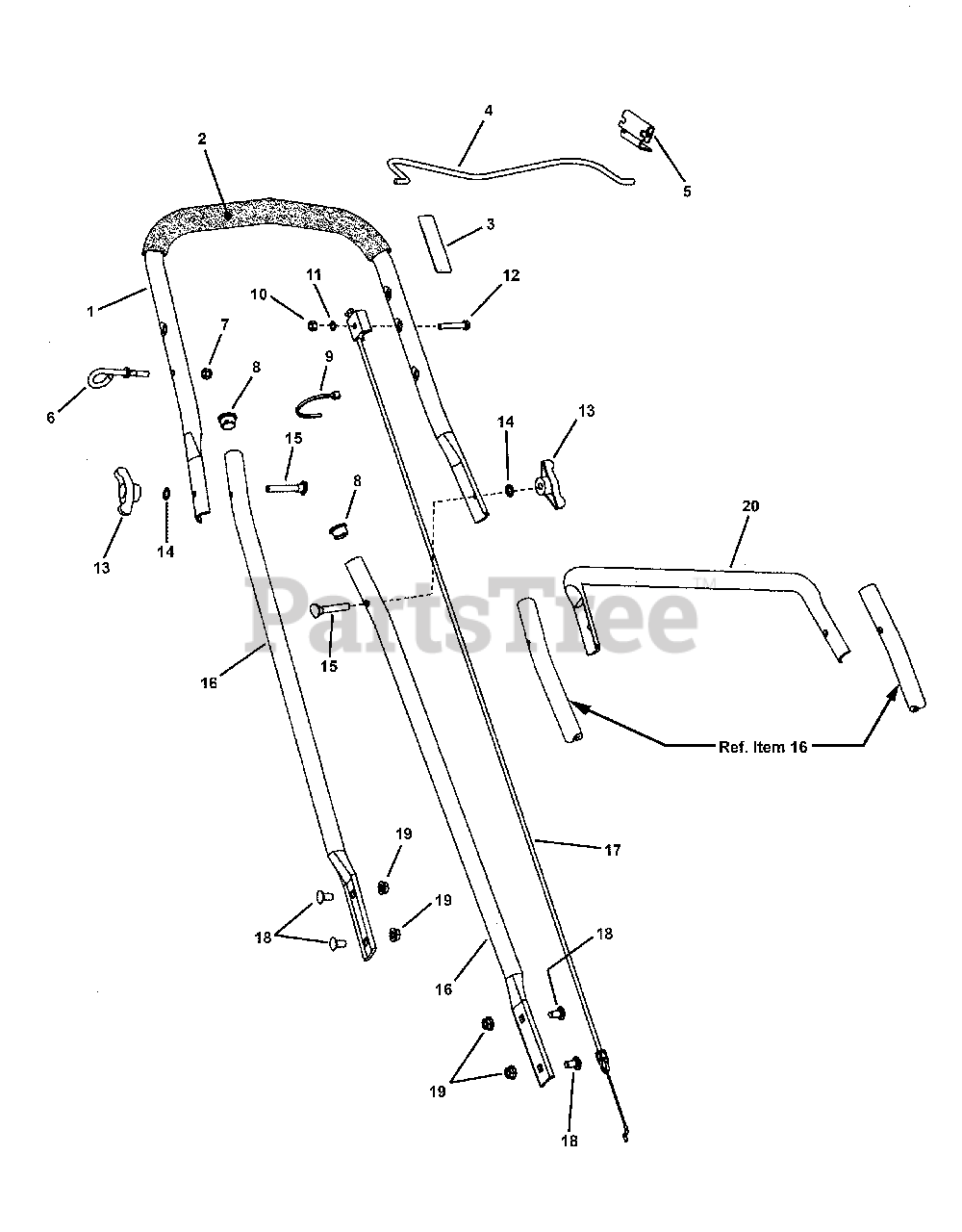

HANDLES & CONTROLS Parts Diagram

  • Title

1

Snapper 7041933

HANDLE, Upper
(Superseded to 7074384YP)

Note: Series 14

$213.99

$

Usually ships in 2-12 days

0

1

Snapper 7075313

HANDLE, Upper
(Superseded to 7074384YP)

Note: Series 15, 17 & 19

$213.99

$

Usually ships in 2-12 days

0

2

Snapper 7072333

GRIP, Foam Yellow 10.75" long
(Superseded to 7072333YP)

Note: Series 14

$22.99

$

Usually ships in 2-12 days

0

2

Snapper 7075634

GRIP, Foam Black 12" long
(Superseded to 7075634YP)

Note: Series 15, 17 & 19

$8.99

$

Usually ships in 2-12 days

0

3

Snapper 7024211

DECAL, Blade Control
(Superseded to 7024211YP)

Note: Models R196019B & R1962519B

$14.99

$

In Stock, Qty 5

0

3

Snapper 7029782

DECAL, Blade Control
(Superseded to 7029782MA)

Note: Models ER194515B, ER195517B & ER196017B

$12.99

$

Usually ships in 2-12 days

0

4

Snapper 7047011

BAIL, OPC Control
(Superseded to 7047011YP)

$

$

Not available

5

Snapper 7034872

CLIP, Zone Control
(Superseded to 7034872YP)

$5.99

$

In Stock, Qty 5

0

6

Snapper 7046465

GUIDE, ROPE (1/4-20 threads)
(Superseded to 7046465SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7016544

PLUG, Trans
(Superseded to 703931)

$3.99

$

In Stock, Qty 10

0

9

Snapper 7024641

WIRE TIE, Black 1.29" long
(Superseded to 7024641YP)

$5.99

$

In Stock, only 1 left!

0

10

Snapper 7091100

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7091023

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

12

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

13

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091013

BOLT, 5/16-18 x 2" Curved Head
(Superseded to 7091013SM)

$5.49

$

In Stock, only 1 left!

0

16

Snapper 7033406

HANDLE, Middle-1992
(Superseded to 7033406YP)

$

$

Not available

17

Snapper 7035808

CABLE, Blade Control
(Superseded to 7035808YP)

Note: 46.05", Series 14

$17.99

$

Usually ships in 2-12 days

0

17

Snapper 7072933

CABLE, OPC 19S/21S NH, B&S
(Superseded to 7072933YP)

Note: 49.27", Series 15, 17 & 19

$24.99

$

In Stock, only 2 left!

0

18

Snapper 7091026

BOLT, 5/16-18 x 5/8" Short Neck Carriage, GR 5
(Superseded to 7900015YP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7091070

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

20

Snapper 7033562

CROSS BAR
(Superseded to 7033562YP)

Note: (optional, to hang bag, part of 7061152 Kit)

$142.99

$

Usually ships in 2-12 days

0
