R 194515B (84629) - Snapper 19" Walk-Behind Mower, 4.5hp ENGINE, CUTTING DECK & BLADE Parts Diagram

19" Walk-Behind Mower, 4.5hp

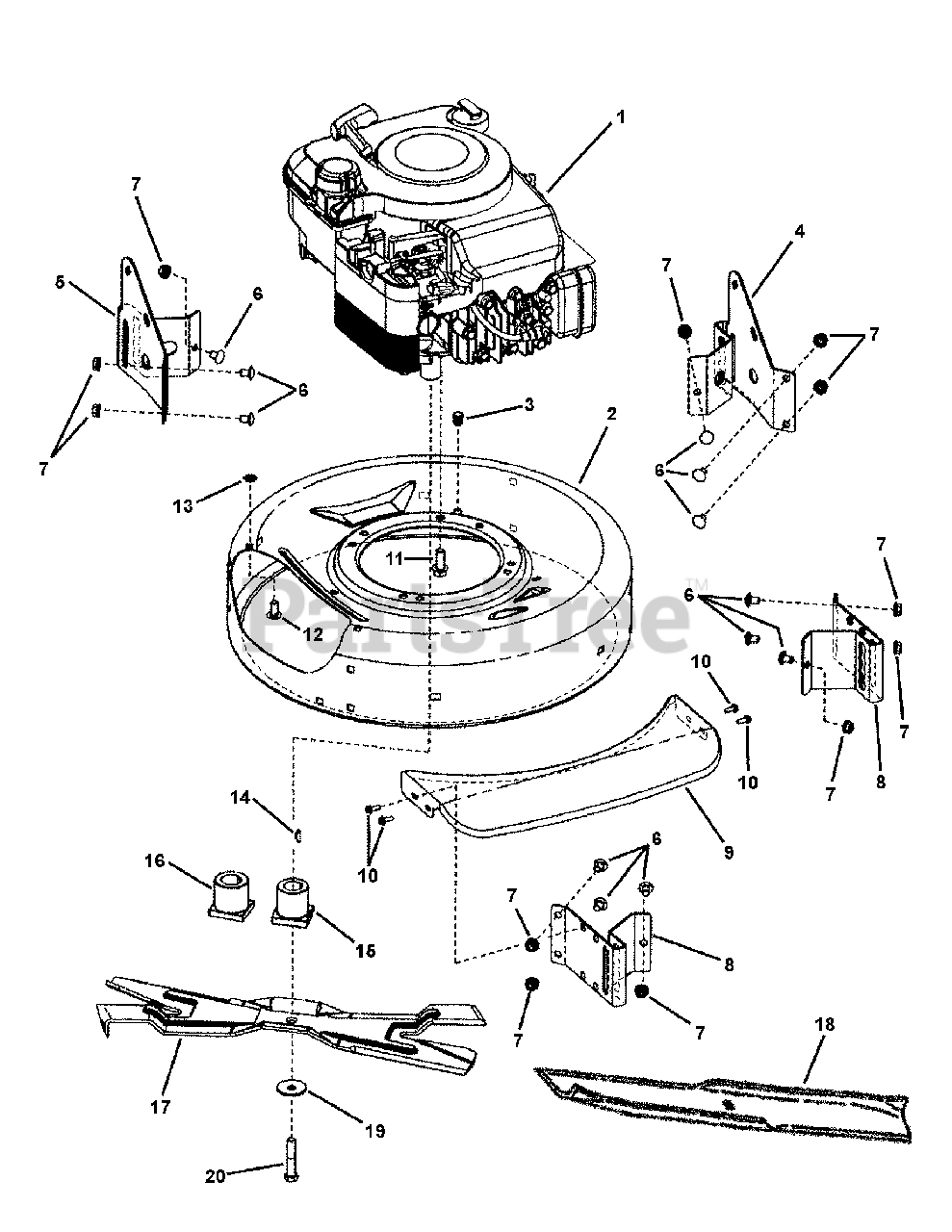

ENGINE, CUTTING DECK & BLADE Parts Diagram

  • Title

1

Snapper 10A902-2288-E1

* ENGINE, 4HP B&S Quattro

Note: Series 14

$

$

Currently unavailable

1

Snapper 12H802-1952-E1

* ENGINE, 4.5HP B&S Quantum

Note: Series 15

$

$

Currently unavailable

1

Snapper 127802-1928-B1

* ENGINE, 4.5HP Quantum

Note: Euro Series 15

$

$

Currently unavailable

1

Snapper 128802-2022-B1

* ENGINE, 5.5HP B&S Quantum

Note: Series 17

$

$

Currently unavailable

1

Snapper 122K02-0119-E1

* ENGINE, 5.5HP B&S Quantum Euro

Note: Euro Series 17

$

$

Currently unavailable

1

Snapper 12H802-2151-B1

* ENGINE, 6HP B&S Quantum Euro

Note: Euro Series 17

$

$

Currently unavailable

1

Snapper 122T02-0112-E1

* ENGINE, 6.25GT B&S Quantum

Note: Series 19

$

$

Currently unavailable

1

Snapper 122T02-0112-B1

* ENGINE, 6.25GT B&S Quantum

Note: Series 19

$

$

Currently unavailable

2

Snapper 7054296

ASSEMBLY, 19" Cutting Deck

Note: Series 14 (painted deck w/brackets)

$

$

Not available

2

Snapper 7058680

ASSEMBLY, 19" Cutting Deck

Note: Series 15, 17 & 19 (painted deck w/brackets)

$

$

Not available

3

Snapper 7046780

PLUG, Hole (Polyethylene)
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

4

Snapper 7035322

BRACKET, Rear Wheel Left Side
(Superseded to 7035322YP)

Note: Series 14

$20.99

$

Usually ships in 2-12 days

0

4

Snapper 7073028

BRACKET, Rear Wheel Left Side
(Superseded to 7073028YP)

Note: Series 15, 17 & 19

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 7035323

BRACKET, Rear Wheel Right Side
(Superseded to 7035323YP)

Note: Series 14

$20.99

$

Usually ships in 2-12 days

0

5

Snapper 7073029

BRACKET, Rear Wheel Right Side
(Superseded to 7035323YP)

Note: Series 15, 17 & 19

$20.99

$

Usually ships in 2-12 days

0

6

Snapper 7092061

BOLT, 5/16-18 x 1/2" Short Neck Carriage, GR 5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

7

Snapper 7090585

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Snapper 7035321

BRACKET, Front Wheels R & L
(Superseded to 7035321YP)

$21.99

$

Usually ships in 2-12 days

0

9

Snapper 7034363

PLATE, 19" Deck Front
(Superseded to 7034363YP)

$21.99

$

Usually ships in 2-12 days

0

10

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Head Self-Tap
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

11

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Head Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7090001

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

13

Snapper 7011791

RETAINER, 5/16 Bolt (Black)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7010783

KEY, #505 Hi-Pro
(Superseded to 7010783YP)

Note: Series 14 only

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7012927

HUB, Blade 7/8" Internal Dia.
(Superseded to 7012927YP)

Note: Series 14

$13.99

$

In Stock, only 2 left!

0

16

Snapper 7015626

HUB, Blade 25mm Internal Dia. (w/integral key)
(Superseded to 7015626YP)

Note: Series 15, 17 & 19

$15.99

$

In Stock, only 1 left!

0

17

Snapper 7027436

BLADE, 19" Ninja (quad edge)

$

$

Not available

18

Snapper 7017167

BLADE, 19" Mulching

$

$

Not available

19

Snapper 7012063

WASHER,Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

20

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Ca, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0
