R 18 Pro (953521901) - Husqvarna Swedish Riding Mower (2007-03) CHASSIS / FRAME Parts Diagram

Swedish Riding Mower

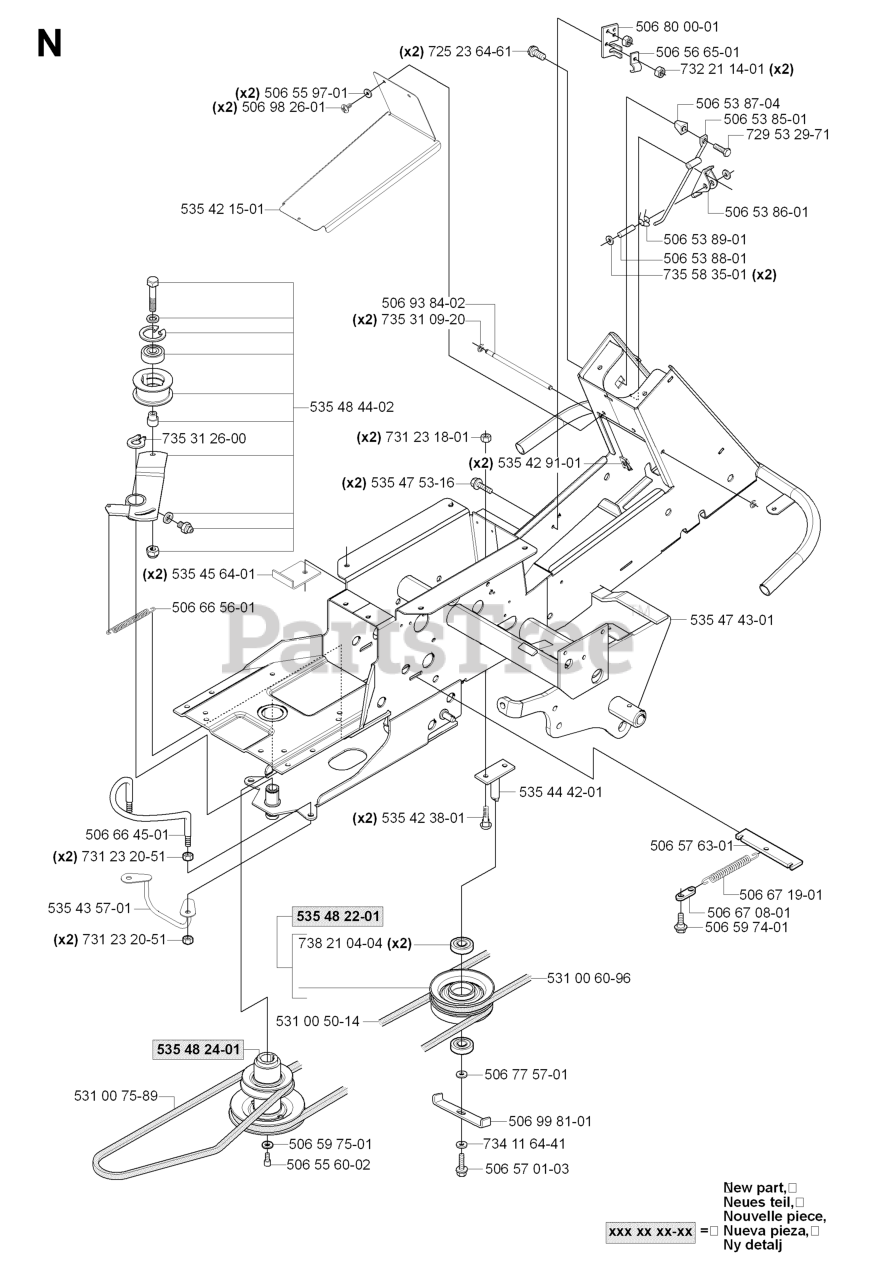

CHASSIS / FRAME Parts Diagram

  • Title

506 57 63-01

Husqvarna 506576301

SPRING BRACKET

$

$

Not available

535 45 64-01

Husqvarna 535456401

NEEDS DESCRIPTION

$

$

Currently unavailable

506 53 89-01

Husqvarna 506538901

Spring

$

$

Not available

531 00 60-96

Husqvarna 531006096

DECK BELT
(Superseded to 594978001)

$84.99

$

In Stock, Qty 20+

0

506 67 19-01

Husqvarna 506671901

SPRING

$40.99

$

In Stock, only 4 left!

0

506 93 84-02

Husqvarna 506938402

NEEDS DESCRIPTION

$

$

Currently unavailable

738 21 04-04

Husqvarna 738210404

BALL BEARING 6004-2RS1

$111.99

$

In Stock, Qty 20+

0

731 23 20-51

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, Qty 12

0

506 56 65-01

Husqvarna 506566501

CLAMP

$3.49

$

Usually ships in 3-10 days

0

531 00 75-89

Husqvarna 531007589

BELT
(Superseded to 580994701)

$43.99

$

In Stock, only 1 left!

0

735 31 09-20

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 5

0

506 99 81-01

Husqvarna 506998101

BELT GUIDE

$

$

Not available

535 47 43-01

Husqvarna 535474301

NEEDS DESCRIPTION

$

$

Currently unavailable

506 98 26-01

Husqvarna 506982601

SCREW

$4.99

$

In Stock, Qty 6

0

506 55 60-02

Husqvarna 506556002

SCREW

$6.99

$

Usually ships in 3-10 days

0

506 66 45-01

Husqvarna 506664501

BELT GUIDE

$42.99

$

Usually ships in 3-10 days

0

535 47 53-16

Husqvarna 535475316

SCREW

$

$

Not available

506 53 86-01

Husqvarna 506538601

Bracket

$

$

Not available

535 43 57-01

Husqvarna 535435701

NEEDS DESCRIPTION

$

$

Currently unavailable

506 55 97-01

Husqvarna 506559701

WASHER

$3.49

$

In Stock, only 4 left!

0

506 53 88-01

Husqvarna 506538801

Pin

$

$

Not available

506 66 56-01

Husqvarna 506665601

SPRING

$45.99

$

Usually ships in 3-10 days

0

734 11 64-41

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

506 59 75-01

Husqvarna 506597501

WASHER

$

$

Not available

729 53 29-71

Husqvarna 729532971

Screw

$

$

Not available

735 58 35-01

Husqvarna 735583501

CLIP

$14.99

$

In Stock, only 1 left!

0

535 48 24-01

Husqvarna 535482401

PULLEY

$79.99

$

Usually ships in 3-10 days

0

506 53 87-04

Husqvarna 506538704

KNOB, RED

$

$

Not available

506 53 85-01

Husqvarna 506538501

Arm

$

$

Not available

506 77 57-01

Husqvarna 506775701

WASHER

$5.99

$

In Stock, only 1 left!

0

535 48 44-02

Husqvarna 535484402

TENSIONER

$79.99

$

Usually ships in 3-10 days

0

535 44 42-01

Husqvarna 535444201

NEEDS DESCRIPTION

$

$

Currently unavailable

535 42 15-01

Husqvarna 535421501

NEEDS DESCRIPTION

$

$

Currently unavailable

735 31 26-00

Husqvarna 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, Qty 13

0

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

535 42 38-01

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

506 59 74-01

Husqvarna 506597401

BOLT

$6.99

$

In Stock, Qty 7

0

725 23 64-61

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

531 00 50-14

Husqvarna 531005014

MAIN DECK BELT - 14 PRO/16
(Superseded to 589530501)

$

$

Not available

535 42 91-01

Husqvarna 535429101

NUT

$3.49

$

Usually ships in 3-10 days

0

732 21 14-01

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 5

0

506 57 01-03

Husqvarna 506570103

BOLT

$11.99

$

Usually ships in 3-10 days

0

506 80 00-01

Husqvarna 506800001

Bracket

$

$

Not available

535 48 22-01

Husqvarna 535482201

PULLEY

$74.99

$

Usually ships in 3-10 days

0

506 67 08-01

Husqvarna 506670801

CONNECTOR

$7.99

$

Usually ships in 3-10 days

0
