R 18 AWD (966414101) - Husqvarna Swedish Riding Mower (2010-07) MOWER DECK / CUTTING DECK Parts Diagram

Swedish Riding Mower

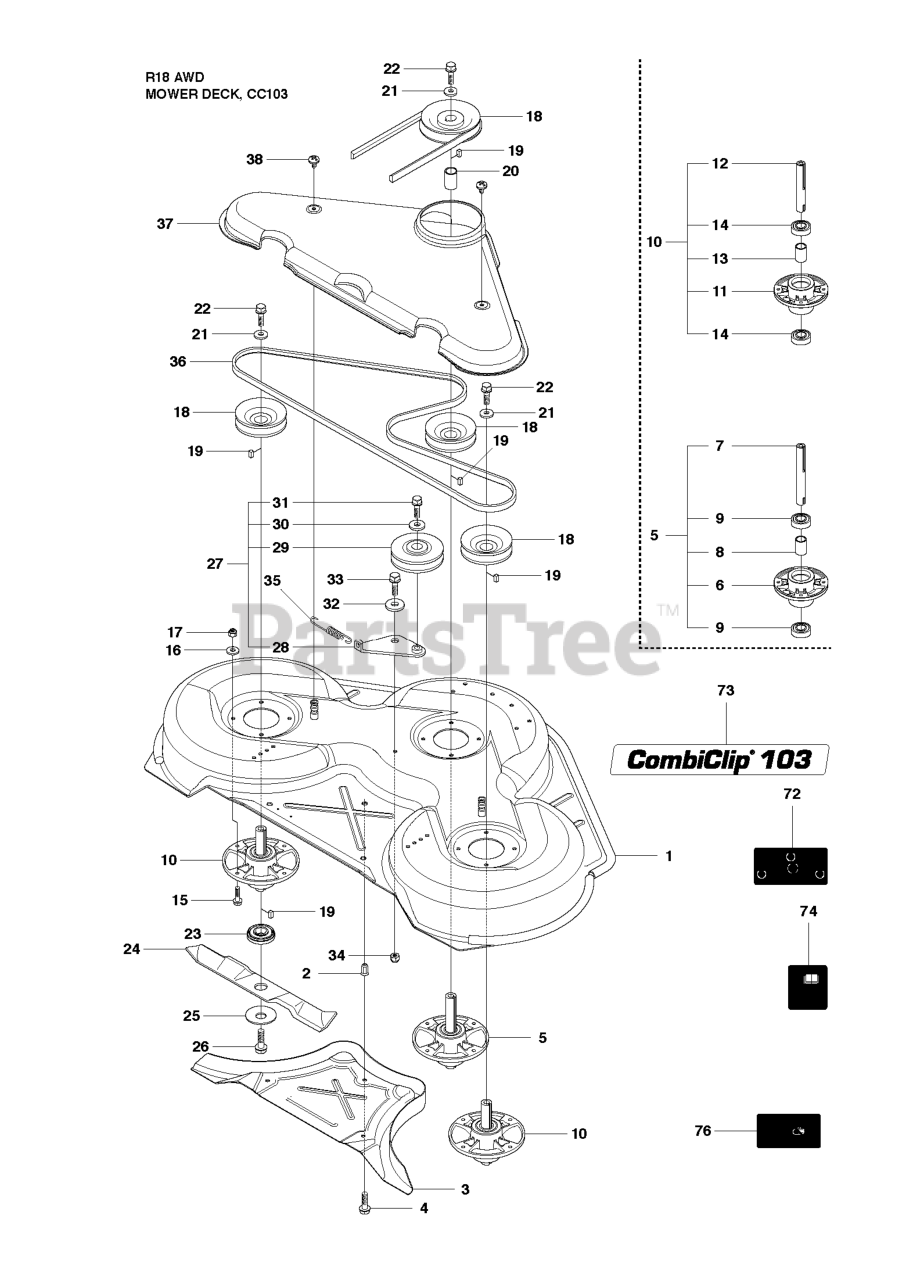

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

17

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

30

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

27

Husqvarna 506540701

BELT TENSIONER ASSY
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

32

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

3

Husqvarna 544449201

PLUG

$74.99

$

In Stock, only 1 left!

0

11

Husqvarna 544067801

BEARING HOUSING
(Superseded to 576384201)

$

$

Not available

6

Husqvarna 544067801

BEARING HOUSING
(Superseded to 576384201)

$

$

Not available

4

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 535428801

SPACER

$9.49

$

Usually ships in 3-10 days

0

22

Husqvarna 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

24

Husqvarna 504188210

BLADE

$34.99

$

In Stock, only 3 left!

0

37

Husqvarna 544096101

COVER

$

$

Not available

35

Husqvarna 506533101

SPRING

$11.99

$

Usually ships in 3-10 days

0

14

Husqvarna 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

23

Husqvarna 535504202

ADAPTER

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506792301

WASHER
(Superseded to 588145601)

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

20

Husqvarna 544068002

SPACER

$11.99

$

In Stock, only 3 left!

0

72

Husqvarna 506789701

Decal

$

$

Not available

38

Husqvarna 544400501

SCREW

$4.99

$

In Stock, only 4 left!

0

15

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574210801

CUTTING DECK RIDER

$433.99

$

Usually ships in 3-10 days

0

31

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

73

Husqvarna 574210302

$

$

Currently unavailable

8

Husqvarna 544068001

SPACER

$

$

Not available

10

Husqvarna 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$91.99

$

Usually ships in 3-10 days

0

76

Husqvarna 574510001

DECAL

$3.49

$

Usually ships in 3-10 days

0

74

Husqvarna 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 544065902

SPINDLE ASSY
(Superseded to 576384101)

$96.99

$

In Stock, only 1 left!

0

36

Husqvarna 589530601

BELT

$66.99

$

In Stock, only 4 left!

0

2

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 506922101

PULLEY

$39.99

$

In Stock, only 1 left!

0

21

Husqvarna 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 535428702

AXLE

$56.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544067901

SHAFT

$

$

Not available

29

Husqvarna 506532701

PULLEY

$45.99

$

In Stock, only 1 left!

0

26

Husqvarna 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

28

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0
