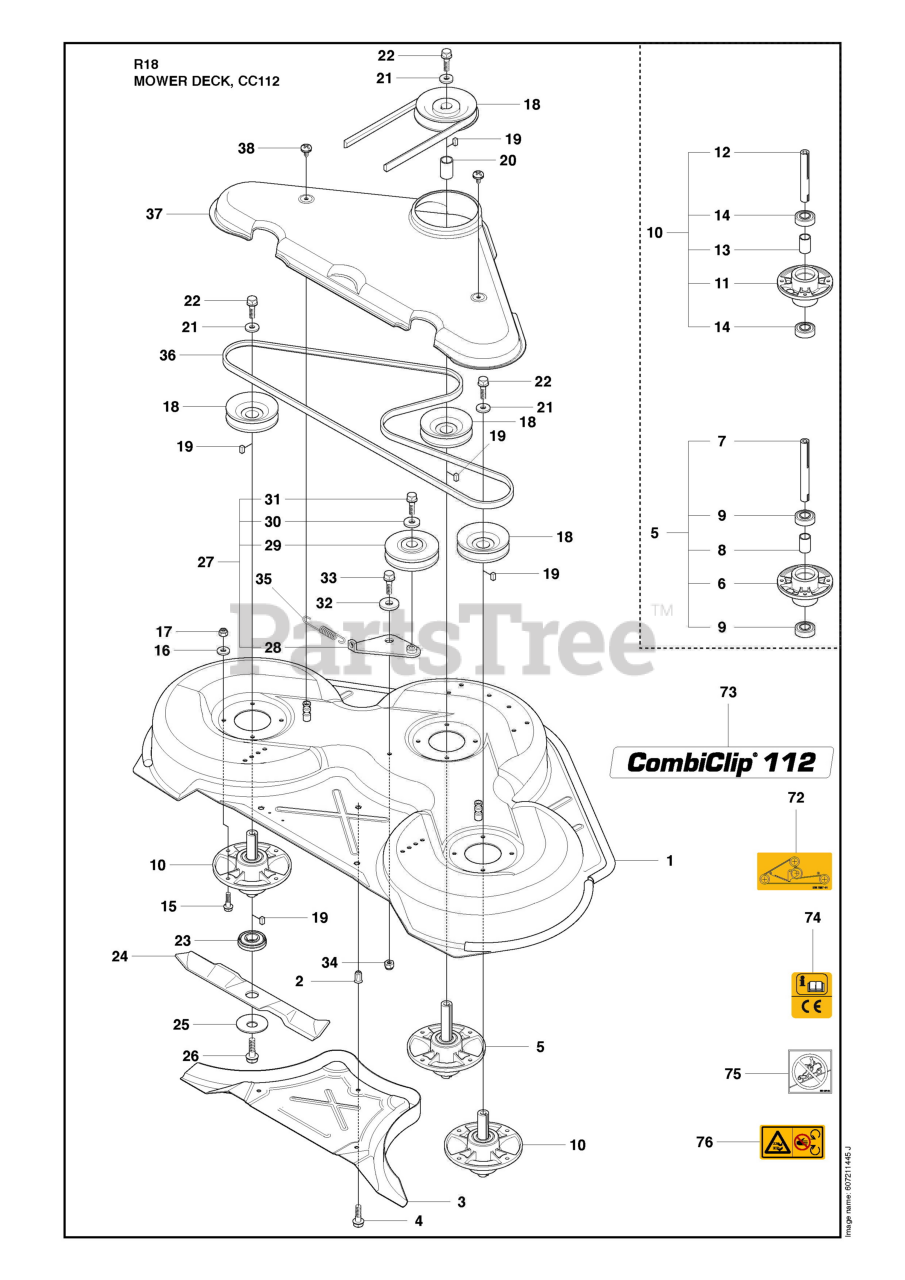

R 18 (966414001) - Husqvarna Swedish Riding Mower (2010-03) Mower Deck, CC112 Image 2 Parts Diagram

Swedish Riding Mower

Mower Deck, CC112 Image 2 Parts Diagram

  • Title

1

Husqvarna 574209501

CUTTING DECK

$

$

Not available

2

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 544449301

PLUG

$79.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 544065902

SPINDLE ASSY
(Superseded to 576384101)

$96.99

$

In Stock, only 1 left!

0

6

Husqvarna 544067801

BEARING HOUSING
(Superseded to 576384201)

$

$

Not available

7

Husqvarna 544067901

SHAFT

$

$

Not available

8

Husqvarna 544068001

SPACER

$

$

Not available

9

Husqvarna 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

10

Husqvarna 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$91.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544067801

BEARING HOUSING
(Superseded to 576384201)

$

$

Not available

12

Husqvarna 535428702

AXLE

$56.99

$

Usually ships in 3-10 days

0

13

Husqvarna 535428801

SPACER

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 738230434

BEARING

$20.99

$

Usually ships in 3-10 days

0

15

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

18

Husqvarna 506922101

PULLEY

$39.99

$

In Stock, only 1 left!

0

19

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 544068002

Spacer

$11.99

$

In Stock, only 3 left!

0

21

Husqvarna 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

23

Husqvarna 535504202

ADAPTER

$22.99

$

Usually ships in 3-10 days

0

24

Husqvarna 544102801

BLADE
(Superseded to 504188110)

$37.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506792301

WASHER
(Superseded to 588145601)

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544114101

SCREW

$4.99

$

In Stock, Qty 8

0

27

Husqvarna 506540701

BELT TENSIONER ASSY
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

28

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

29

Husqvarna 506532701

PULLEY

$45.99

$

In Stock, only 1 left!

0

30

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

33

Husqvarna 725245171

Screw

$1.49

$

In Stock, Qty 5

0

34

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

35

Husqvarna 506533101

SPRING

$11.99

$

Usually ships in 3-10 days

0

36

Husqvarna 535411901

BELT
(Superseded to 594978001)

$84.99

$

In Stock, only 3 left!

0

37

Husqvarna 544096201

BELT COVER

$

$

Not available

38

Husqvarna 544400501

SCREW

$4.99

$

In Stock, only 4 left!

0

40

Husqvarna 523095301

Bracket

$74.99

$

Usually ships in 3-10 days

0

41

Husqvarna 725245171

Screw

$1.49

$

In Stock, Qty 5

0

42

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

43

Husqvarna 502641802

$

$

Currently unavailable

44

Husqvarna 523094901

$

$

Currently unavailable

45

Husqvarna 506869601

BEARING

$

$

Not available

46

Husqvarna 506813801

PLATE

$6.99

$

Usually ships in 3-10 days

0

47

Husqvarna 725246151

BOLT

$5.99

$

In Stock, only 1 left!

0

48

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

49

Husqvarna 523114201

PARALLELL ROD ASSY

$56.99

$

Usually ships in 3-10 days

0

50

Husqvarna 502642301

PARALLEL ROD

$

$

Not available

51

Husqvarna 506839801

RETAINER
(Superseded to 506839802)

$19.00

$

Usually ships in 3-10 days

0

52

Husqvarna 721618301

SPLIT PIN

$

$

Not available

53

Husqvarna 523086503

DECK FRAME
(Superseded to 523086507)

$265.99

$

Usually ships in 3-10 days

0

54

Husqvarna 574561901

BEARING

$6.99

$

In Stock, Qty 11

0

55

Husqvarna 574210101

PIVOT WHEEL ASSY

$

$

Not available

56

Husqvarna 535504701

$

$

Currently unavailable

57

Husqvarna 506963001

DECK ROLLER, FRONT

$62.99

$

In Stock, Qty 14

0

58

Husqvarna 506810802

PIPE

$9.49

$

In Stock, only 2 left!

0

59

Husqvarna 506874102

SPACER

$6.99

$

Usually ships in 3-10 days

0

60

Husqvarna 725251951

BOLT

$12.99

$

In Stock, only 1 left!

0

61

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 503894703

CLIP GRAY
(Superseded to 595303003)

$10.99

$

In Stock, only 4 left!

0

63

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

64

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 574034801

PLUG

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 725236861

Screw
(Superseded to 535475212)

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

68

Husqvarna 523087501

DECK ATTACHMENT

$136.99

$

Usually ships in 3-10 days

0

69

Husqvarna 523114601

LOCK

$11.99

$

Usually ships in 3-10 days

0

70

Husqvarna 725236861

Screw
(Superseded to 535475212)

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 506789701

DECAL

$

$

Not available

73

Husqvarna 574210303

$

$

Currently unavailable

74

Husqvarna 506929001

DECAL

$7.49

$

In Stock, only 1 left!

0

76

Husqvarna 574510001

DECAL

$3.49

$

Usually ships in 3-10 days

0
