R 18 (966414001) - Husqvarna Swedish Riding Mower (2010-03) Equipment Frame Assy Parts Diagram

Swedish Riding Mower

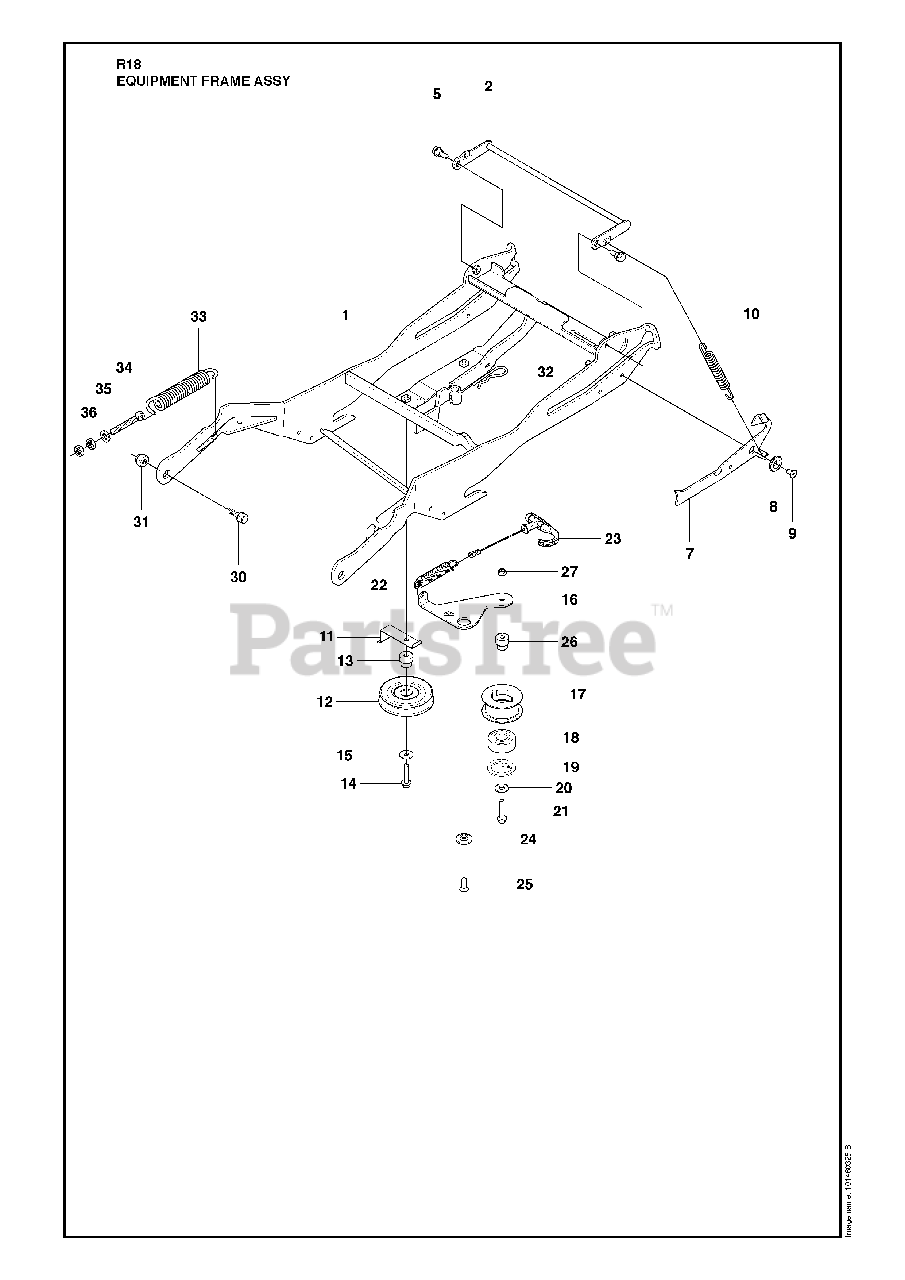

Equipment Frame Assy Parts Diagram

  • Title

1

Husqvarna 523064101

$

$

Currently unavailable

2

Husqvarna 525475901

HOOK

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 523116602

LEVER

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506918701

SPACER

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 725644801

SCREW IHCSFM

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 506535603

SPRING

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 525486701

BELT GUIDE

$

$

Not available

12

Husqvarna 506974801

PULLEY

$51.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506826802

BUSHING

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 725245951

SCREW

$5.99

$

In Stock, only 4 left!

0

15

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 523083701

$

$

Not available

17

Husqvarna 506928901

%PULLEY
(Superseded to 505153901)

$62.99

$

Usually ships in 3-10 days

0

18

Husqvarna 738210404

BALL BEARING 6004-2RS1

$103.99

$

In Stock, Qty 20+

0

19

Husqvarna 735313810

RETAINING RING

$5.99

$

In Stock, only 2 left!

0

20

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 725245951

SCREW

$5.99

$

In Stock, only 4 left!

0

22

Husqvarna 504622401

SPRING

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 504622102

HANDLE ASSY

$17.99

$

Usually ships in 3-10 days

0

24

Husqvarna 505451701

WASHER
(Superseded to 586496701)

$

$

Not available

25

Husqvarna 725645301

SCREW

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 535484801

BUSHING

$26.99

$

Usually ships in 3-10 days

0

27

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

30

Husqvarna 506895801

BOLT

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna 732252201

Lock Nut, Fiber M12 DIN 985 Z/P

$1.99

$

In Stock, only 3 left!

0

32

Husqvarna 506966601

RETAINER

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 506837601

SPRING

$31.99

$

In Stock, only 2 left!

0

34

Husqvarna 506837701

SCREW

$10.99

$

In Stock, only 2 left!

0

35

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 2 left!

0
