R 175 - Husqvarna Swedish Riding Mower (2008-05) Mower Lift Parts Diagram

Swedish Riding Mower

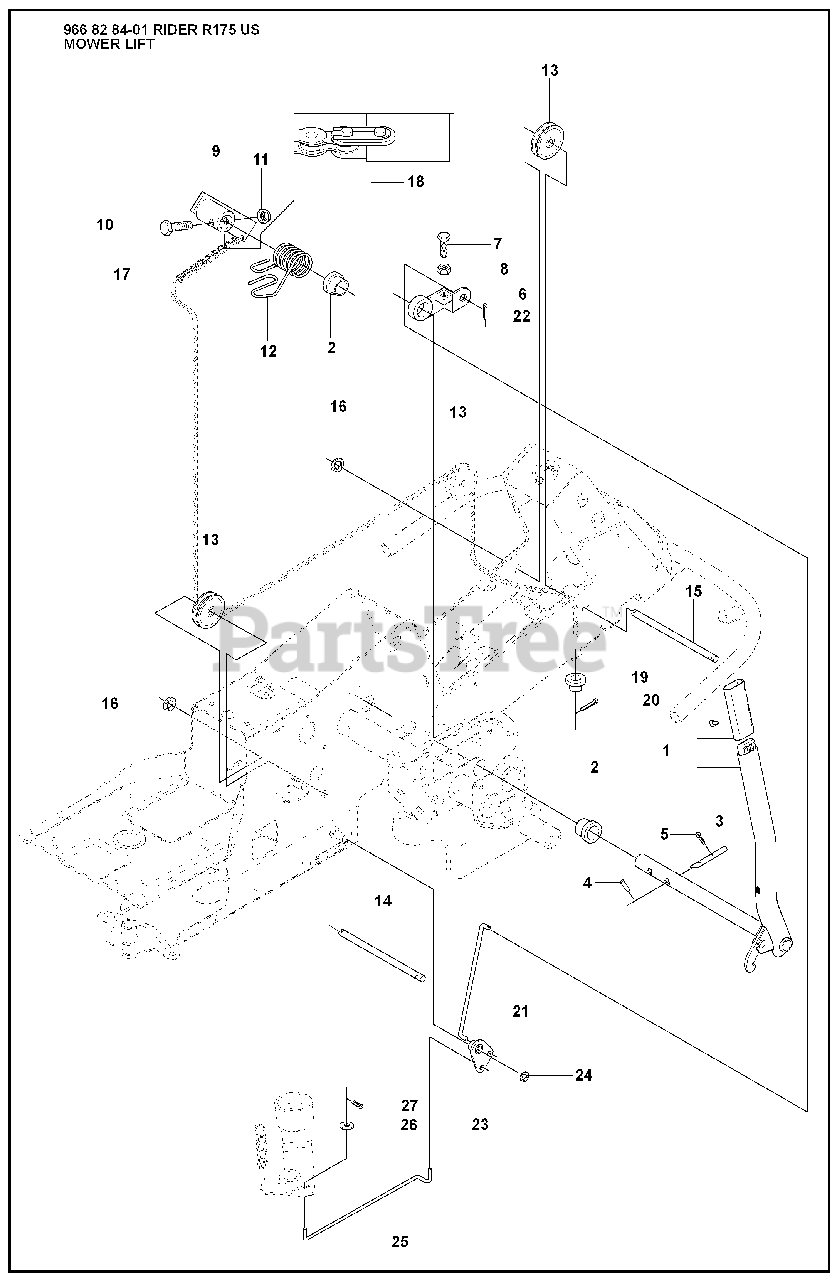

Mower Lift Parts Diagram

  • Title

1

Husqvarna 501018601

LIFTING LEVER ASSY
(Superseded to 501018602)

$

$

Not available

2

Husqvarna 506556501

BEARING FLANGE
(Superseded to 584871301)

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506905301

RP PIN
(Superseded to 525406601)

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 721125930

PIN

$

$

Not available

5

Husqvarna 721618301

SPLIT PIN

$

$

Not available

6

Husqvarna 506784301

LEVER CLUTCH

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 725249751

SCREW

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 4 left!

0

9

Husqvarna 506905401

LEVER

$

$

Not available

10

Husqvarna 725254251

SCREW

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 732252201

Lock Nut, Fiber M12 DIN 985 Z/P

$1.99

$

In Stock, only 2 left!

0

12

Husqvarna 506916801

SPRING

$9.49

$

In Stock, only 1 left!

0

13

Husqvarna 506905601

PULLEY

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506905701

SHAFT

$

$

Not available

15

Husqvarna 506905702

SHAFT

$

$

Not available

16

Husqvarna 735311820

LOCK RING

$

$

Not available

17

Husqvarna 506554607

CHAIN

$43.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506554701

LINK

$5.99

$

In Stock, only 1 left!

0

19

Husqvarna 506905901

BUSHING

$

$

Not available

20

Husqvarna 721618701

COTTER PIN

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 544456901

CONNECTION ROD

$10.99

$

In Stock, only 1 left!

0

22

Husqvarna 721618301

SPLIT PIN

$

$

Not available

23

Husqvarna 544378601

LINK

$9.49

$

Usually ships in 3-10 days

0

24

Husqvarna 735311420

RETAINING RING

$3.49

$

In Stock, only 1 left!

0

25

Husqvarna 544448801

CONNECTION ROD

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 721618301

SPLIT PIN

$

$

Not available
