R 175 AWD - Husqvarna Swedish Riding Mower (2008-05) Chassis, Rear (Part 2) Parts Diagram

Swedish Riding Mower

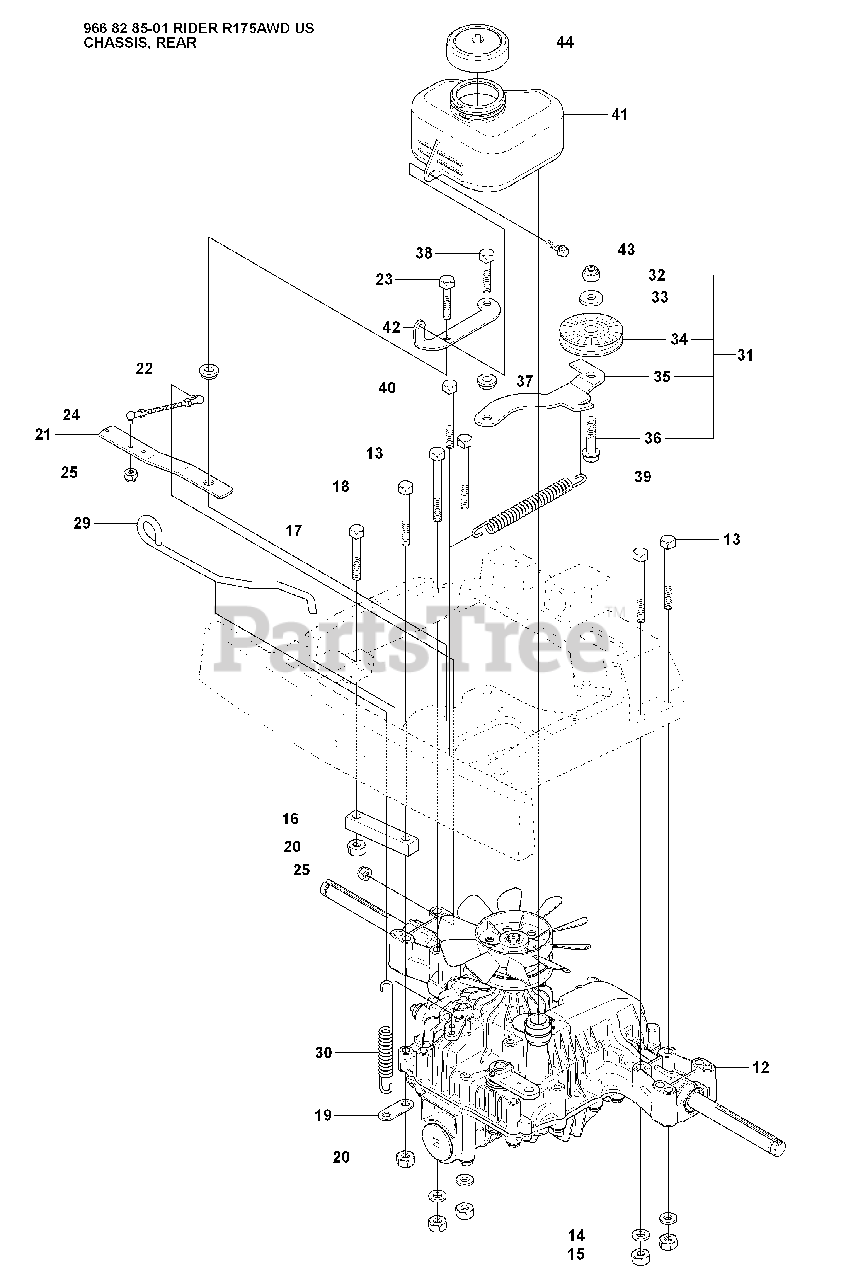

Chassis, Rear (Part 2) Parts Diagram

  • Title

12

Husqvarna 544116101

HYDRAULMOTOR
(Superseded to 590716801)

$1078.99

$

Usually ships in 3-10 days

0

13

Husqvarna 725246751

HEX BOLT

$1.49

$

Usually ships in 3-10 days

0

14

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

15

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

16

Husqvarna 506987201

BRACKET

$

$

Not available

17

Husqvarna 725245951

SCREW

$5.99

$

In Stock, only 4 left!

0

18

Husqvarna 725246251

SCREW

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506599301

CONNECTOR

$

$

Not available

20

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

21

Husqvarna 506987403

ARM

$

$

Not available

22

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

23

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

24

Husqvarna 506987501

ROD

$37.99

$

Usually ships in 3-10 days

0

25

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

29

Husqvarna 506988201

ROD

$

$

Not available

30

Husqvarna 506834301

SPRING

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 506988401

TENSIONER

$62.99

$

Usually ships in 3-10 days

0

32

Husqvarna 506988501

TENSIONER
(Superseded to 588740401)

$17.99

$

Usually ships in 3-10 days

0

33

Husqvarna 506946901

PULLEY

$39.99

$

In Stock, only 1 left!

0

34

Husqvarna 725245551

SCREW
(Superseded to 725245571)

$4.99

$

In Stock, Qty 10

0

35

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

37

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

38

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

39

Husqvarna 506988601

SPRING

$

$

Not available

40

Husqvarna 725246451

SCREW

$1.99

$

Usually ships in 3-10 days

0

41

Husqvarna 544100101

TANK

$

$

Not available

42

Husqvarna 544121701

BRACKET

$7.99

$

Usually ships in 3-10 days

0

43

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 506673301

FUEL CAP

$31.99

$

Usually ships in 3-10 days

0
