R 16 - Husqvarna Swedish Riding Mower (2001-01) Deck Assy (38" Rear Discharge) Parts Diagram

Swedish Riding Mower

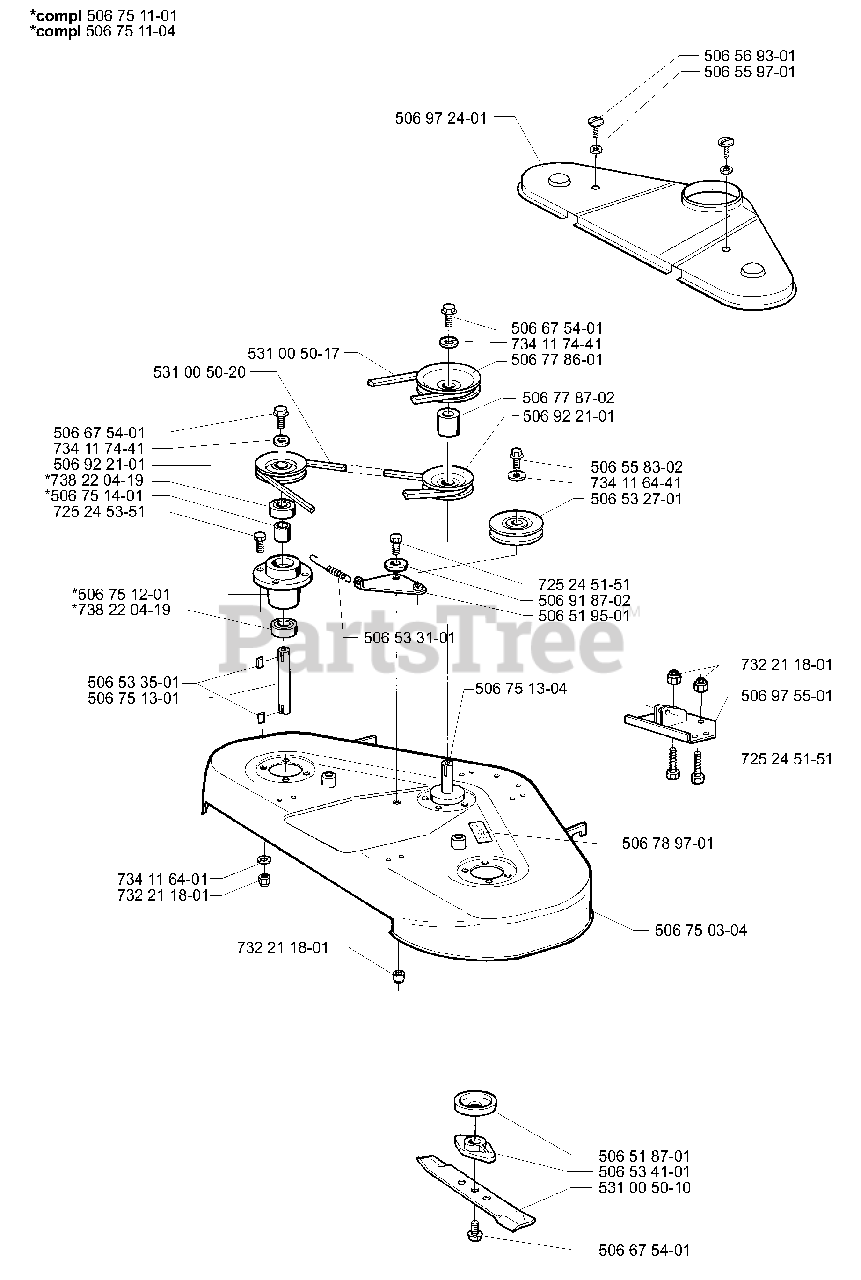

Deck Assy (38" Rear Discharge) Parts Diagram

  • Title
506751101

Husqvarna 506751101

CPL BLADEHOUSING MFG SKF, 48

Note: Complete

$

$

Not available

506751104

Husqvarna 506751104

SPINDLE

Note: Complete

$

$

Not available

506972401

$

$

Not available

506569301

Husqvarna 506569301

SCREW
(Superseded to 506982601)

$6.99

$

In Stock, Qty 6

0

506559701

$5.99

$

In Stock, only 4 left!

0

506675401

$5.99

$

In Stock, only 1 left!

0

734117441

$4.99

$

In Stock, only 2 left!

0

506778601

$56.99

$

Usually ships in 3-10 days

0

506778702

$

$

Not available

506922101

$39.99

$

In Stock, only 1 left!

0

506558302

$4.99

$

In Stock, only 1 left!

0

734116441

$4.99

$

Usually ships in 3-10 days

0

506532701

$45.99

$

In Stock, only 1 left!

0

531005017

Husqvarna 531005017

MAIN DECK BELT RIDER 155
(Superseded to 589530601)

$66.99

$

In Stock, only 4 left!

0

531005020

Husqvarna 531005020

BELT
(Superseded to 589534001)

$

$

Not available

506675401

$5.99

$

In Stock, only 1 left!

0

734117441

$4.99

$

In Stock, only 2 left!

0

506922101

$39.99

$

In Stock, only 1 left!

0

738220419

Husqvarna 738220419

BALL-BEARING 6204-2RS

$17.99

$

In Stock, only 2 left!

0

506751401

$

$

Not available

725245351

Husqvarna 725245351

SCREW M6S 8X25
(Superseded to 725245371)

$5.99

$

Usually ships in 3-10 days

0

506751201

Husqvarna 506751201

BEARING HOUSING
(Superseded to 535413401)

$

$

Not available

738220419

Husqvarna 738220419

BALL-BEARING 6204-2RS

$17.99

$

In Stock, only 2 left!

0

506533501

$6.49

$

Usually ships in 3-10 days

0

506751301

$

$

Not available

506533101

$11.99

$

Usually ships in 3-10 days

0

506751304

$

$

Not available

725245151

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

506918702

Husqvarna 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

506519501

Husqvarna 506519501

BELT TENSIONING ARM
(Superseded to 586966601)

$91.99

$

Usually ships in 3-10 days

0

732211801

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506975501

$

$

Not available

725245151

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

506789701

$

$

Not available

506750304

Husqvarna 506750304

HOUSING, CPL

$

$

Not available

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

732211801

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

732211801

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

506518701

Husqvarna 506518701

BEARING COVER

$

$

Not available

506534101

Husqvarna 506534101

BLADE BOSS

$

$

Not available

531005010

Husqvarna 531005010

RP RIDER BLADE 14 PRO/16
(Superseded to 535420310)

$

$

Not available

506675401

$5.99

$

In Stock, only 1 left!

0
