R 16 (965161601) - Husqvarna Swedish Riding Mower (2010-07) PEDALS Parts Diagram

Swedish Riding Mower

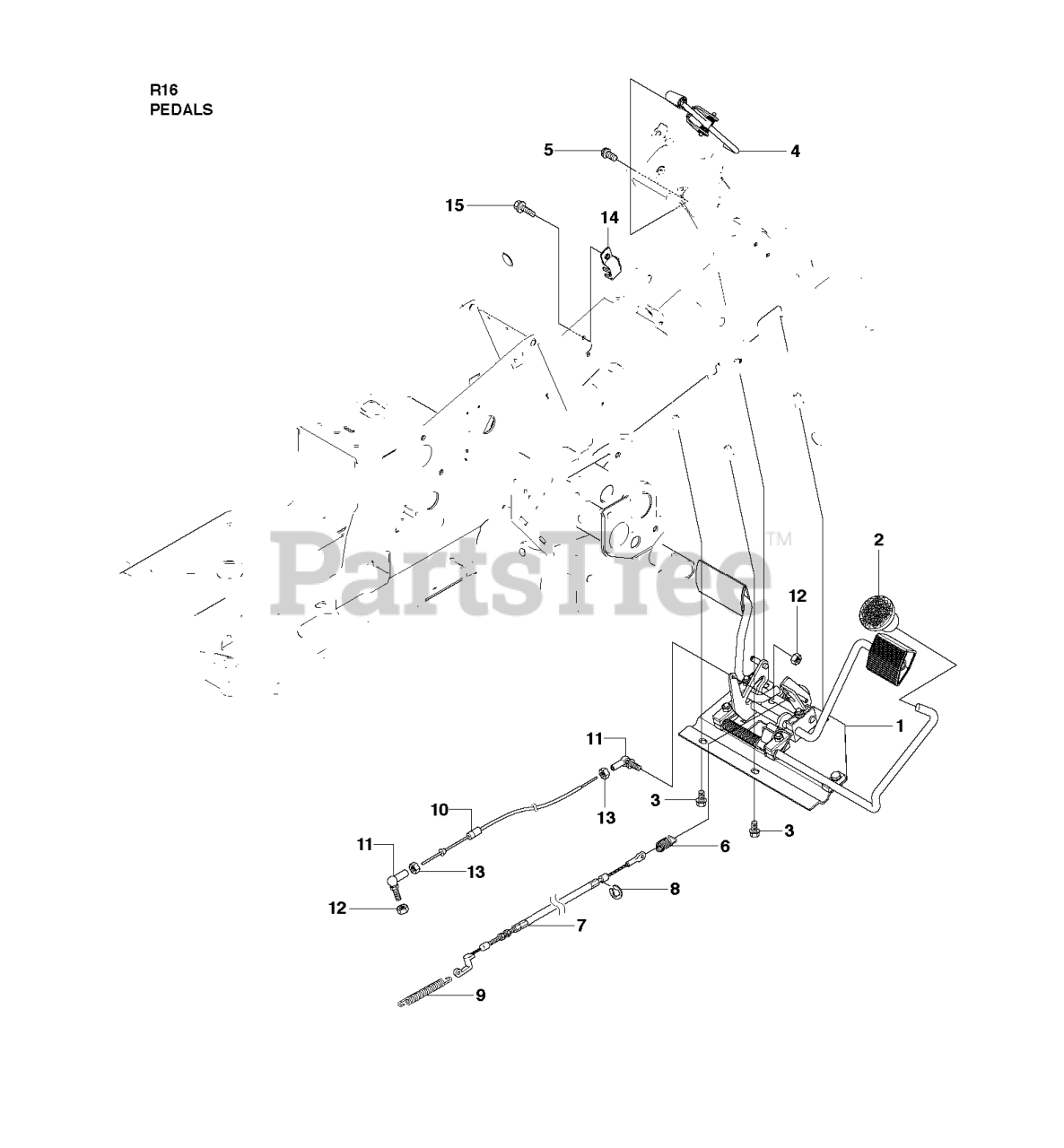

PEDALS Parts Diagram

  • Title

12

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

11

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

3

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 544403101

BRAKE LEVER ASSY

$

$

Not available

8

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 8

0

13

Husqvarna 731231401

NUT

$2.49

$

Usually ships in 3-10 days

0

5

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 522430801

BRACKET

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506946301

SPRING

$9.49

$

In Stock, only 1 left!

0

1

Husqvarna 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$159.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574411101

CONTROL CABLE
(Superseded to 582152001)

$120.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506535603

SPRING

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 535473701

KNOB
(Superseded to 586727401)

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506992701

BRAKE WIRE

$53.99

$

Usually ships in 3-10 days

0

15

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0
