R 155 - Husqvarna Swedish Riding Mower (2006-01) Chassis Parts Diagram

Swedish Riding Mower

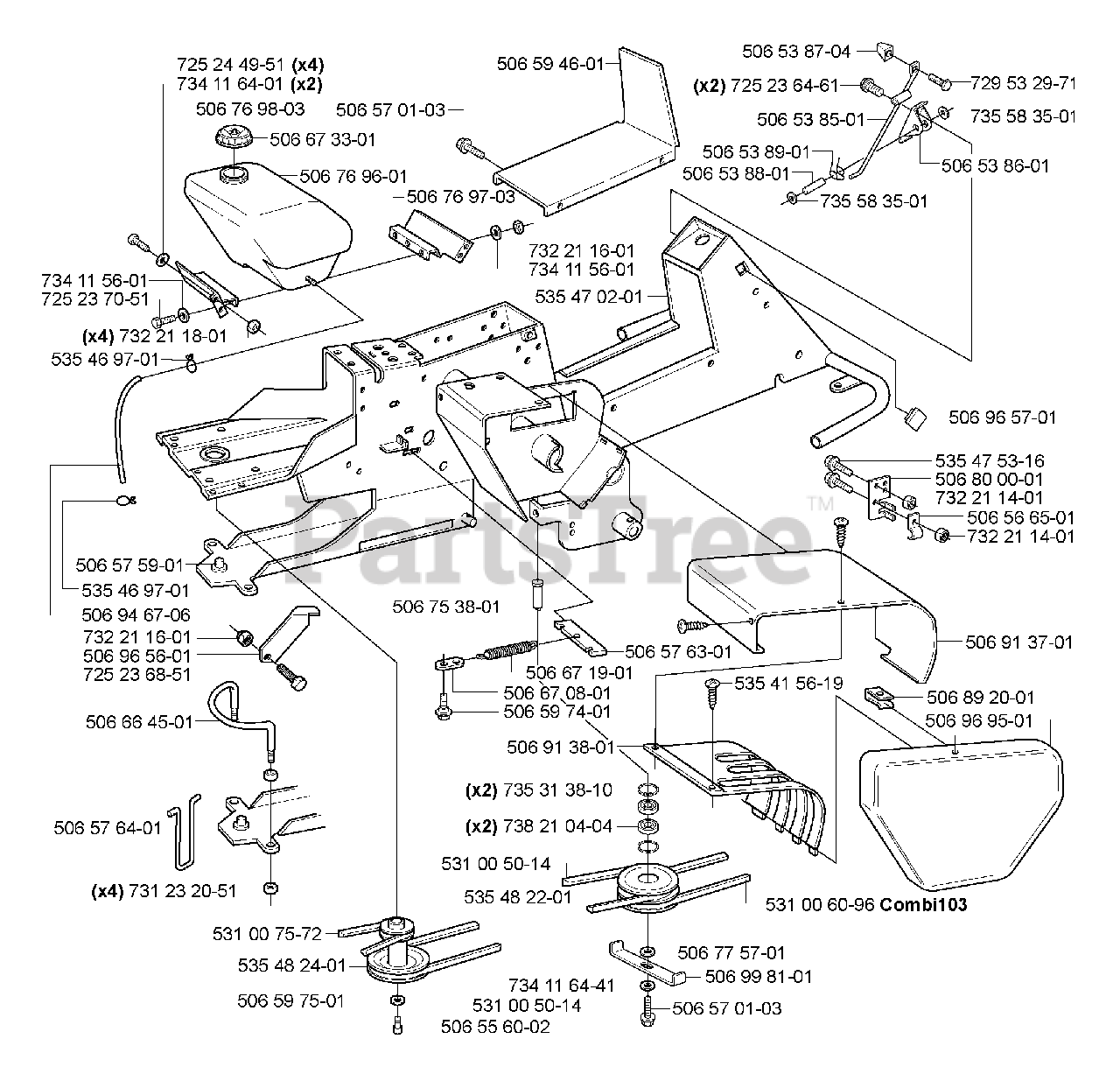

Chassis Parts Diagram

  • Title
506538501

$

$

Not available

506538601

$

$

Not available

506538704

$

$

Not available

506538801

$

$

Not available

506538901

$

$

Not available

506556002

$6.99

$

Usually ships in 3-10 days

0

506566501

$3.49

$

Usually ships in 3-10 days

0

506570103

$4.99

$

Usually ships in 3-10 days

0

506575901

Husqvarna 506575901

SHAFT PIVOT

$

$

Not available

506576301

Husqvarna 506576301

SPRING BRACKET

$

$

Not available

506576401

$

$

Not available

506594601

Husqvarna 506594601

CENTER PANEL

$

$

Not available

506597401

$6.99

$

In Stock, only 1 left!

0

506597501

$

$

Not available

506664501

Husqvarna 506664501

Belt Guide

$42.99

$

Usually ships in 3-10 days

0

506670801

$7.99

$

Usually ships in 3-10 days

0

506671901

$40.99

$

In Stock, only 4 left!

0

506673301

$31.99

$

Usually ships in 3-10 days

0

506753801

$

$

Not available

506769601

$

$

Not available

506769703

$

$

Not available

506769803

$

$

Not available

506775701

$5.99

$

In Stock, only 1 left!

0

506800001

$

$

Not available

506892001

$

$

Not available

506913701

$

$

Not available

506913801

$

$

Not available

506946706

$

$

Not available

506965601

$

$

Not available

506965701

$

$

Not available

506969501

$

$

Not available

506998101

Husqvarna 506998101

BELT GUIDE

$

$

Not available

531005014

Husqvarna 531005014

MAIN DECK BELT - 14 PRO/16
(Superseded to 589530501)

$

$

Not available

531006096

Husqvarna 531006096

DECK BELT
(Superseded to 594978001)

$84.99

$

In Stock, only 2 left!

0

531007572

Husqvarna 531007572

BELT
(Superseded to 589531201)

$34.99

$

In Stock, only 1 left!

0

$

$

Currently unavailable

535415619

$

$

Not available

535469701

$

$

Not available

535470201

$

$

Not available

535475316

$

$

Not available

535482201

$74.99

$

Usually ships in 3-10 days

0

535482401

$79.99

$

Usually ships in 3-10 days

0

725236461

$3.49

$

Usually ships in 3-10 days

0

725236851

Husqvarna 725236851

SCREW
(Superseded to 725236871)

$4.99

$

In Stock, only 4 left!

0

725237051

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

725244951

Husqvarna 725244951

BOLT - M8X16

$3.49

$

In Stock, only 2 left!

0

729532971

$

$

Not available

731232051

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 2 left!

0

732211401

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

732211601

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

732211801

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

734115601

Husqvarna 734115601

WASHER
(Superseded to 734492601)

$

$

Not available

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

735313810

Husqvarna 735313810

RETAINING RING

$5.99

$

In Stock, only 2 left!

0

735583501

$14.99

$

Usually ships in 3-10 days

0

738210404

Husqvarna 738210404

BALL BEARING 6004-2RS1

$103.99

$

In Stock, Qty 20+

0
