R 155 AWD (965089301) - Husqvarna Swedish Riding Mower (2006-01) PEDALS Parts Diagram

Swedish Riding Mower

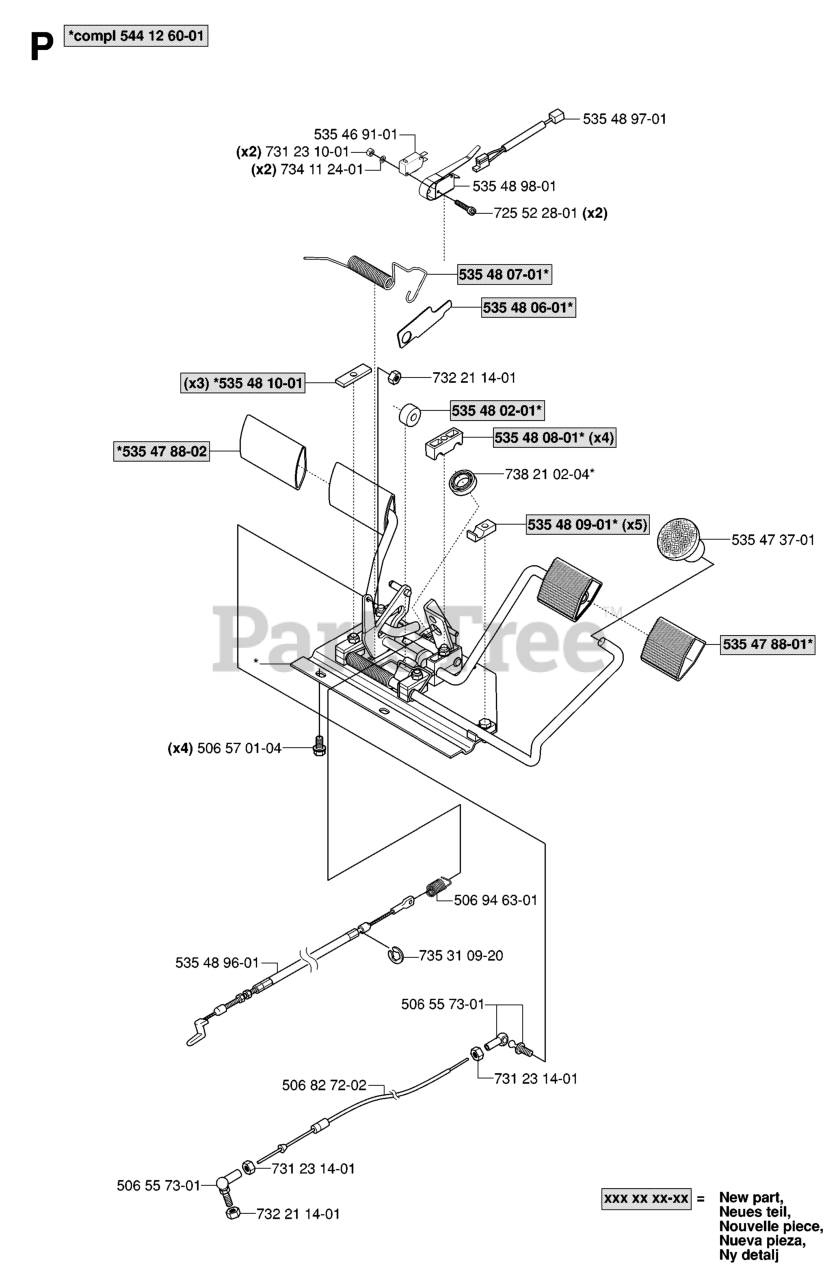

PEDALS Parts Diagram

  • Title
725 52 28-01

$

$

Not available

535 48 96-01

Husqvarna 535489601

RP WIRE
(Superseded to 576712101)

$37.99

$

In Stock, only 1 left!

0

535 48 98-01

Husqvarna 535489801

LEAF SPRING

$

$

Not available

731 23 14-01

$2.49

$

In Stock, Qty 8

0

535 48 09-01

Husqvarna 535480901

SUPPORT
(Superseded to 506954101)

$6.99

$

Usually ships in 3-10 days

0

506 82 72-02

Husqvarna 506827202

%WIRE
(Superseded to 582152001)

$120.99

$

Usually ships in 3-10 days

0

732 21 14-01

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

535 48 07-01

Husqvarna 535480701

SPRING
(Superseded to 535459501)

$9.49

$

Usually ships in 3-10 days

0

731 23 10-01

Husqvarna 731231001

NUT M6M M3

$3.99

$

Usually ships in 3-10 days

0

535 47 88-02

Husqvarna 535478802

PEDAL RUBBER, SF
(Superseded to 586966402)

$17.99

$

In Stock, only 3 left!

0

506 55 73-01

Husqvarna 506557301

CONNECTOR
(Superseded to 578776801)

$11.99

$

In Stock, only 1 left!

0

535 48 10-01

Husqvarna 535481001

PLATE
(Superseded to 506804101)

$6.99

$

Usually ships in 3-10 days

0

535 48 08-01

Husqvarna 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$7.99

$

Usually ships in 3-10 days

0

535 48 02-01

Husqvarna 535480201

ROLLER
(Superseded to 535459901)

$

$

Not available

738 21 02-04

Husqvarna 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

535 48 06-01

Husqvarna 535480601

PLATE
(Superseded to 535459601)

$

$

Not available

535 46 91-01

Husqvarna 535469101

%BRAKER
(Superseded to 574316001)

$14.99

$

In Stock, only 1 left!

0

735 31 09-20

$7.49

$

In Stock, Qty 7

0

544 12 60-01

Husqvarna 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$159.99

$

Usually ships in 3-10 days

0

535 47 37-01

Husqvarna 535473701

KNOB
(Superseded to 586727401)

$11.99

$

Usually ships in 3-10 days

0

734 11 24-01

Husqvarna 734112401

WASHER BRB 3.2X7

$2.99

$

Usually ships in 3-10 days

0

535 47 88-01

Husqvarna 535478801

PEDAL RUBBER
(Superseded to 586966401)

$17.99

$

In Stock, only 2 left!

0

506 94 63-01

$9.49

$

In Stock, only 1 left!

0

535 48 97-01

Husqvarna 535489701

CABLE ASSY

$

$

Not available

506 57 01-04

$6.49

$

In Stock, only 1 left!

0
