R 152 SV SW (961410064-05) - Husqvarna Walk-Behind Mower (2009-11) Frame Parts Diagram

Walk-Behind Mower

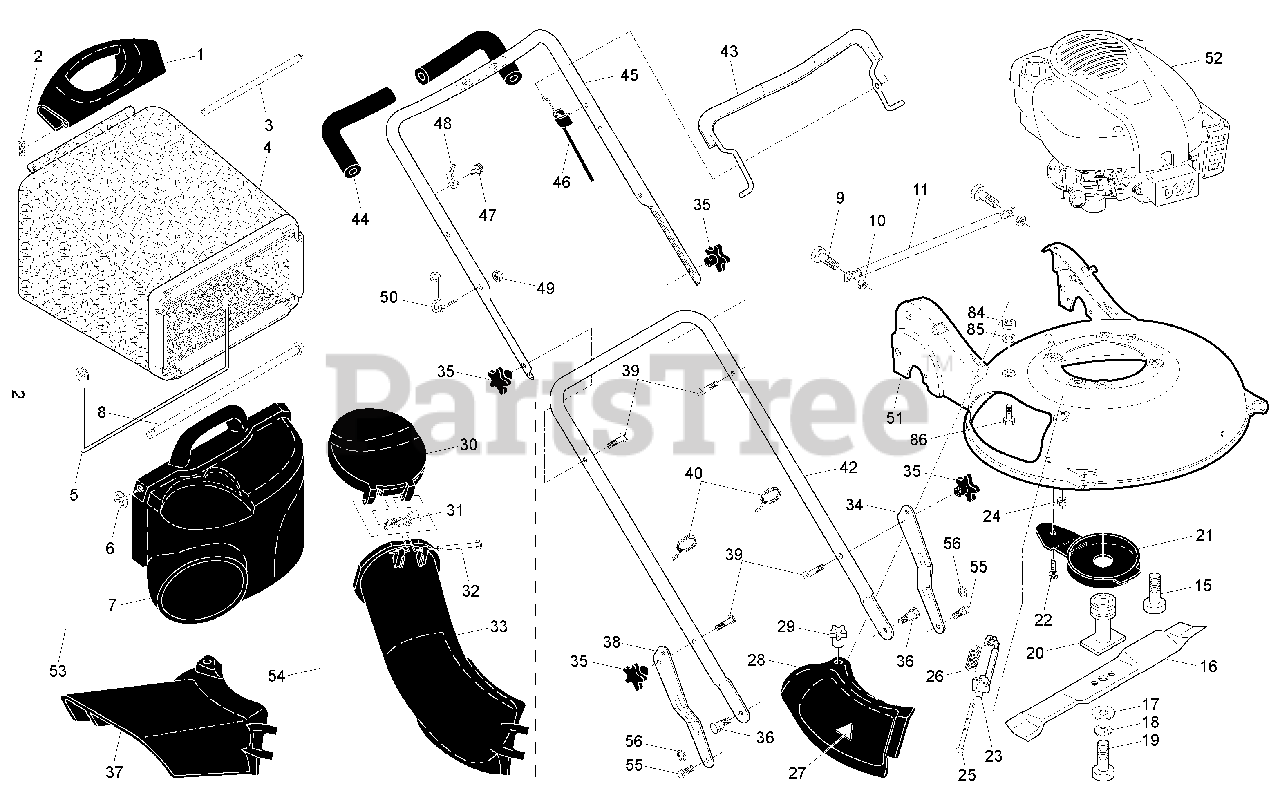

Frame Parts Diagram

  • Title

1

Husqvarna 532190582

Handle, Grassbag, Rear

$14.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532065322

Hairpin Cotter

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532183483

Rod, Rear Handle, Grassbag

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532401898

Grassbag

$

$

Currently unavailable

5

Husqvarna 532188506

Frame, Grassbag

$27.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000014

E-Ring

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532190581

Door, Grassbag
(Superseded to 532188498)

$50.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532183479

Rod, Pivot

$15.99

$

Usually ships in 3-10 days

0

9

Husqvarna 872140405

Bolt, Carriage 1/4-20

$7.49

$

In Stock, Qty 7

0

10

Husqvarna 873800400

Nut, Hex, Nylock 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532190692

Foot Guard
(Superseded to 532188359)

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532150406

Bolt, Engine Mounting

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532415076

Blade, 21"

$

$

Currently unavailable

17

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 532850263

Washer, Lock
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

19

Husqvarna 532191760

Bolt, Hex Head, Grade 8

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 532186766

Adapter, Blade

$40.99

$

In Stock, only 1 left!

0

21

Husqvarna 532190516

Debris Shield
(Superseded to 532188510)

$12.99

$

Usually ships in 3-10 days

0

22

Husqvarna 817600406

Screw, Hex Head, Serrated

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532183609

Mounting Bracket, Mulcher Door

$

$

Not available

24

Husqvarna 532191730

Nut, Hex

$7.49

$

In Stock, Qty 5

0

25

Husqvarna 532183445

Rod, Hinge

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532183446

Spring, Mulcher Door

$7.49

$

In Stock, only 4 left!

0

27

Husqvarna 532182166

Decal, Danger
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532190515

Mulcher Door
(Superseded to 532188507)

$

$

Not available

29

Husqvarna 532183447

Knob

$

$

Not available

30

Husqvarna 532190580

Door, Discharge Chute

$17.99

$

In Stock, only 1 left!

0

31

Husqvarna 532183478

Spring, Door, Discharge Chute

$7.99

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

Rod, Door, Discharge Chute

$7.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532190578

Discharge Chute, Plastic
(Superseded to 532188504)

$

$

Not available

34

Husqvarna 532190619

Adjustment Bracket, Lower Handle, LH
(Superseded to 532187063)

$

$

Not available

35

Husqvarna 532182398

Knob, Star

$7.49

$

In Stock, only 3 left!

0

36

Husqvarna 532194187

Bolt, Shoulder

$7.49

$

In Stock, only 3 left!

0

37

Husqvarna 532185996

Deflector, Discharge

$

$

Not available

38

Husqvarna 532190621

Adjustment Bracket, Lower Handle, RH

$

$

Not available

39

Husqvarna 532191574

Bolt, Handle

$6.99

$

In Stock, only 2 left!

0

40

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

Handle Assembly, Lower

$31.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532426812

Bail, Control

$

$

Not available

44

Husqvarna 532182748

Grip, Foam

$

$

Not available

45

Husqvarna 532186296

Handle Assembly, Upper

Note: (Includes Foam Grip)

$54.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532408885

Cable, Engine Zone Control
(Superseded to 583314001)

$15.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 5

0

48

Husqvarna 532430034

Bracket, Upstop

$6.99

$

In Stock, only 3 left!

0

49

Husqvarna 532132004

Nut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

50

Husqvarna 532188501

Rope Guide

$15.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532424678

Kit, Housing

$

$

Currently unavailable

52

Engine, Briggs & Stratton, Model Number 100602- 2980-EA (Order parts from Engine Manufacturer)

$

$

Not available

53

Husqvarna 532401896

Grassbag Assembly, Complete

$

$

Currently unavailable

54

Husqvarna 532189014

Discharge Chute Assembly, Complete

$

$

Not available

55

Husqvarna 532194192

Stud, Shoulder T45

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532400100

Locknut, Hex
(Superseded to 532438130)

$

$

Not available

85

Husqvarna 532850263

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

86

Husqvarna 872110407

Bolt, Carriage 1/4-20 x 7/8

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 532182134

Decal, Warning
(Superseded to 583119801)

Note: (not shown)

$14.99

$

Usually ships in 3-10 days

0

Husqvarna 532417939

Operator's Manual, European

$

$

Currently unavailable

Husqvarna 532417940

Operator's Manual, Scandinavian

$

$

Currently unavailable

Husqvarna 532417941

Opeator's Manual, East Bloc

$

$

Currently unavailable

Husqvarna 532417942

Opeator's Manual, Baltic

$

$

Currently unavailable
