R 152 SV (961410134-05) - Husqvarna Walk-Behind Mower (2010-02) DRIVE Parts Diagram

Walk-Behind Mower

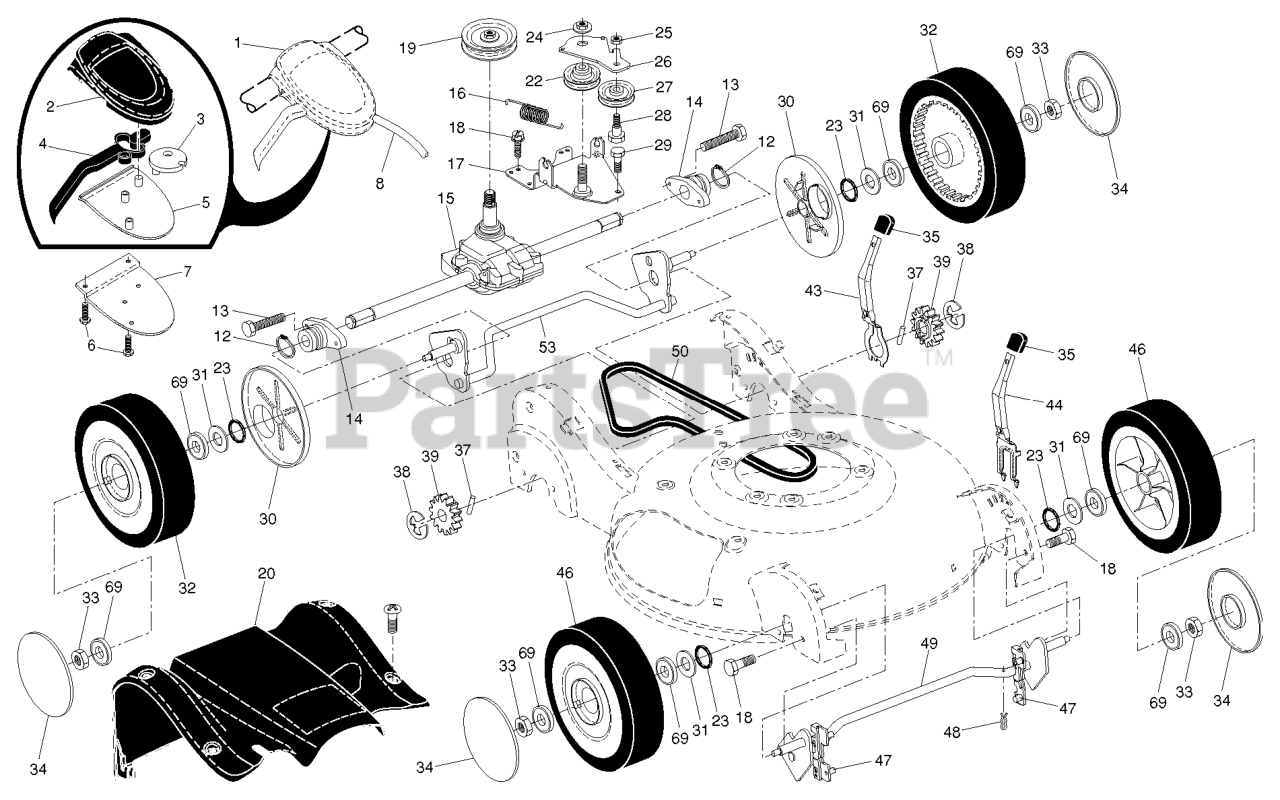

DRIVE Parts Diagram

  • Title

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

50

Husqvarna 532408031

BELT, DRIVE

$

$

Not available

34

Husqvarna 532183442

HUBCAP.WHEEL.5.SPOKE.SILVER

$5.99

$

In Stock, only 2 left!

0

12

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 532193791

PULLEY.IDLER.V-BELT

$

$

Not available

32

Husqvarna 532192622

WHEEL.9X2.25.LP.TIGER.BLACK

$79.99

$

In Stock, only 2 left!

0

23

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

15

Husqvarna 532419211

TRANSMISSION.21.HV.RWGD.AW/EZ

$

$

Not available

18

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

16

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

69

Husqvarna 532751068

BEARING.8".WHEEL

$8.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532425662

LEVER.BLACK

$14.99

$

In Stock, only 4 left!

0

30

Husqvarna 532183457

DUST COVER, WHEEL

$

$

Not available

20

Husqvarna 532432677

COVER.DR.ASM.408006X418.CE

$60.99

$

In Stock, only 1 left!

0

46

Husqvarna 532192232

WHEEL.9X2.25.LP.TIGER.BLK

$

$

Not available

24

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

28

Husqvarna 532160829

SHOULDER BOLT

$7.49

$

In Stock, only 2 left!

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532408005

BRACKET, GEAR CASE / DRIVE

$15.99

$

In Stock, only 1 left!

0

49

Husqvarna 532196469

SHAFT FRONT
(Superseded to 532192431)

$46.99

$

Usually ships in 3-10 days

0

38

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532416740

SHAFT.ASM.REAR.TORQUE.HV.BZP

$40.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532408027

BEARING / AXLE SUPPORT

$

$

Not available

43

Husqvarna 532190520

LEVER, SELECTOR, HEIGHT, REAR
(Superseded to 532188508)

$9.49

$

Usually ships in 3-10 days

0

29

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532411664

COVER BOTTOM AUTO WLK CONTROL
(Superseded to 532406261)

$24.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532190518

LEVER, SELECTOR, HEIGHT, FRONT
(Superseded to 532188509)

$

$

Not available

47

Husqvarna 532183438

BUSHING.FRONT.TORQUE.SHAFT

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

27

Husqvarna 532166043

IDLER PULLEY

$31.99

$

In Stock, only 1 left!

0

2

Husqvarna 532411673

COVER TOP AUTO WALK CONTROL
(Superseded to 532406260)

$

$

Not available

1

Husqvarna 532425665

Drive Control Assembly, Complete

$

$

Currently unavailable

39

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

31

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

48

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532197011

ASM.CABLE.

$53.99

$

In Stock, only 1 left!

0

13

Husqvarna 532194186

SCREW.1/4-20X21/4.HEX.

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$9.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532416736

ARM.IDLER.BZP

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532425242

KNOB.SELECTOR.SPRING.BLACK(3 2

$6.49

$

In Stock, only 1 left!

0
