R 152 SV (961410134-04) - Husqvarna Walk-Behind Mower (2009-11) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

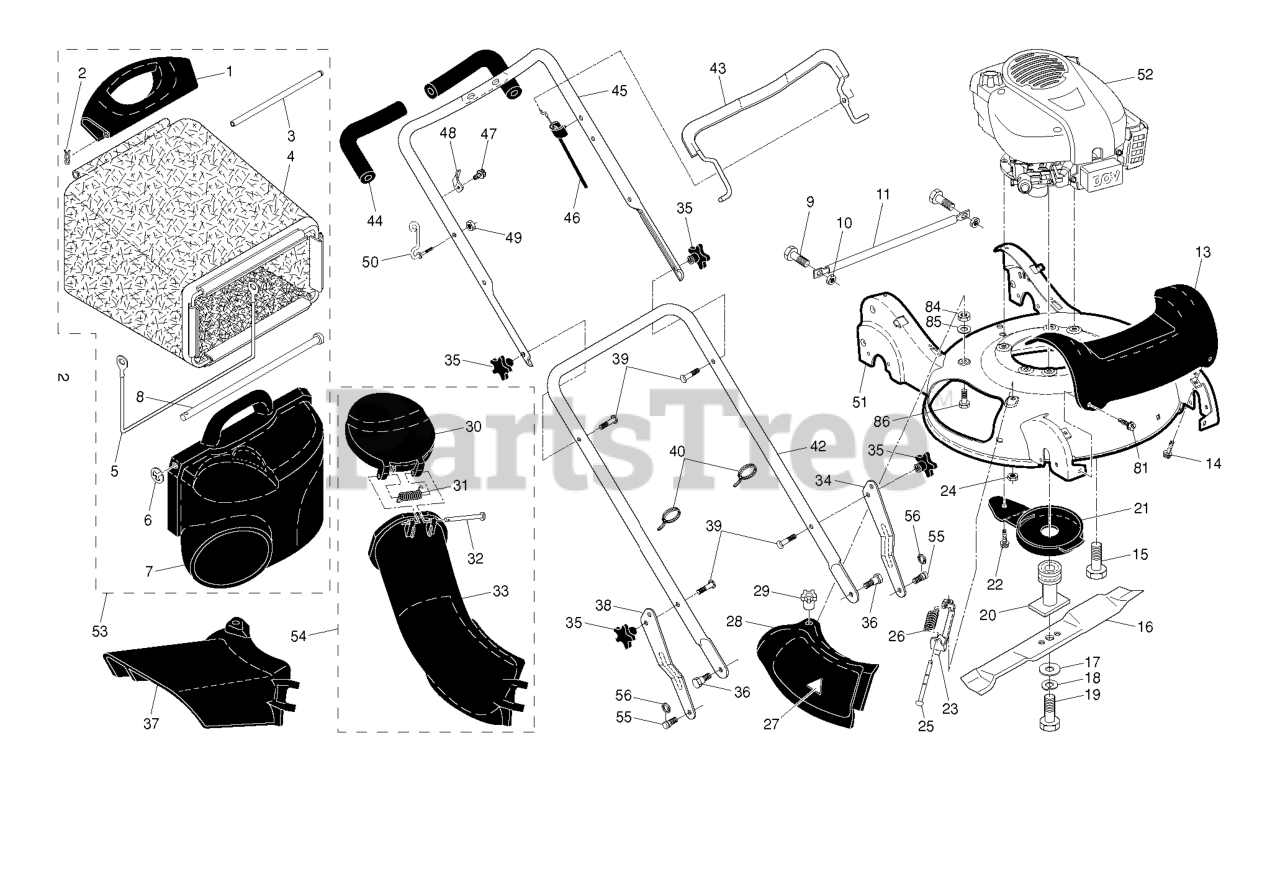

FRAME & ENGINE Parts Diagram

  • Title
43

Husqvarna 532426812

BAIL.CONTROL.MZR.BS.ORANGE

$

$

Not available

42

Husqvarna 532187096

HANDLE.LOWER.GREY

$31.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532186766

ADAPTER.BLADE

$40.99

$

In Stock, only 1 left!

0

81

Husqvarna 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 532185996

GUARD.CLIP.ON.21.HV.GRAY

$

$

Not available

$7.99

$

In Stock, only 1 left!

0

56

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

$7.49

$

In Stock, Qty 7

0

25

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532188501

GUIDE.ROPE.WALK.MOWER

$15.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 532183479

ROD, PIVOT

$15.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532190515

MULCHER DOOR
(Superseded to 532188507)

$

$

Not available

11

Husqvarna 532190692

TUBE, REAR SKIRT
(Superseded to 532188359)

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532199422

SCREW, HEX WASHER HEAD

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

24

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

32

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532190619

ADJUSTMENT BRACKET, LOWER LH
(Superseded to 532187063)

$

$

Not available

23

Husqvarna 532183609

BRACKET.ASM.HINGE

$

$

Not available

54

Husqvarna 532189014

CHUTE.LOWER.ASM.WALK.MOWER

$

$

Not available

30

Husqvarna 532190580

CHUTE.DOOR.21.HV.H-GRAY

$17.99

$

In Stock, only 1 left!

0

19

Husqvarna 532191760

BOLT.HD.HEAD.3/8-24X2.50 (2 2)

$6.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 5

0

22

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532183483

ROD.REAR.HANDLE.YELLOW

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532190516

DEBRIS SHEILD
(Superseded to 532188510)

$12.99

$

Usually ships in 3-10 days

0

86

Husqvarna 872110407

BOLT.CARRIAGE.1/4-20 X 7/8

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

52

000000000

Note: B&S 100602-2980-EA

$

$

Not available

1

Husqvarna 532190582

HANDLE.GRASSBAG.REAR.H-GRAY

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532415076

Blade, 21"

$

$

Currently unavailable

4

$

$

Currently unavailable

84

Husqvarna 532400100

NUT, HEX
(Superseded to 532438130)

$

$

Not available

36

Husqvarna 532194187

SCREW.5/16X.680.TRIM.H

$7.49

$

In Stock, only 3 left!

0

7

Husqvarna 532190581

DOOR, GRASSBAG
(Superseded to 532188498)

$50.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 3 left!

0

53

Husqvarna 532401896

Grassbag Assembly, Complete

$

$

Currently unavailable

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532190621

BRACKET.ADJ.LOWER.HDL.RT.GREY

$

$

Not available

46

Husqvarna 532408885

CABLE.MZR.SNAP-IN
(Superseded to 583314001)

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532188506

FRAME, GRASSBAG

$27.99

$

In Stock, only 1 left!

0

51

Husqvarna 532420431

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 532183446

SPRING.MULCH.DOOR

$7.49

$

In Stock, only 4 left!

0

48

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

55

Husqvarna 532194192

STUD.SHOULDER.T45.BZP

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

29

Husqvarna 532183447

KNOB.MULCH.DOOR

$

$

Not available

15

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532190578

DISCHARGE CHUTE PLASTIC
(Superseded to 532188504)

$

$

Not available

13

Husqvarna 532414958

COVER.FRONT.21.HV.H-GRAY

$

$

Not available

85

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

45

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

$54.99

$

Usually ships in 3-10 days

0
