R 152 (954170244-01) - Husqvarna Walk-Behind Mower (2005-02) GEAR CASE Parts Diagram

Walk-Behind Mower

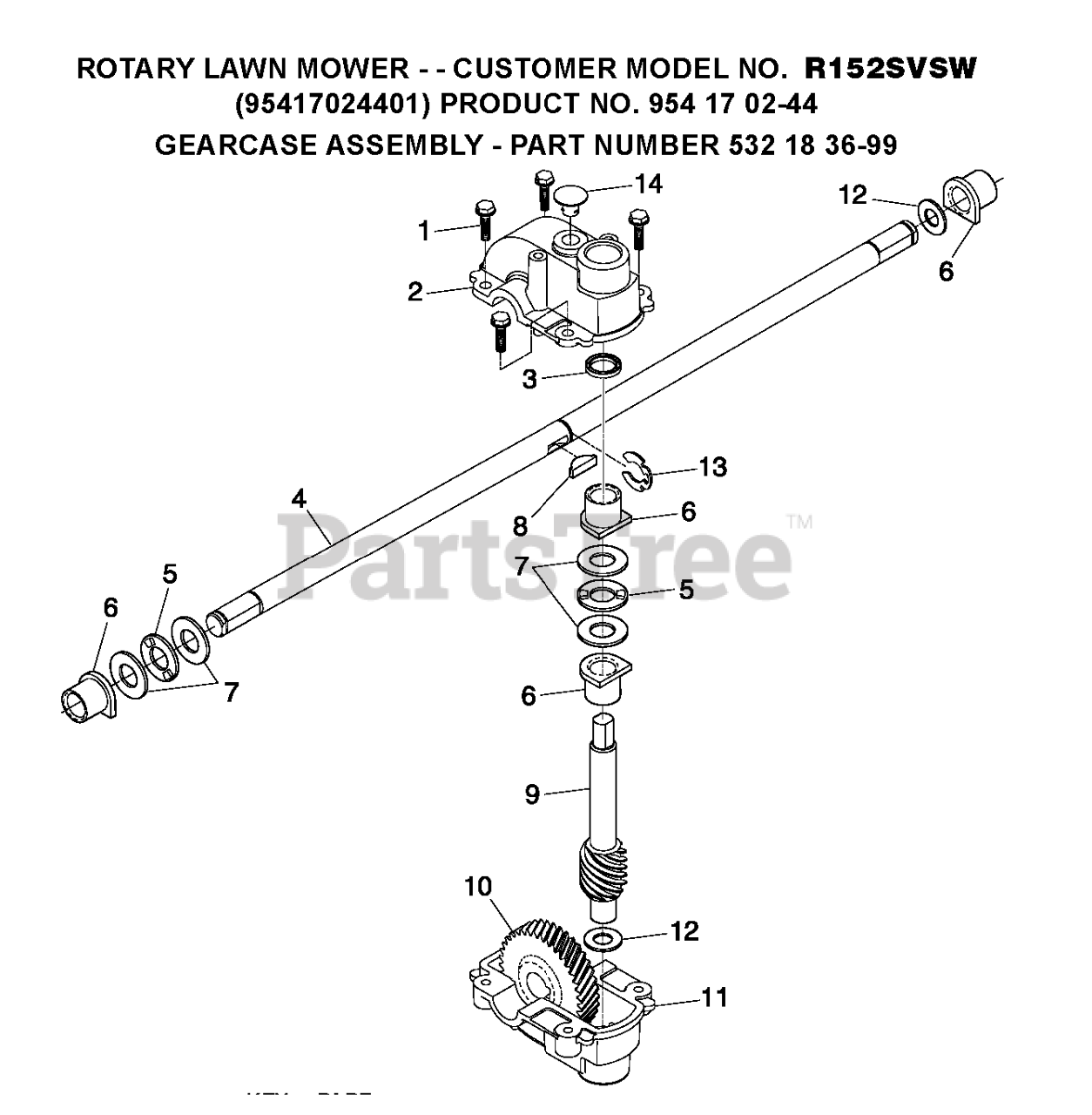

GEAR CASE Parts Diagram

  • Title

- -

Husqvarna 532750369

GREASE
(Superseded to 585517301)

$

$

Not available

1

Husqvarna 817541011

Screw, Hex Washer Head #10-24 x .668

$

$

Not available

8

Husqvarna 532850848

HI PRO KEY

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532160672

GEAR CASE, UPPER

$

$

Not available

13

Husqvarna 812000039

KLIP RING

$6.49

$

In Stock, Qty 7

0

11

Husqvarna 532160673

GEAR CASE, LOWER
(Superseded to 532160676)

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532160817

WASHER, THRUST

$4.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532184208

GEARCASE KIT W/ GREASE
(Superseded to 532414975)

Note: (Includes Grease)

$113.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532057072

SEAL

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532086447

PLUG.AUGER.GEAR.BOX.SNOW

$

$

Not available

10

Husqvarna 532160679

GEAR, HELICAL

$31.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

6

Husqvarna 532077881

BEARING

$30.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532160818

BEARING, NEEDLE, THRUST

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532183908

SHAFT.DRIVE.HI-VAC.EZ

$

$

Not available

9

Husqvarna 532184134

SHAFT.WORM.HI-VAC

$

$

Not available
