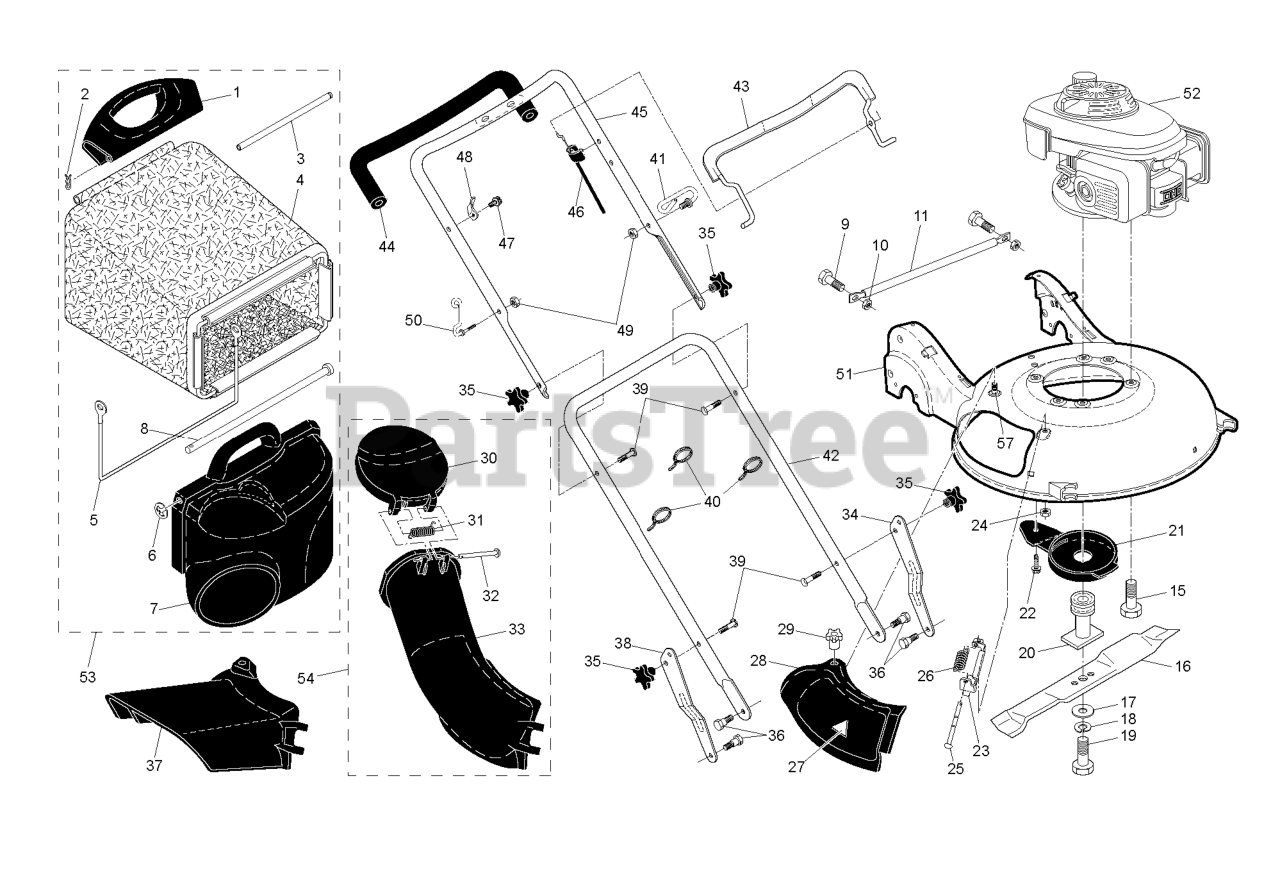

R 152 (954170244-01) - Husqvarna Walk-Behind Mower (2005-02) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

FRAME & ENGINE Parts Diagram

  • Title

11

Husqvarna 532184331

TUBE

$9.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532183483

ROD.REAR.HANDLE.YELLOW

$6.49

$

In Stock, only 1 left!

0

-

Husqvarna 532199559

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 532183446

SPRING.MULCH.DOOR

$7.49

$

In Stock, only 4 left!

0

-

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

46

Husqvarna 532164322

RB ENGINE ZONE CONTROL CABLE
(Superseded to 532424983)

$17.99

$

In Stock, Qty 8

0

34

Husqvarna 532190619

ADJUSTMENT BRACKET, LOWER LH
(Superseded to 532187063)

$

$

Not available

8

Husqvarna 532183479

ROD, PIVOT

$15.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532186298

BAIL CONTROL
(Superseded to 532426812)

$

$

Not available

16

Husqvarna 532165833

21" PUSH BLADE
(Superseded to 532406712)

$20.99

$

In Stock, only 2 left!

0

53

Husqvarna 532194087

NEEDS DESCRIPTION

$

$

Currently unavailable

32

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532190515

MULCHER DOOR
(Superseded to 532188507)

$

$

Not available

38

Husqvarna 532190621

BRACKET.ADJ.LOWER.HDL.RT.GREY

$

$

Not available

-

Husqvarna 532199545

NEEDS DESCRIPTION

$

$

Currently unavailable

33

Husqvarna 532190578

DISCHARGE CHUTE PLASTIC
(Superseded to 532188504)

$

$

Not available

7

Husqvarna 532190581

DOOR, GRASSBAG
(Superseded to 532188498)

$50.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532183465

SHOULDER BOLT
(Superseded to 532194187)

$7.49

$

In Stock, only 3 left!

0

37

Husqvarna 532185996

GUARD.CLIP.ON.21.HV.GRAY

$

$

Not available

23

Husqvarna 532195997

NEEDS DESCRIPTION

$

$

Currently unavailable

57

Husqvarna 532188634

STUD.INSERT

$

$

Not available

58

Husqvarna 532192770

CLIP.CABLE.BLK
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

50

Husqvarna 532188501

GUIDE.ROPE.WALK.MOWER

$15.99

$

Usually ships in 3-10 days

0

6

Husqvarna 812000014

E-RING

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

-

Husqvarna 532197006

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532190580

CHUTE.DOOR.21.HV.H-GRAY

$17.99

$

In Stock, only 1 left!

0

52

NEEDS DESCRIPTION

Note: Engine, Honda, Model Number GCV160 (Order parts from Engine Manufacturer)

$

$

Not available

24

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

1

Husqvarna 532190582

HANDLE.GRASSBAG.REAR.H-GRAY

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532186766

ADAPTER.BLADE

$40.99

$

In Stock, only 1 left!

0

31

Husqvarna 532183478

SPRING

$7.99

$

In Stock, only 1 left!

0

22

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

Note: (Includes Foam Grip)

$54.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532194086

NEEDS DESCRIPTION

$

$

Currently unavailable

48

Husqvarna 532125203

BRACKET
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

5

Husqvarna 532188506

FRAME, GRASSBAG

$27.99

$

In Stock, only 1 left!

0

25

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532183447

KNOB.MULCH.DOOR

$

$

Not available

21

Husqvarna 532190516

DEBRIS SHEILD
(Superseded to 532188510)

$12.99

$

Usually ships in 3-10 days

0

-

Husqvarna 532197007

NEEDS DESCRIPTION

$

$

Currently unavailable

54

Husqvarna 532189014

CHUTE.LOWER.ASM.WALK.MOWER

$

$

Not available

42

Husqvarna 532187096

HANDLE.LOWER.GREY

$31.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532191760

BOLT.HD.HEAD.3/8-24X2.50 (2 2)

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 872140405

BOLT T

$7.49

$

In Stock, Qty 7

0

49

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

10

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

47

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

18

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

51

Husqvarna 532190281

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$7.49

$

In Stock, only 1 left!

0
