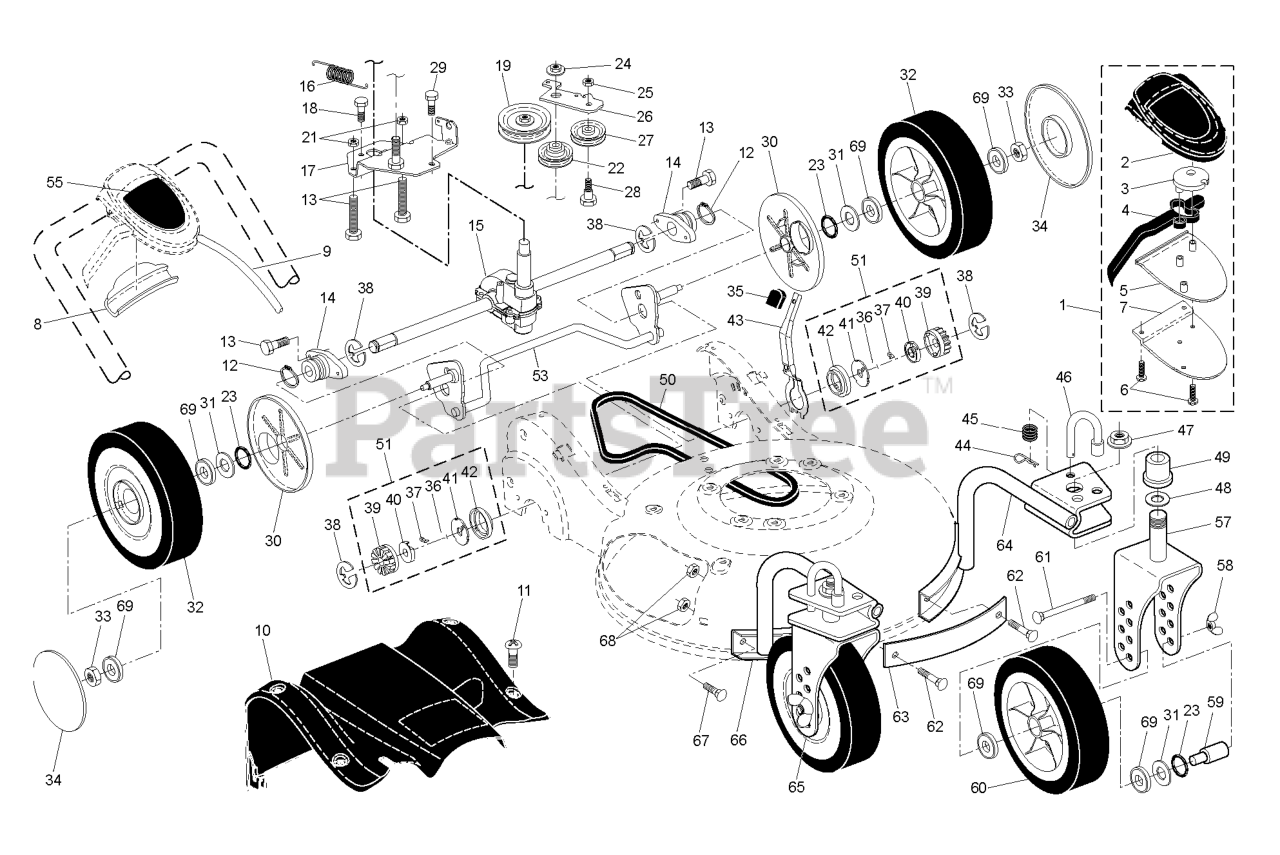

R 152 (954170244-01) - Husqvarna Walk-Behind Mower (2005-02) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

48

Husqvarna 532188906

WASHER.FLAT.1/2

$7.99

$

In Stock, only 2 left!

0

29

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532189378

DECAL, DRIVE

$36.99

$

In Stock, only 1 left!

0

14

Husqvarna 532187120

BEARING.SUPPORT.ASSEM

$

$

Not available

13

Husqvarna 532183450

RP SCREW
(Superseded to 532194186)

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532187684

BRACKET CASTER WHEEL, RH
(Superseded to 532188731)

$121.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532411673

COVER TOP AUTO WALK CONTROL
(Superseded to 532406260)

$

$

Not available

42

Husqvarna 532184172

SEAL.PINION

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532196542

ARM.IDLER.BZP
(Superseded to 532194123)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$9.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532175102

RETAINER, DRIVE, RH

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 532190565

COVER ASM. DRIVE
(Superseded to 532188356)

$

$

Not available

34

Husqvarna 532183695

RB HUBCAP.3-SPOKE.SILVER
(Superseded to 532183442)

$5.99

$

In Stock, only 2 left!

0

26

Husqvarna 532187098

BRACKET
(Superseded to 532195327)

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532183699

TRANSMISSION.ASM.RGD.EZ.21
(Superseded to 532414975)

$113.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532189408

RP PULLEY DRIVE
(Superseded to 532194128)

$20.99

$

In Stock, Qty 10

0

16

Husqvarna 532194124

SPRING.RETURN

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532175103

GEAR, PINION

$

$

Not available

20

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 872270528

CARRIAGE BOLT

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532188331

PINION ASSY, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

53

Husqvarna 532195995

AXLE.ASM.REAR.TORQUE.BZP
(Superseded to 532192138)

$

$

Not available

41

Husqvarna 532175104

DISC.DRIVE.21.EZ-WALK

$7.49

$

In Stock, only 1 left!

0

67

Husqvarna 532187555

BOLT

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532160829

SHOULDER BOLT

$7.49

$

In Stock, only 2 left!

0

23

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532190037

LEVER
(Superseded to 532425662)

$14.99

$

In Stock, only 4 left!

0

45

Husqvarna 532185051

SPRING

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532187097

BRACKET, DRIVE CONTROL
(Superseded to 532400723)

$

$

Not available

9

Husqvarna 532197011

ASM.CABLE.

$53.99

$

In Stock, only 1 left!

0

36

Husqvarna 532188291

SPRING, TORSION

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532186297

EZ WALK SNAP COVER PLATE

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532187263

NUT
(Superseded to 539990717)

$1.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532187683

SUPPORT TUBE ASSY, LH BLK
(Superseded to 532414070)

$125.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532187474

BOLT

$4.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532751068

BEARING.8".WHEEL

$8.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532187682

BRACKET, CASTER
(Superseded to 532188731)

$121.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532195996

BUSHING.

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532166043

IDLER PULLEY

$31.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532187248

NUT.WING.5/16-18.YELLOW

$9.49

$

In Stock, only 1 left!

0

54

Husqvarna 532188330

PINION ASSY, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

35

Husqvarna 532185994

KNOB.SELECTOR.SPRG.H-GRY (2 2)

$15.99

$

In Stock, only 3 left!

0

5

Husqvarna 532411664

COVER BOTTOM AUTO WLK CONTROL
(Superseded to 532406261)

$24.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532183688

BELT.DRIVE.EZ.WALK.HI-VAC

$

$

Not available

30

Husqvarna 532183457

DUST COVER, WHEEL

$

$

Not available

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

59

Husqvarna 532185111

SPACER

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

33

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 817541011

Screw, Hex Washer Head #10-24 x .668

$

$

Not available

1

Husqvarna 532197012

CONTROL.DR.HV.RWGD.GRY/BLU

$

$

Not available

22

Husqvarna 532193791

PULLEY.IDLER.V-BELT

$

$

Not available

60

Husqvarna 532192231

WHEEL.9X2.25.LP.JUNG.SILV.BB.1
(Superseded to 532192234)

$46.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532190520

LEVER, SELECTOR, HEIGHT, REAR
(Superseded to 532188508)

$9.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532175098

PAWL.DRIVE.21.EZ-WALK

$6.49

$

In Stock, only 2 left!

0

32

Husqvarna 532192619

WHEEL.9X2.25.PR.JUNG.BLK
(Superseded to 532192622)

$79.99

$

In Stock, only 2 left!

0

11

Husqvarna 532184571

SCREW
(Superseded to 532194188)

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532187247

NUT

$2.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532187685

SUPPORT TUBE ASSY, RH
(Superseded to 532414069)

$72.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532187467

STRAP, FRONT
(Superseded to 532188475)

$27.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532185054

ROD, LOCK

$10.99

$

In Stock, only 1 left!

0

31

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 5

0

24

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0
